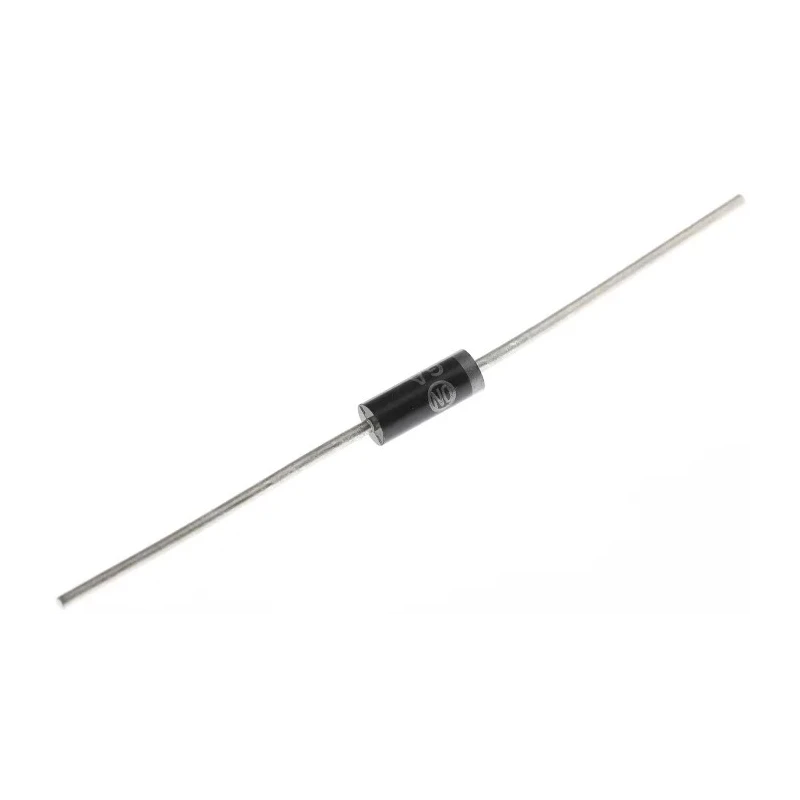

onsemi 28 V 5 W 5% Tolerance Zener Diode Single Through Hole 2-Pin DO-15 1N5362BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5362BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 50mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 28V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 6Ω |
Key Features
- Rated for maximum power dissipation of 5 watts for reliable operation.
- Axial-leaded, through-hole mounting suitable for industrial electronic assemblies.
- Features a nominal Zener voltage of 28 volts with tight regulation.
- Maintains maximum reverse leakage current of 500 nanoamps ensuring minimal leakage losses.
- Operates across a temperature range of -65°C to 200°C suitable for various environmental conditions.
- Constructed with corrosion-resistant molded Surmetic™ plastic package for durability.
- Internal silicon-oxide passivated junction offers superior stability and performance.
- Commonly used as a voltage regulator and protection device in electronic circuits.
Product Description
onsemi 1N5362BRLG is a 28 volt, 5 watt single Zener diode designed for voltage regulation applications. It features a 5% voltage tolerance and is housed in a through-hole, axial-leaded DO-15 package with 2 pins, making it suitable for mounting in industrial and commercial electronic assemblies.
The device is constructed using Surmetic™ 40 axial-leaded molded plastic, which offers excellent protection against environmental factors while providing corrosion resistance. The silicon-oxide passivated junction ensures tight voltage regulation limits and improved operating reliability.
Operating characteristics include a maximum power dissipation of 5 watts and a test current of 50 mA to maintain steady voltage regulation. Maximum reverse leakage current is very low at 500 nA, enhancing efficiency in sensitive circuits. The Zener diode can safely operate across a temperature range from -65°C to 200°C, making it robust for industrial use cases.
This Zener diode is widely used as a voltage regulator in power supplies, industrial electronics, and instrumentation systems where voltage stability is critical. Its corrosion-resistant packaging and reliable electrical characteristics enable long-term performance in demanding environments.
Single diode configuration for voltage regulation. Nominal Zener voltage of 28 volts with 5% tolerance. 5 watt maximum power dissipation rating. Through-hole mount type with DO-15 package. Test current of 50 mA ensuring precise voltage control.
Operating temperature range from -65°C to 200°C. Corrosion-resistant molded Surmetic™ plastic package. Low maximum reverse leakage current of 500 nA for energy efficiency. Axial-leaded design for easy PCB installation. Suitable for industrial, commercial, and laboratory electronic systems.
Explore more semiconductors and Zener Diodes to match your industrial, laboratory, and electronic assembly requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 28 volts, with a tolerance of 5%.
This model has a maximum power dissipation rating of 5 watts, ensuring reliable operation in various applications.
It operates across a temperature range from -65°C to 200°C, making it suitable for various environmental conditions.
This diode features a through-hole mounting type and is housed in a DO-15 package.
The maximum reverse leakage current for this model is 500 nanoamps, which helps minimize leakage losses.
The test current for this diode is 50 mA, which is necessary to maintain steady voltage regulation.
This Zener diode has 2 pins, suitable for easy installation on printed circuit boards (PCBs).
It is constructed with a corrosion-resistant molded Surmetic™ plastic package, providing durability and protection against environmental factors.
The maximum Zener impedance for this diode is 6 ohms, which contributes to its performance in voltage regulation applications.
It is commonly used as a voltage regulator and protection device in power supplies, industrial electronics, and instrumentation systems.
This model belongs to the 1N53 series of Zener diodes, which are designed for voltage regulation.
The country of origin for this diode is India.
