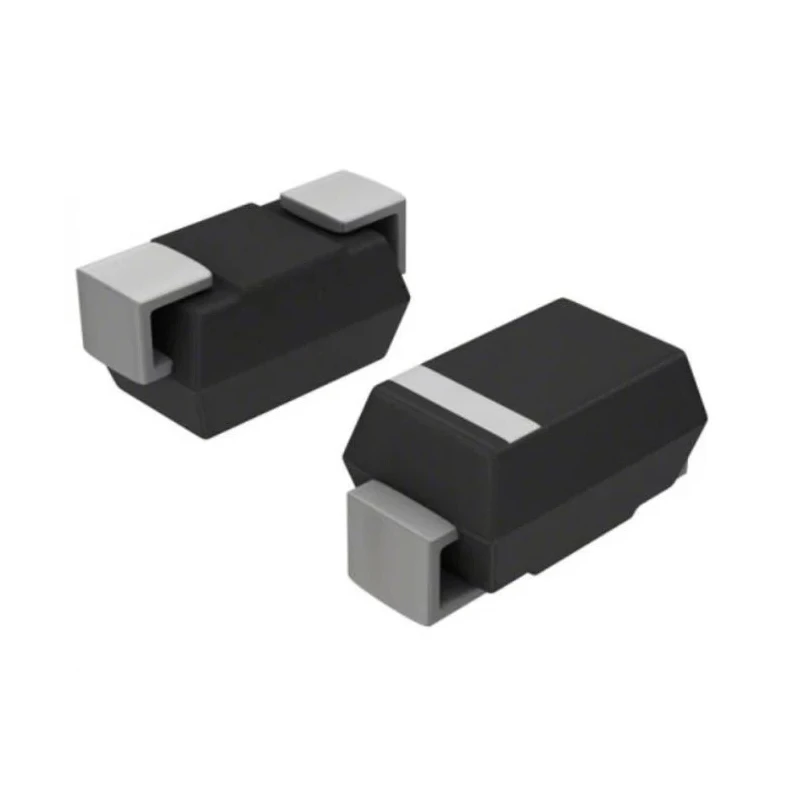

Vishay 1-Element Bi-Directional TVS Diode 1.5 kW Peak Pulse Power, 2-Pin DO-214 Package SMCJ16A-E3/57T

Vishay SMCJ16A-E3/57T is a 1-element bi-directional Transient Voltage Suppressors (TVS) diode designed to protect sensitive electronic circuits from voltage spikes and transient surges. Featuring a peak pulse power dissipation of 1.5 kW, this diode is housed in a compact 2-pin DO-214 surface mount package, making it suitable for high-density circuit board layouts.

This device operates reliably within a temperature range of -55°C to 150°C and demonstrates a minimum breakdown voltage of 17.8 V, with a maximum reverse stand-off voltage of 16 V to effectively clamp voltage surges to a safe maximum of 26 V. The diode includes Electrostatic Discharge (ESD) protection, helping safeguard sensitive electronic components from damage.

The Vishay SMCJ16A-E3/57T complies with automotive standard AEC-Q101, indicating its robustness and reliability in automotive and other demanding industrial environments.

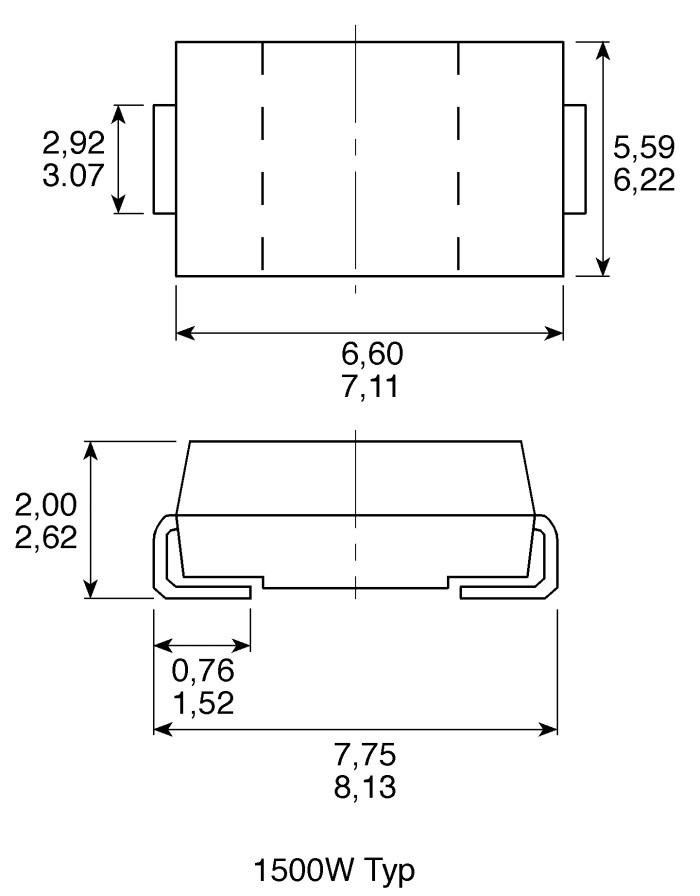

Its small form factor with dimensions: Height 2.42 mm, Length 7.11 mm, and Width 6.22 mm, enables easy integration into compact electronic designs. The diode features a very low maximum reverse leakage current of just 1 μA, which promotes energy efficiency in protected circuits.

Common applications include industrial electronics, automotive electronics, power supplies, and telecommunications equipment for protecting against transient voltage events such as lightning-induced surges or inductive load switching.

Designed for transient voltage suppression in electronic circuits. Bi-directional diode configuration for protection against both positive and negative voltage spikes. Peak pulse power dissipation of 1.5 kW suitable for demanding surge environments.

Compact DO-214 package with 2 pins, facilitating surface mount assembly. Operates within a temperature range of -55°C to 150°C. Minimum breakdown voltage of 17.8 V and maximum reverse stand-off voltage of 16 V. Clamping voltage at 26 V to limit voltage surges.

Compliant with automotive standard AEC-Q101, ensuring reliability in automotive applications. Low maximum reverse leakage current of 1 μA for energy efficiency. ESD protection included for safeguarding sensitive electronic components.

Dimensions include height 2.42 mm, length 7.11 mm, and width 6.22 mm. Explore additional Vishay TVS Diodes and semiconductor components on EnvMart for industrial, automotive, and electronic protective solutions.
