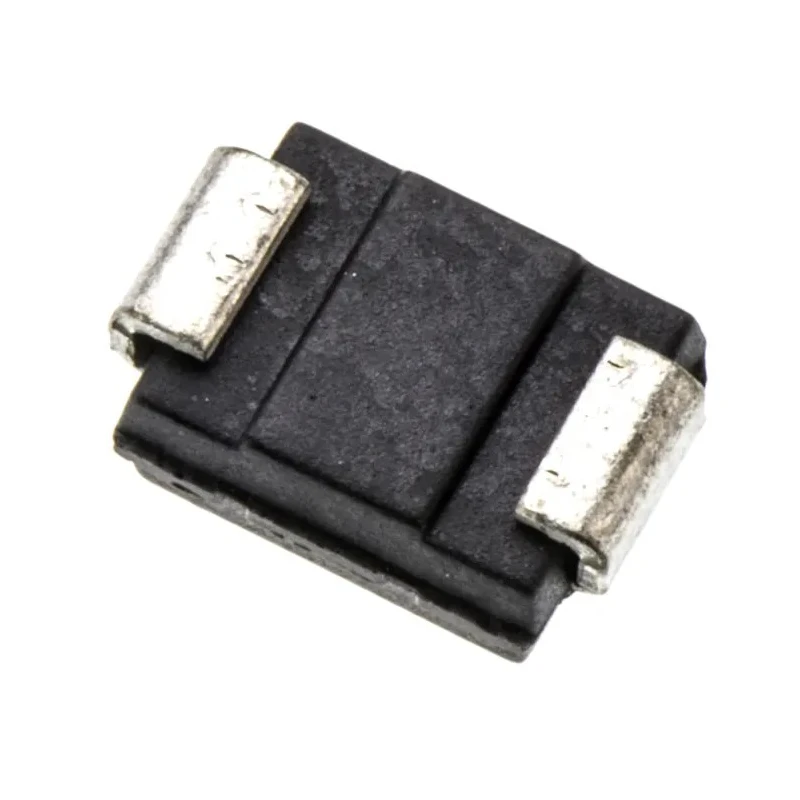

onsemi Silicon Junction Switching Diode, Single, 2 A Forward Current, 200 V DO-214AA Package MURS120T3G

The onsemi MURS120T3G is a silicon junction switching diode designed for electronic applications requiring a single diode configuration with a maximum forward current of 2 A and a maximum peak reverse voltage of 200 V. It is supplied in a compact DO-214AA surface mount package with 2 pins, enabling easy integration into printed circuit boards.

This diode features a fast peak reverse recovery time of 35 nanoseconds, making it suitable for switching applications that demand rapid response. It also supports a peak non-repetitive forward surge current of up to 40 A, enhancing robustness under transient conditions.

The MURS120T3G operates over a wide temperature range from -65°C to a maximum of 175°C, ensuring reliable performance in harsh environments commonly found in industrial, automotive, and consumer electronics sectors.

Its physical dimensions of 4.32 mm length, 3.56 mm width, and 2.13 mm height make it a compact component well-suited for space-constrained designs. The diode’s surface mount configuration simplifies assembly and manufacturing processes.

Rated maximum peak repetitive reverse voltage of 200 V supports various power electronics applications. Fast 35 ns reverse recovery time reduces switching losses and improves efficiency. Durable with a peak surge forward current of 40 A for transient load handling.

Broad operating temperature range supports industrial and automotive usage. Compact DO-214AA package optimizes board space utilization. 2-pin silicon junction diode configuration ensures versatile application.

This diode is ideal for use in power supply rectifiers, freewheeling diodes, polarity protection, and snubber circuits across industrial, automotive, and consumer electronic applications. It provides trusted switching performance and durability required for demanding electronic designs.
