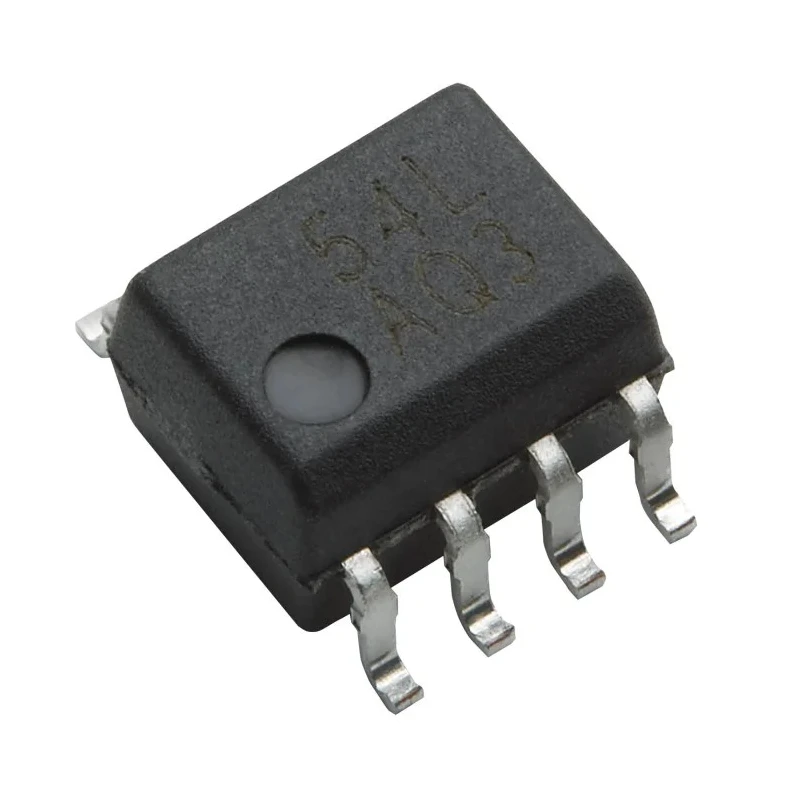

Broadcom DC Input 2-Channel Phototransistor Output Surface Mount Optocoupler SO-8 Package ACPL-054L-060E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-054L-060E |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | ACPL-054L |
| Maximum Operating Temperature | 105°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 230mA |
| Number Of Channels | 2 |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-5, CSA approval, RoHS |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Maximum Current Transfer Ratio | 200% |
| Minimum Current Transfer Ratio | 0.93% |
Key Features
- Compact SO-8 surface mount package ideal for PCB assembly.
- Supports 2 independent input channels for signal isolation.
- Maximum forward voltage of 1.5 V for low power operation.
- Maximum input current rating is 230 mA.
- Operates over a wide temperature range from -40°C to 105°C.
- Guaranteed current transfer ratio from 0.93% minimum up to 200% maximum.
- Low propagation delay time of 1 μs at 5 V supply voltage.
- Meets IEC/EN/DIN EN 60747-5-5, CSA approval standards and is RoHS compliant.
Product Description
Broadcom ACPL-054L-060E is a dual-channel optocoupler designed for electrical isolation in industrial and electronic applications. Featuring a DC input and phototransistor output, this device provides high-speed signal transfer while maintaining galvanic isolation with an integrated insulating layer.
Packaged in a compact SO-8 surface mount format, the optocoupler facilitates easy integration into printed circuit boards, suited for power and control electronics, telecommunications, and instrumentation systems.
The device supports a maximum forward voltage of 1.5 V and tolerates input currents up to 230 mA. Its guaranteed current transfer ratio ranges from 0.93% minimum to 200% maximum, enabling precise and reliable switching performance.
Designed to operate in harsh conditions, the optocoupler works efficiently over a temperature range of -40°C to +105°C. Its low propagation delay of 1 microsecond at 5 V supply voltage ensures fast response times.
Broadcom's ACPL-054L-060E meets rigorous standards including IEC/EN/DIN EN 60747-5-5, with CSA certification and RoHS conformity, making it suitable for compliant industrial and laboratory usage.
Compact SO-8 surface mount package ideal for PCB assembly. Supports 2 independent input channels for signal isolation. Maximum forward voltage of 1.5 V for low power operation. Maximum input current rating is 230 mA. Operates over a wide temperature range from -40°C to 105°C.
Guaranteed current transfer ratio from 0.93% minimum up to 200% maximum. Low propagation delay time of 1 μs at 5 V supply voltage. Meets IEC/EN/DIN EN 60747-5-5, CSA approval standards and is RoHS compliant. High common-mode rejection of 15 kV/μs at 1500 V common-mode voltage.
This device is widely used in electronic equipment manufacturing, instrumentation, industrial control systems, telecom equipment, and other applications requiring electrical isolation and signal integrity.
Explore more Optocouplers and electronic components available through EnvMart to suit diverse industrial and laboratory requirements.
