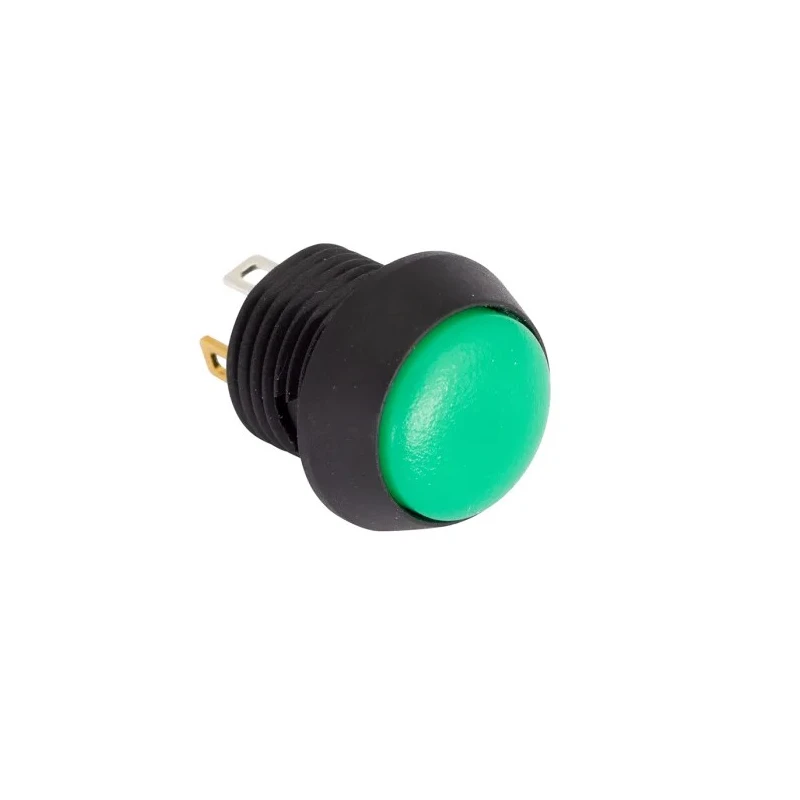

EOZ FL Series Push Button Switch Momentary Panel Mount 12 mm Cutout SPST IP67 2.5 kV AC FL12NG

The EOZ FL12NG FL Series Push Button Switch is a high-quality momentary push button designed for panel mounting, featuring a 12 mm panel cutout and SPST (Single Pole Single Throw) switch configuration. This device offers reliable performance with an ingress protection rating of IP67, ensuring complete sealing against dust and water ingress, making it ideal for industrial, electrical automation, and control panel applications.

Its green actuator cap provides clear visual indication without illumination, constructed from durable materials to withstand vandalism and harsh environment conditions. The push button operates within a wide temperature range of -40 to +85°C, supporting robust operation under extreme ambient temperatures.

The switch uses plug-in type terminals measuring 2.8 x 0.5 mm, featuring gold-plated nickel contact terminals for corrosion resistance and long-term electrical reliability. Additionally, the LED terminals are silver plated nickel, although this particular model is non-illuminated.

This EOZ push button switch is rated for a contact AC voltage of 2.5 kV, with a switching current of 65 mA. It is suitable for panel thicknesses ranging from 1 mm to 6 mm, providing versatile mounting options. RoHS compliant, the product meets environmental and safety standards.

Manufactured in France, the FL12NG series push button switch is designed to offer a sealed and vandal-resistant solution for use in industrial automation, electrical control panels, machinery operation, water treatment systems, and other commercial and manufacturing applications requiring a durable manual switch interface.

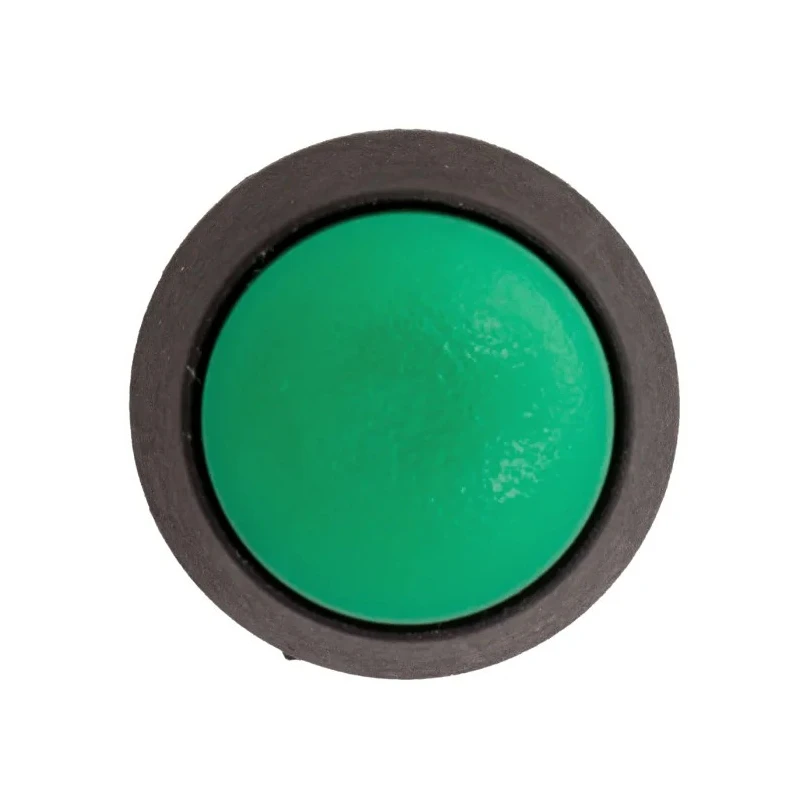

The actuator is green colored with a cap style for easy operation. Designed for high ingress protection rating IP67, making it suitable for harsh environments. Operating temperature range from -40°C up to +85°C for versatile industrial use.

Equipped with plug-in terminal type and gold-plated nickel contact terminals. Switch contact current rated at 65 mA ensuring reliable performance. Manufactured to be sealed and vandal resistant for demanding applications.

Panel thickness compatibility from 1 mm to 6 mm for flexible installation. Complies with RoHS standards ensuring environmental safety. Explore our Electronics & Electricals category to find high-quality push button switches like the EOZ FL Series for your industrial and commercial needs.
