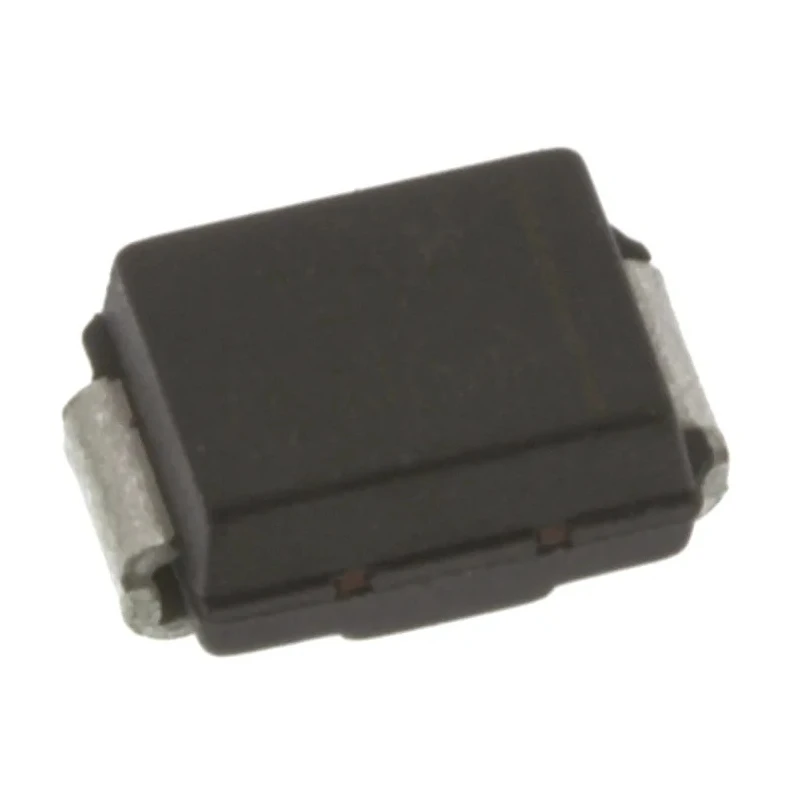

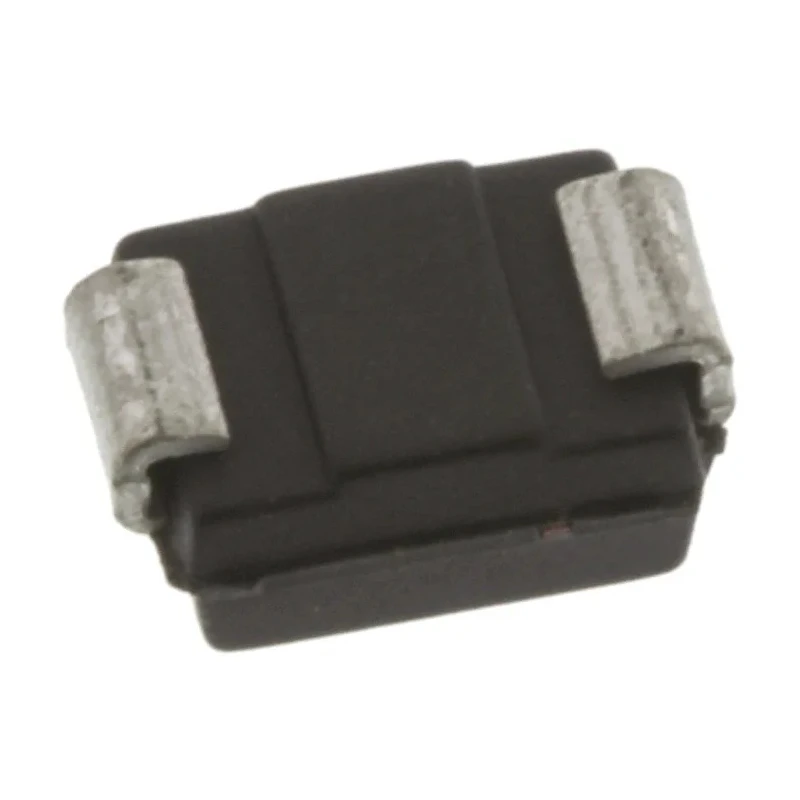

onsemi 100 V 2 A Schottky Diode Surface Mount DO-214AA MBRS1100T3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MBRS1100T3G |
| Width | 3.56mm |
| Mount Type | Surface |
| Series | MBRS1100 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 750mV |
Key Features
- Features a low forward voltage of 750 mV for efficient rectification.
- Supports peak non-repetitive forward surge current of 50 A.
- Operates reliably between temperatures of -65°C to 175°C.
- Compact DO-214AA package measuring 4.32 mm length, 3.56 mm width, and 2.13 mm height.
- Designed with AEC-Q101 automotive standard qualification for robust use.
- Ideal for high-frequency, low voltage rectification and polarity protection.
- Epoxy molded case and lightweight design facilitate automated board assembly.
Product Description
onsemi MBRS1100T3G is a high-performance Schottky diode designed for surface mount applications in compact DO-214AA packaging. It delivers a peak reverse repetitive voltage of 100 V and a maximum continuous forward current of 2 A, suitable for high-frequency rectification tasks.
This diode operates with a maximum forward voltage drop of 750 mV and withstands a peak non-repetitive surge current of 50 A, enabling it to handle transient conditions efficiently. It functions reliably in a wide temperature range from -65°C up to 175°C, making it appropriate for demanding industrial and automotive environments.
The MBRS1100T3G features an epoxy molded lightweight case weighing approximately 11.7 mg, enhancing its suitability for automated PCB assembly and enabling space-saving designs. Qualified to the AEC-Q101 automotive standard, this device is engineered for automotive electronics and other applications requiring stringent reliability and quality assurance.
This Schottky diode is widely used for freewheeling, polarity protection, and low voltage, high-frequency rectification in power supplies, automotive electronics, and other semiconductor applications.
Low forward voltage drop optimizes power efficiency. Compact form factor fits tight PCB layouts. Broad operating temperature extends device lifetime. Meets automotive grade quality and robustness standards. Lightweight epoxy package supports automated manufacturing.
It is an excellent choice for industrial, automotive, and commercial electronic designs requiring reliable, low-loss rectification. Browse other onsemi semiconductors and Schottky Diodes on EnvMart for comprehensive component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage rating of this diode is 100 V.
This model can handle a maximum continuous forward current of 2 A.
The maximum forward voltage drop for this diode is 750 mV.
It supports a peak non-repetitive forward surge current of 50 A.
It operates reliably between temperatures of -65°C to 175°C.
This diode comes in a compact DO-214AA package.
The diode weighs approximately 11.7 mg.
Yes, it is designed with AEC-Q101 automotive standard qualification for robust use.
This model features a 2-pin configuration.
It is a Schottky rectifier, which is suitable for high-frequency rectification tasks.
The peak reverse current is rated at 500 μA.
It is widely used for freewheeling, polarity protection, and low voltage, high-frequency rectification in power supplies and automotive electronics.
