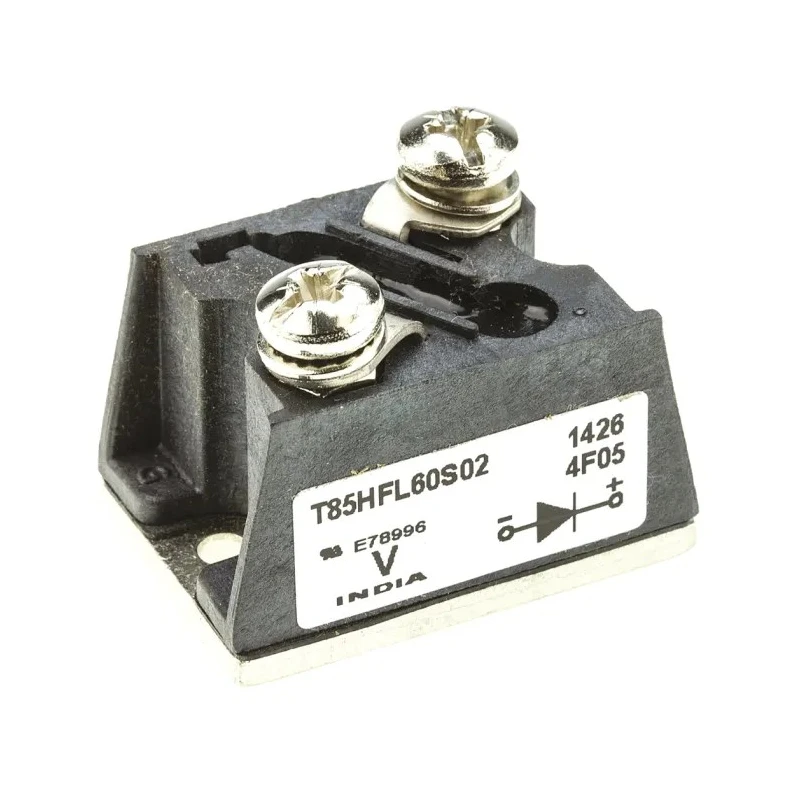

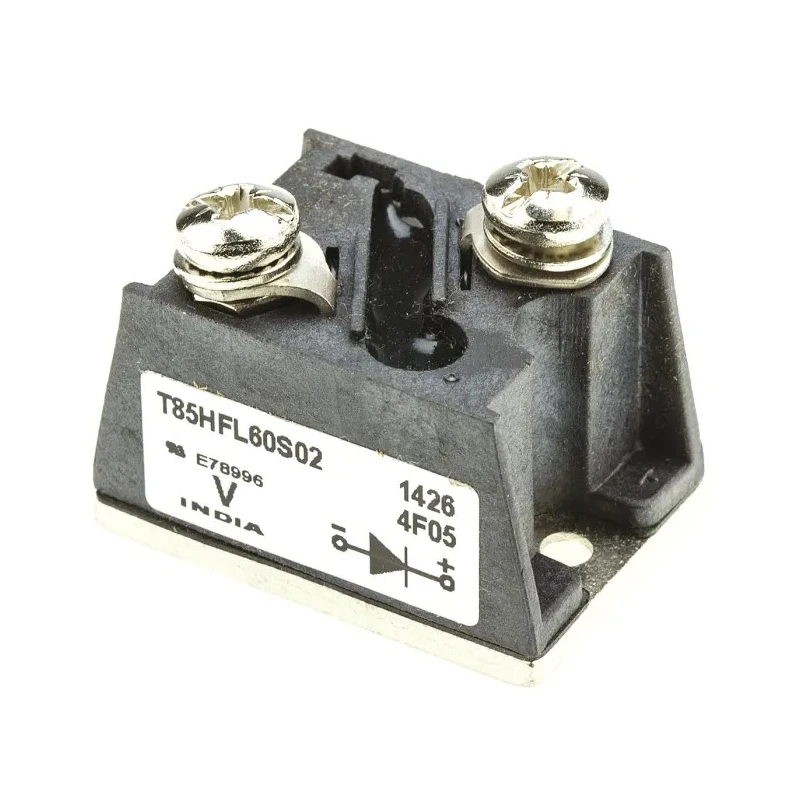

Vishay 600 V 85 A Diode Switching 2-Pin T-Module VS-T85HFL60S02

Vishay VS-T85HFL60S02 diode switching 2-pin T-module operates at 600 V and 85 A, designed for fast recovery power applications. This module utilizes a fast recovery diode technology with a peak reverse recovery time of 200 ns, making it highly effective for efficient power switching.

The diode is electronically isolated from the metal base, allowing mounting on common heatsinks. Its single diode configuration is ideal for use as a freewheel diode in conjunction with thyristor modules. Applications include self-commutated inverters, DC choppers, motor controls, inductive heating, and electronic welders requiring fast recoveries and robust power switching.

The module supports a maximum continuous forward current of 85 A and a peak reverse repetitive voltage of 600 V with a low maximum forward voltage drop of 1.55 V. It can withstand peak non-repetitive forward surge currents up to 1.4 kA. Designed to operate in industrial temperature environments from -40°C to 125°C, this T-module package offers simplified mechanical design and rapid assembly.

The dimensions are 41 mm length, 27 mm width, and 25 mm height, with a 2-pin configuration providing compatibility with various power electronic assemblies. The device features large creepage distances and is compliant with insulation voltage requirements up to 3500 VRMS. Manufactured in India, it meets stringent industrial standards and is suitable for a variety of heavy-duty electrical and semiconductor applications.

Fast recovery time of 200 nanoseconds for efficient switching. Electrically isolated base plate supports common heatsink assemblies. Maximum continuous forward current of 85 amperes. Peak reverse repetitive voltage of 600 volts ensuring reliable operation.

Compact dimensions of 41mm length, 27mm width, and 25mm height. Handles peak non-repetitive forward surge current up to 1.4 kA. Operating temperature range from -40°C to 125°C for industrial environments. Single diode configuration suitable for freewheel diode applications.

Large creepage distances with standard JEDEC package for simplified mechanical design. Manufactured in India, qualified for industrial level use.

Ideal for industrial, construction, HVAC, manufacturing, and motor control applications, this diode module ensures reliable power switching performance. Browse the Electronics & Electricals Semiconductor catalog on EnvMart for comprehensive options and support.
