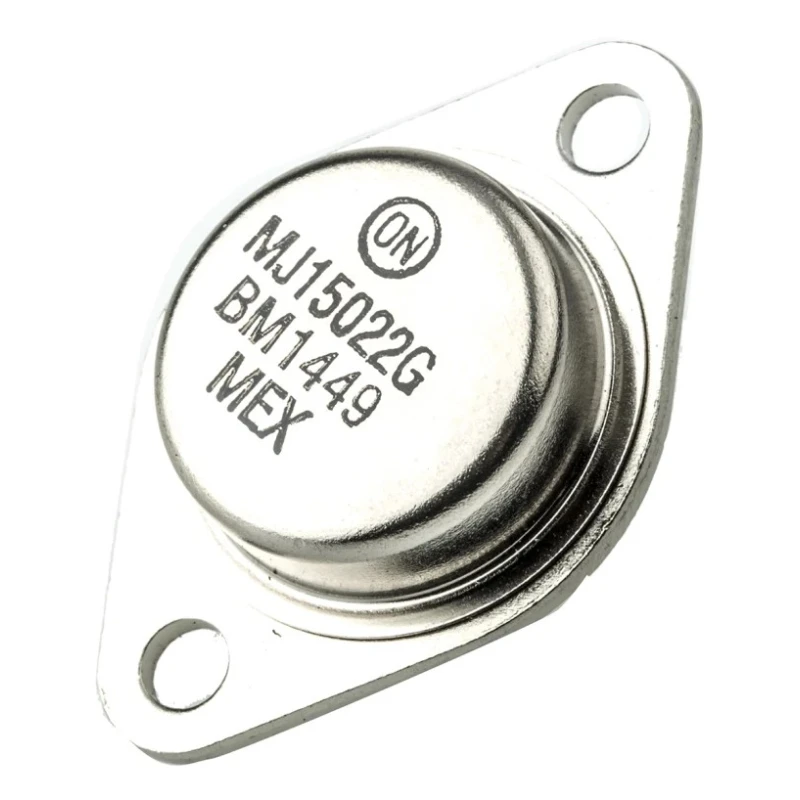

onsemi NPN Power Transistor, 16 A, 200 V, 250 W, TO-204 Package, 3-Pin, Through Hole MJ15022G

onsemi MJ15022G is an NPN power transistor engineered for high current and voltage handling capabilities. It supports a maximum DC collector current of 16 A and collector-emitter voltage up to 200 V, making it ideal for robust power switching tasks in industrial and electronic systems.

The transistor comes in a TO-204 package with three pins configured for through-hole mounting, facilitating reliable installation on power electronic boards. It is suitable for applications including power supplies, motor control, and HVAC systems requiring durable and efficient power transistors.

This device features a maximum power dissipation rating of 250 W and a wide operating temperature range from -65°C to 200°C, offering stable performance even under harsh thermal conditions. The minimum DC current gain of 5 ensures adequate amplification, while the maximum transition frequency of 4 MHz supports moderate frequency operations.

Physical dimensions of 39.37 mm length, 26.67 mm width, and 0.82 mm height allow integration into standard industrial assemblies. With a maximum collector-base voltage of 350 V and emitter-base voltage of 5 V, it reliably handles electrical stresses in demanding applications.

Typical use cases include industrial automation, power electronics manufacturing, laboratory equipment, and HVAC control systems where durable power bipolar transistors are essential.

Supports maximum power dissipation of 250 W for robust performance. Configured as a single NPN transistor with 3 pins in a TO-204 package. Through hole mount type suitable for industrial PCB assembly. Maximum operating temperature of 200°C enables use in demanding thermal environments.

Low minimum DC current gain of 5 for stable transistor operation. Maximum collector-base voltage rating of 350 V for high voltage handling. Compact physical dimensions: 39.37 mm length, 26.67 mm width, and 0.82 mm height.

Designed primarily for industrial, power electronics, and HVAC applications. Explore more industrial semiconductors and Power Transistors on EnvMart for professional electronics design and manufacturing needs.
