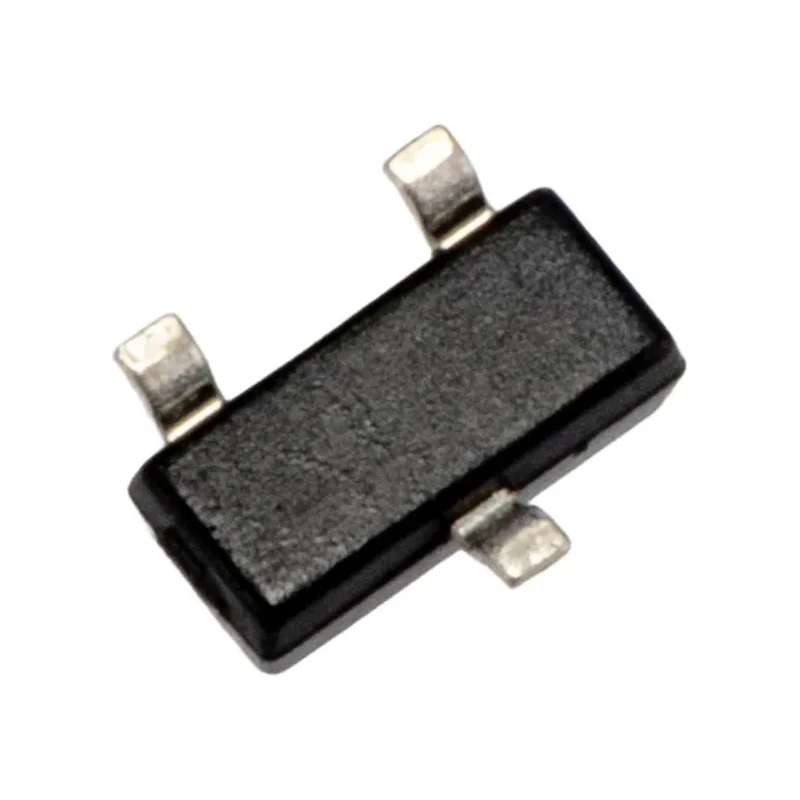

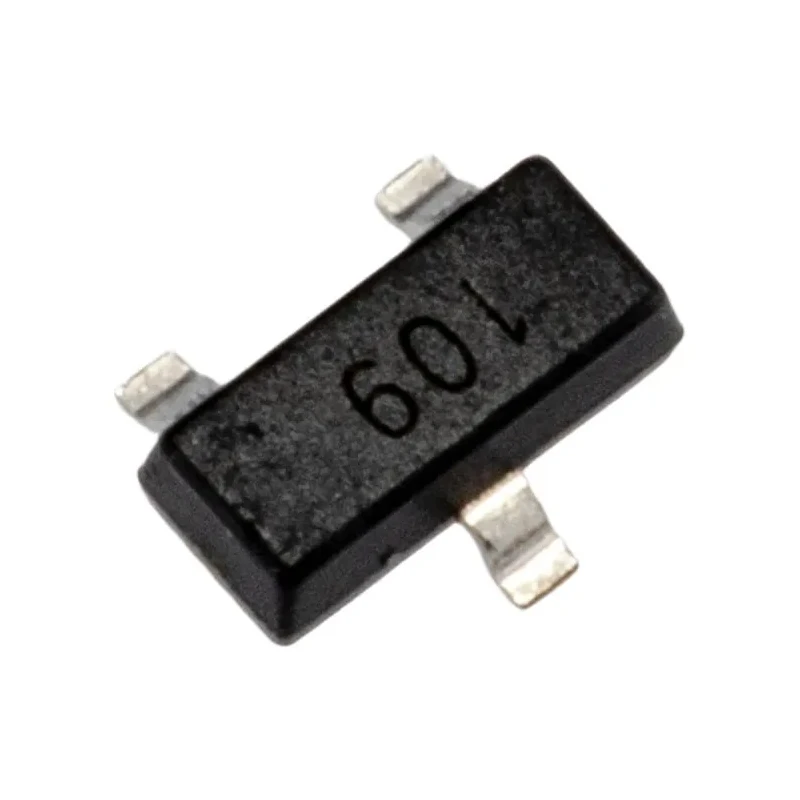

DiodesZetex Current Monitor Single Channel 3-Pin Surface Mount SOT-23 Package ZXCT1009FTA
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3.05mm |
| Model | ZXCT1009FTA |
| Mount Type | Surface |
| Series | ZXCT1009 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 100nA |
| GBP - Gain Bandwidth Product | 2MHz |
Key Features
- Operates with a supply voltage range of 2.5V to 20V, suitable for diverse power environments.
- Features a very low supply current of 100 nA, ensuring energy-efficient operation.
- Provides a gain bandwidth product of 2 MHz, enabling accurate current measurement over a wide frequency range.
- Designed to withstand operating temperatures from -40°C to 85°C for reliability in harsh conditions.
- Complies with automotive standard AEC-Q100, ensuring robustness for automotive applications.
- Compact surface mount package (SOT-23) with a small form factor of 3.05 mm length and 1 mm height.
Product Description
DiodesZetex ZXCT1009FTA is a dedicated Current Monitor amplifier designed to provide precise current sensing with a voltage output proportional to the voltage drop across a low-value resistor. This single channel device comes in a compact 3-Pin SOT-23 surface mount package with dimensions of 3.05 mm length and 1 mm height, making it ideal for tight PCB layouts in industrial and automotive electronics.
Operating over a wide supply voltage range from 2.5 V to 20 V, the device draws minimal supply current of only 100 nA, making it suitable for energy-sensitive applications. It delivers excellent performance with a gain bandwidth product of 2 MHz, enabling accurate sensing of dynamic current signals.
The product operates reliably in extreme temperatures from -40°C up to 85°C and meets the stringent automotive AEC-Q100 standard, making it well-suited for automotive and industrial environments requiring high durability.
Current sensing amplifiers like the ZXCT1009FTA find applications in power management, motor control, battery monitoring, and overcurrent protection circuits in industrial, automotive, consumer electronics, and laboratory electronic systems.
Operates with a supply voltage range of 2.5V to 20V, suitable for diverse power environments. Features a very low supply current of 100 nA, ensuring energy-efficient operation. Provides a gain bandwidth product of 2 MHz, enabling accurate current measurement over a wide frequency range.
Designed to withstand operating temperatures from -40°C to 85°C for reliability in harsh conditions. Complies with automotive standard AEC-Q100, ensuring robustness for automotive applications. Compact surface mount package (SOT-23) with a small form factor of 3.05 mm length and 1 mm height.
This Current Monitor device is recommended for industrial automation systems, automotive electronics, power supply units, and embedded system designs demanding precise current feedback and monitoring.
Explore more electronics and semiconductor amplifiers on EnvMart for professional-grade industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ZXCT1009FTA operates with a supply voltage range of 2.5V to 20V, making it suitable for diverse power environments.
This model features a very low supply current of 100 nA, ensuring energy-efficient operation.
The device provides a gain bandwidth product of 2 MHz, enabling accurate current measurement over a wide frequency range.
It is designed to withstand operating temperatures from -40°C to 85°C, ensuring reliability in harsh conditions.
This current monitor comes in a compact 3-Pin SOT-23 surface mount package with dimensions of 3.05 mm in length and 1 mm in height.
Yes, it complies with the automotive standard AEC-Q100, ensuring robustness for automotive applications.
This current monitor is recommended for applications in power management, motor control, battery monitoring, and overcurrent protection circuits.
This model is a single channel device, designed specifically for precise current sensing.
The height of the SOT-23 package is 1 mm, making it suitable for tight PCB layouts.
The length of this model is 3.05 mm, contributing to its compact design.
The gain bandwidth product of 2 MHz allows for accurate sensing of dynamic current signals, which is crucial for effective current monitoring.
The country of origin for the ZXCT1009FTA is India.
