| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.11mm |
| Length | 3.04mm |
| Model | BC856BLT1G |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | BC856ALT1G |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -65V |
| Minimum DC Current Gain hFE | 125 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 80V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 100MHz |

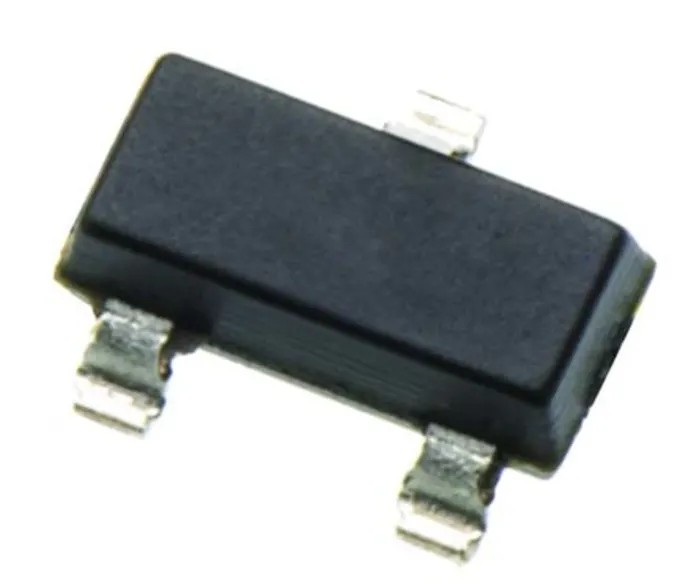

onsemi BC856BLT1G is a PNP small signal transistor designed for electronic components applications requiring switching and amplification. It is packaged in a compact 3-pin SOT-23 surface mount type, making it suitable for space-sensitive PCB layouts.
This transistor supports a maximum DC collector current of 100 mA and a maximum collector-emitter voltage of 65 V, making it ideal for low power electronic circuits. The device has a maximum power dissipation of 300 mW and a transition frequency of 100 MHz, allowing efficient operation in high-frequency switching applications.
The BC856BLT1G transistor features a single transistor configuration with PNP polarity. It operates reliably over a temperature range from -55°C to 150°C and meets the automotive standard AEC-Q101, affirming its suitability for automotive and industrial applications.
The package dimensions are length 3.04 mm, width 1.4 mm, and height 1.11 mm, enabling compact mounting on circuit boards. It includes a maximum collector-base voltage of 80 V and maximum emitter-base voltage of 5 V, ensuring robust electrical characteristics.
This transistor is designed for use in industrial, automotive, and general electronic circuits for amplification and switching roles. Its small size and surface mount package assist efficient automated assembly and high-density PCB designs.
Compliance with AEC-Q101 standard makes it reliable in automotive environments.
The onsemi BC856BLT1G transistor is a reliable choice for electronics designers requiring a compact, high-frequency PNP transistor for applications in industrial control, automotive electronics, instrumentation, and consumer electronics.
