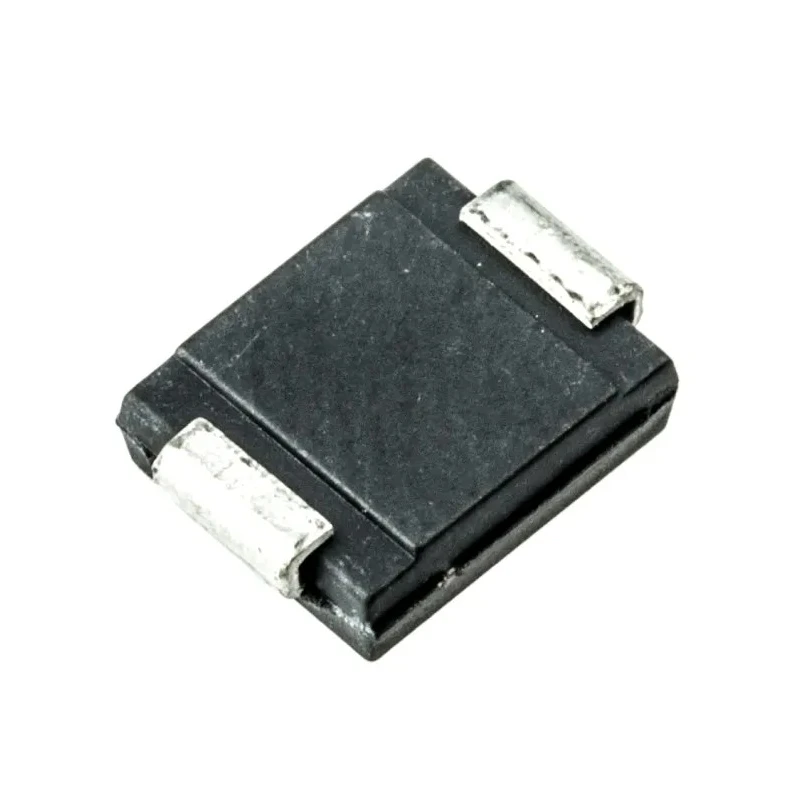

Vishay Schottky Diode 40 V 3 A Surface Mount DO-214AB 2-Pin VS-30BQ040-M3/9AT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 7.11mm |
| Model | VS-30BQ040-M3/9AT |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2kA |
| Maximum Forward Voltage Vf | 0.46V |
Key Features
- Has a maximum continuous forward current of 3 amperes.
- Features a peak reverse repetitive voltage of 40 volts.
- Exhibits a low maximum forward voltage of 0.46 volts ensuring energy efficiency.
- Operates reliably between temperatures of -55°C to 150°C.
- Designed with a 2-pin DO-214AB (SMC) surface mount package for compact PCB integration.
- Peak non-repetitive forward surge current rating of 2 kiloamperes.
- Supports single diode configuration within the VSX series.
- Peak reverse current is limited to 500 microamperes, enhancing performance stability.
Product Description
Vishay VS-30BQ040-M3/9AT is a high-performance Schottky diode designed for applications demanding a 40 V peak reverse voltage and a maximum continuous forward current of 3 A. Packaged in a compact 2-pin DO-214AB surface mount configuration, this semiconductor device ensures energy-efficient circuit performance with its low forward voltage drop of 0.46 V and very fast switching capabilities.
The diode supports a wide operating temperature range from -55°C to 150°C, making it suitable for a variety of industrial and electronic applications including power rectification, power management, and circuit protection in automotive, manufacturing, and consumer electronics sectors.
The VSX series diode is characterized by a peak non-repetitive forward surge current of 2 kA and a peak reverse current limited to 500 µA, resulting in reliable performance under transient conditions. Its single diode configuration facilitates straightforward integration into compact PCB designs due to the DO-214AB (SMC) footprint with physical dimensions of 7.11 mm length and 6.22 mm width.
Vishay Schottky diodes are favored in semiconductor applications for their reduced power loss and minimal forward voltage drop, which together enhance device efficiency and reduce thermal dissipation. These features optimize performance in fast switching power supply circuits and other electronic components that require rapid response and high durability.
Maximum continuous forward current is 3 A. Peak reverse repetitive voltage rated at 40 V. Low maximum forward voltage of 0.46 V. Operating temperature range from -55°C to 150°C. DO-214AB package with 2 pins suitable for surface mount technology.
Peak non-repetitive forward surge current of 2 kA. Single diode configuration in the VSX series. Peak reverse current of 500 µA. Compact dimensions: 7.11 mm length, 6.22 mm width. Applicable in industrial, automotive, electronics manufacturing, and power management fields.
Discover more semiconductor solutions and Schottky diodes by browsing the comprehensive Vishay catalog and related categories at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay Schottky diode is 3 amperes.
This model has a peak reverse repetitive voltage rating of 40 volts.
It exhibits a low maximum forward voltage drop of 0.46 volts, ensuring energy efficiency.
The operating temperature range for this diode is from -55°C to 150°C.
This diode is packaged in a 2-pin DO-214AB (SMC) surface mount configuration.
The peak non-repetitive forward surge current rating is 2 kiloamperes.
The diode has a length of 7.11 mm and a width of 6.22 mm.
The peak reverse current is limited to 500 microamperes.
This model supports a single diode configuration within the VSX series.
It is suitable for applications in power rectification, power management, and circuit protection across automotive, manufacturing, and consumer electronics sectors.
This diode belongs to the VSX series of Vishay Schottky diodes.
The low forward voltage drop of 0.46 volts enhances device efficiency and reduces thermal dissipation, optimizing performance in fast switching circuits.
