Vishay N-Channel MOSFET 5.4 A 800 V Enhancement 3-Pin TO-247 IRFPE40PBF

The Vishay IRFPE40PBF N-Channel Enhancement Mode MOSFET is engineered to provide superior performance in power switching and amplification tasks in demanding industrial and electronic applications. Featuring a maximum continuous drain current of 5.4 A and a drain-source voltage rating of 800 V, this device meets high-voltage power control requirements reliably.

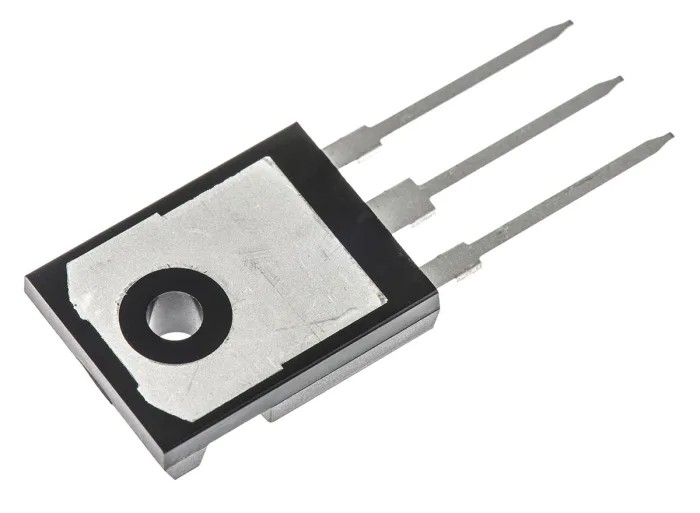

Packaged in a robust TO-247 through-hole mount with three pins, the MOSFET ensures easy integration into power circuit boards with mechanical stability. Its low drain-source resistance of 2Ω minimizes power loss, enhancing overall circuit efficiency. The device supports a maximum gate-source voltage range of -20 V to +20 V, allowing flexible control voltage schemes.

Designed to operate over a wide ambient temperature range from -55°C to 150°C, the IRFPE40PBF maintains stable operation even in harsh environments. It handles power dissipation of up to 150 W, suitable for medium to high power applications including motor drives, power supplies, and power management circuits.

The typical gate charge of 130 nC at the rated gate voltage ensures rapid switching capability, enhancing performance in PWM and switching applications. The forward voltage drop across the device is approximately 1.8 V, contributing to low conduction losses.

Typical physical dimensions are 5.31 mm width, 15.87 mm length, and 20.7 mm height, consistent with TO-247 packaging standards. Offers low drain-source resistance of 2Ω for efficient conduction. Packaged in a durable TO-247 through-hole mount with 3 pins for reliable installation.

Supports a wide operating temperature range from -55°C to 150°C. Maximum power dissipation is 150 W, suitable for high power applications. Compatible with gate-source voltages between -20 V and +20 V. Typical gate charge of 130 nC at specified gate voltage enables fast switching.

Forward voltage drop is typically 1.8 V under forward conduction. Robust build with dimensions 5.31 mm width, 15.87 mm length, and 20.7 mm height. Engineered for industrial electronics, power management, and control electronics.

Ideal for use in industrial electronics, power management, and semiconductor control systems. For additional technical details and design resources, refer to Vishay's official datasheets and supporting software tools.
