Molex PicoBlade Series Straight Surface PCB Header 11 Contacts 1.25 mm Pitch 1 Row Shrouded 53398-1171

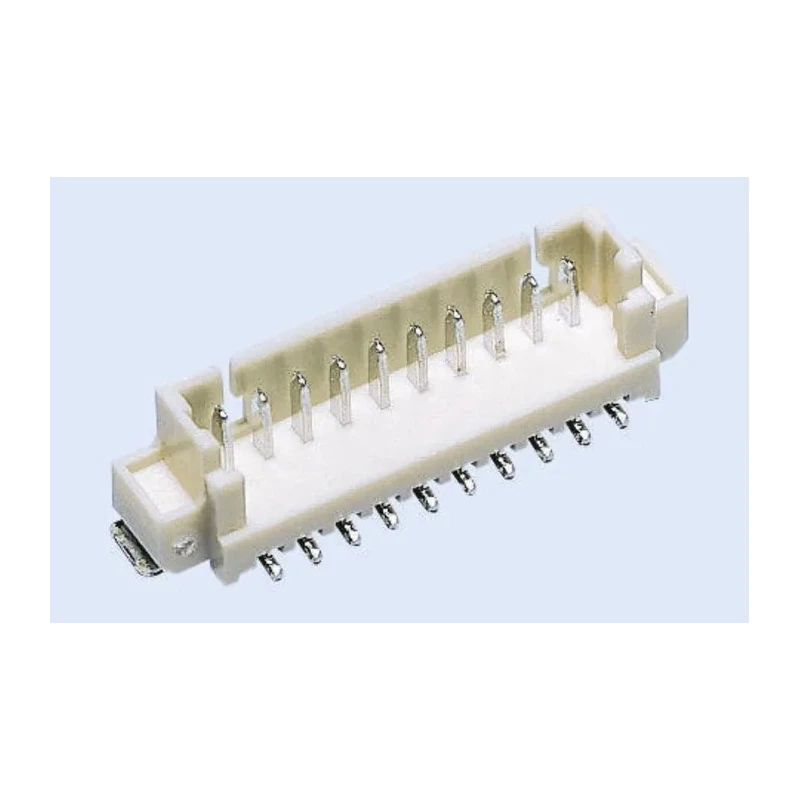

Molex 53398-1171 PicoBlade Series Straight Surface PCB Header features a compact 1.25 mm pitch, shrouded housing, and a single row of 11 male contacts designed for secure wire-to-board connection.

This PCB header uses a friction locking mechanism with locking windows in the housing that engage with latching ramps to prevent accidental disconnects caused by vibration or mishandling. The connector system supports a 1 A current rating and operates reliably from -40°C to 105°C, making it suitable for industrial, automotive, and medical electronic applications.

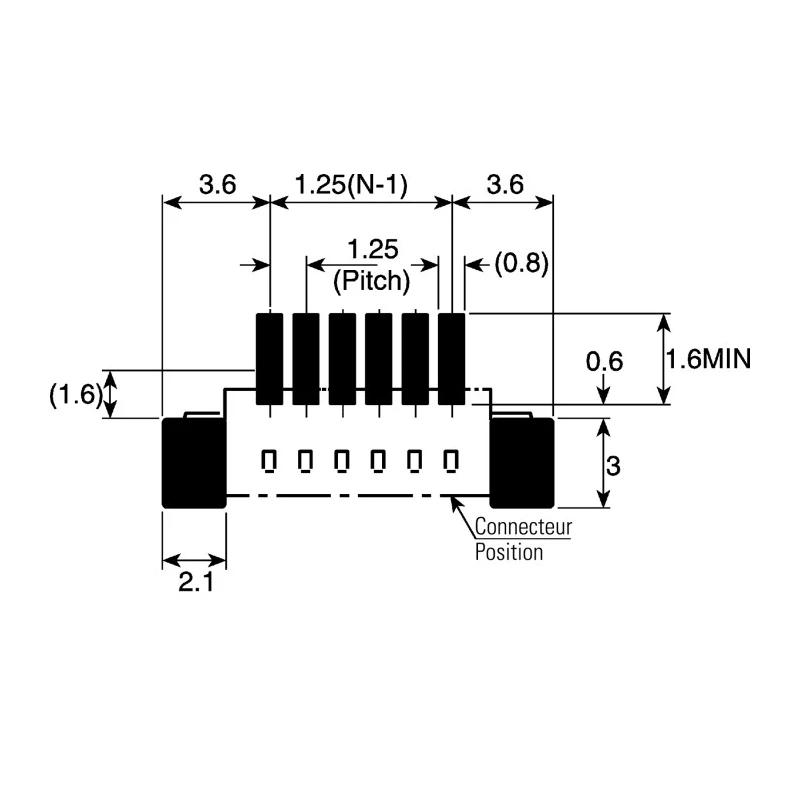

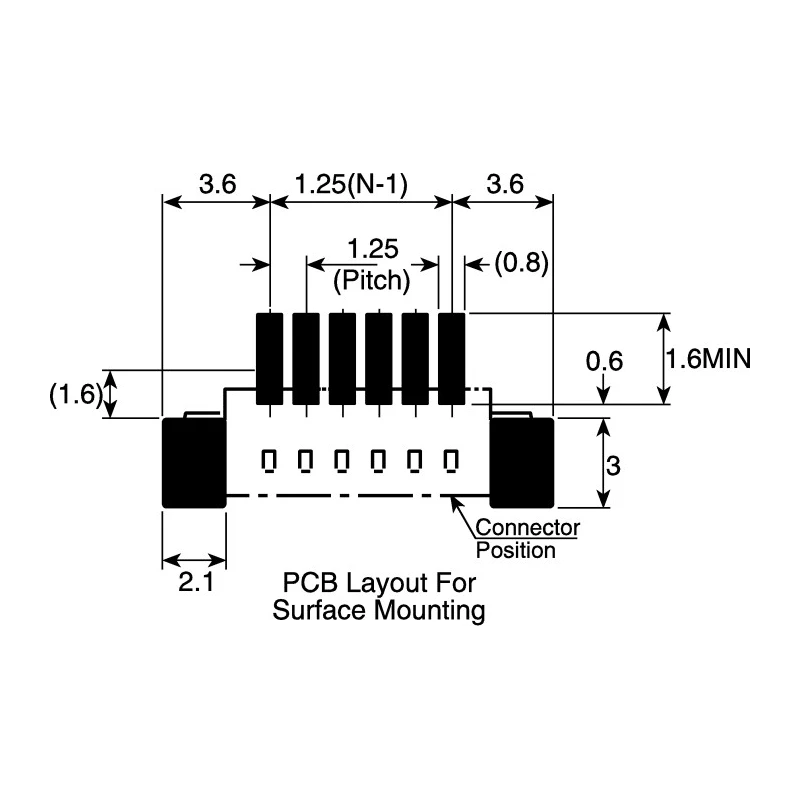

The surface mount header has solder termination with solder tabs that provide strain relief and secure retention on the PCB, reducing solder joint cracking. The nylon housing offers durability while phosphor bronze contacts with tin plating ensure good electrical conductivity and corrosion resistance.

This compact PicoBlade connector system helps save up to 45% of PCB space compared to 2.00 mm pitch wire-to-board systems without compromising on current capacity. Ideal use cases include automotive alarms, car audio systems, DVD players, industrial process controls, and medical patient monitoring devices.

Compact 1.25 mm pitch for PCB space savings. 1 A current capacity for reliable performance. Friction lock mechanism for secure mating. Surface mount with solder termination and strain relief tabs. Nylon housing and phosphor bronze tin-plated contacts.

Operating temperature range from -40°C to 105°C. Single row, shrouded design with 11 male contacts. Suitable for automotive, industrial, and medical applications. Choose Molex PicoBlade Series 53398-1171 connectors from the PCB Headers category for enhanced wire-to-board interconnection solutions at EnvMart.
