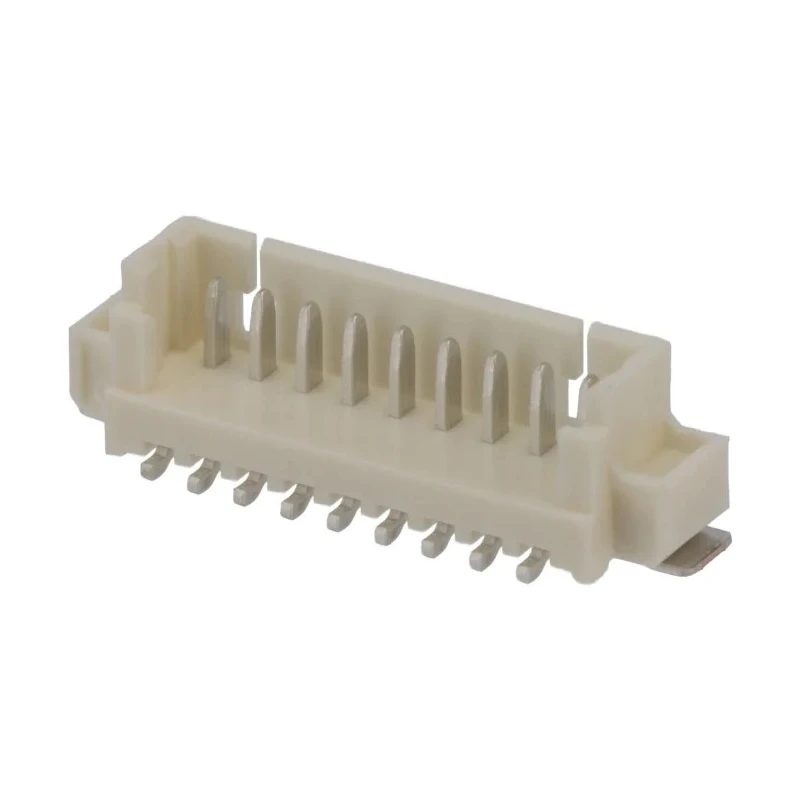

Molex PicoBlade Series Straight Surface PCB Header, 1.25mm Pitch, 9 Contacts, 1 Row, Shrouded 53398-0971
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 0.6mm |
Key Features
- Compact 1.25mm pitch optimizes PCB space utilization.
- Rated for 1 Amp current providing reliable power transfer.
- Constructed with durable Phosphor Bronze contacts plated with tin for corrosion resistance.
- Nylon housing material ensures insulation and mechanical stability.
- Single row, straight orientation design for wire-to-board connectivity.
- Solder termination offers a secure, strong joint suitable for surface mount technology.
- Wide operating temperature range from -40°C to 105°C for demanding environments.
- Shrouded design enhances connector protection and alignment during mating.
Product Description
Molex 53398-0971 PicoBlade Series Straight Surface PCB Header is engineered for precision and durability in electronic assemblies. Featuring a low-profile 1.25mm pitch and 9 male contacts in a single row, its compact footprint is ideal for high-density printed circuit boards requiring space-efficient connection solutions.
This connector is fabricated with Phosphor Bronze contacts plated with tin to resist corrosion and ensure consistent electrical conductivity. The housing is made of nylon, which provides excellent mechanical strength and electrical insulation. It mounts via solder termination onto PCBs using surface mount technology, facilitating automated assembly processes in manufacturing environments.
Rated for a voltage of 125V and a current of 1A, it suits low power applications requiring stable, secure connections. The operating temperature range from -40°C to 105°C allows reliable performance even in extreme environmental conditions found in industrial, automation, and instrumentation applications.
The shrouded design protects contacts from mechanical damage and aids in ensuring correct alignment when mated with compatible PicoBlade housings, making it ideal for wire-to-board interconnections.
Compact 1.25mm pitch maximizes PCB real estate efficiency. Durable Phosphor Bronze and tin-plated contacts ensure longevity. Nylon housing provides robust insulation and mechanical support. Solder termination type ensures reliable mounting on circuits.
Single row, 9 contact configuration for precise application fit. Wide temperature rating from -40°C to 105°C for versatile use cases. Shrouded design enhances durability and mating reliability. Compatible with PicoBlade housings for system-wide integration.
This PCB header is ideal for use in industrial automation, communication devices, instrumentation, and consumer electronics where compactness and dependable electrical connections are critical.
Explore additional Molex PicoBlade series components and related connectors in the Electronics & Electricals PCB Headers category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this PCB header is 1.25mm, which helps optimize space utilization on printed circuit boards.
This model features 9 male contacts arranged in a single row, suitable for various wire-to-board applications.
The maximum current rating for this connector is 1 Amp, providing reliable power transfer for low power applications.
It is constructed with Phosphor Bronze contacts plated with tin for corrosion resistance, and the housing is made of nylon for insulation and mechanical stability.
The operating temperature range is from -40°C to 105°C, making it suitable for demanding environments.
This unit uses solder termination, which ensures a secure and strong joint suitable for surface mount technology.
This header is shrouded, which enhances connector protection and alignment during mating.
The voltage rating for this connector is 125V, suitable for low power applications requiring stable connections.
The tail pin length of this model is 0.6mm, designed for effective soldering onto PCBs.
This PCB header supports a wire-to-board connector system, facilitating efficient electrical connections.
The country of origin for this PCB header is India.
This model is ideal for use in industrial automation, communication devices, instrumentation, and consumer electronics.
