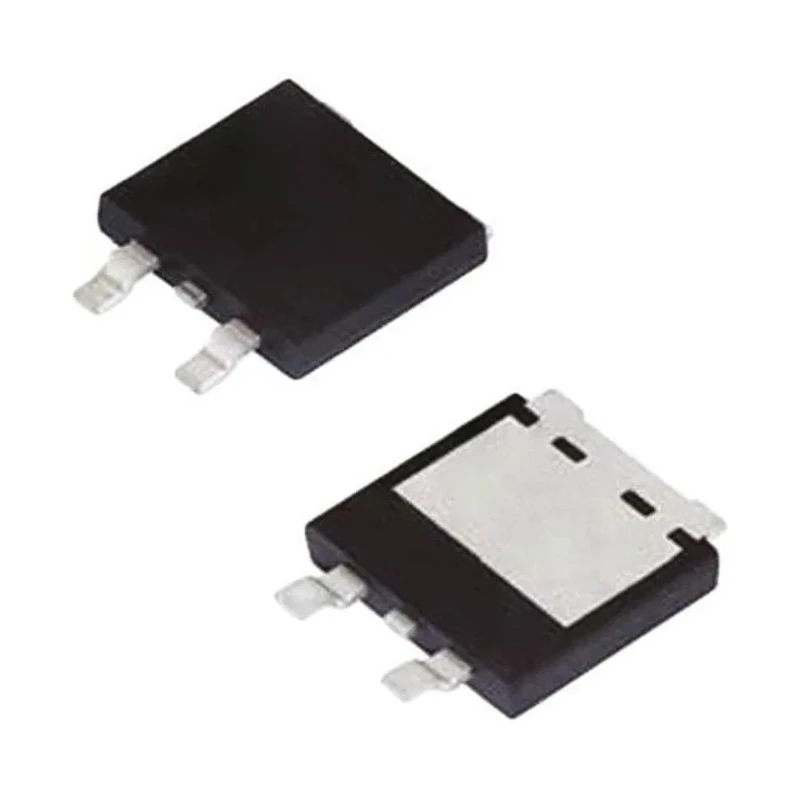

Vishay Schottky Diode 120 V 35 A Surface Mount TO-252 3-Pin DPAK V35PWM12HM3/I
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.4mm |
| Length | 6.32mm |
| Model | V35PWM12HM3/I |
| Width | 6.72mm |
| Mount Type | Surface |
| Series | V35X |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 35A |
| Peak Reverse Repetitive Voltage Vrrm | 120V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 40mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 260A |
| Maximum Forward Voltage Vf | 1.05V |
Key Features
- Maximum continuous forward current of 35 amperes ensuring robust conduction.
- Peak reverse repetitive voltage rated at 120 volts suitable for power rectification.
- TO-252 package type with 3-pin DPAK configuration for easy PCB mounting.
- Trench MOS Barrier Schottky technology for low forward voltage drop of 1.05 volts.
- Operating temperature range from -40°C to 175°C for reliable performance in harsh environments.
- Peak non-repetitive forward surge current capability of 260 amperes for transient conditions.
- Automotive standard AEC-Q101 qualified for demanding automotive applications.
- Manufactured in China with consistent quality and new product condition.
Product Description
Vishay V35PWM12HM3/I is a Schottky diode designed for electronic applications requiring high current and voltage ratings. Its surface mount assembly in the TO-252 3-pin DPAK package facilitates efficient PCB layout and thermal management.
This diode provides a maximum continuous forward current of 35 amperes and withstands peak reverse repetitive voltage of 120 volts, making it suitable for power rectification and switching power supplies. The trench MOS barrier Schottky construction minimizes forward voltage drop to 1.05 volts, enhancing energy efficiency and reducing heat dissipation.
Engineered to operate reliably over a wide temperature range of -40°C to 175°C, the diode is well suited for industrial, automotive, and commercial electronic circuits exposed to extreme conditions. It can handle short transient surges up to 260 amperes without damage, ensuring robustness in demanding environments.
The compact dimensions (6.32 mm length, 6.72 mm width, and 1.4 mm height) optimize space usage on densely packed circuit boards. Compliance with automotive quality standard AEC-Q101 assures high reliability in automotive systems requiring tight quality controls.
As a new product manufactured in China, this diode is ideal for applications in power converters, battery chargers, and voltage clamping circuits in industrial automation and automotive sectors.
Maximum continuous forward current of 35 amperes ensuring robust conduction. Peak reverse repetitive voltage rated at 120 volts suitable for power rectification. TO-252 package type with 3-pin DPAK configuration for easy PCB mounting.
Trench MOS Barrier Schottky technology for low forward voltage drop of 1.05 volts. Operating temperature range from -40°C to 175°C for reliable performance in harsh environments. Peak non-repetitive forward surge current capability of 260 amperes for transient conditions.
Compact device dimensions: length 6.32 mm, width 6.72 mm, height 1.4 mm. Automotive standard AEC-Q101 qualified for demanding automotive applications. Manufactured in China with consistent quality and new product condition.
Explore more semiconductor products by Vishay and similar high-performance diodes on EnvMart. Upgrade your industrial, automotive, and electronic system designs with reliable Schottky diode components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 35 amperes, ensuring robust conduction for various applications.
This model has a peak reverse repetitive voltage rating of 120 volts, making it suitable for power rectification applications.
It comes in a TO-252 package type with a 3-pin DPAK configuration, facilitating easy PCB mounting.
The diode features a low forward voltage drop of 1.05 volts, which enhances energy efficiency.
This model operates reliably over a temperature range from -40°C to 175°C, suitable for harsh environments.
It can handle a peak non-repetitive forward surge current of 260 amperes, ensuring robustness under transient conditions.
The compact dimensions of this unit are 6.32 mm in length, 6.72 mm in width, and 1.4 mm in height.
Yes, it is qualified according to the automotive standard AEC-Q101, ensuring high reliability for automotive applications.
This diode has a single diode configuration, which is typical for Schottky diodes used in various applications.
The peak reverse current for this model is rated at 40 mA, which is relevant for its performance in circuits.
It is suitable for applications in power converters, battery chargers, and voltage clamping circuits in industrial and automotive sectors.
This diode is manufactured in China, ensuring consistent quality and new product condition.
