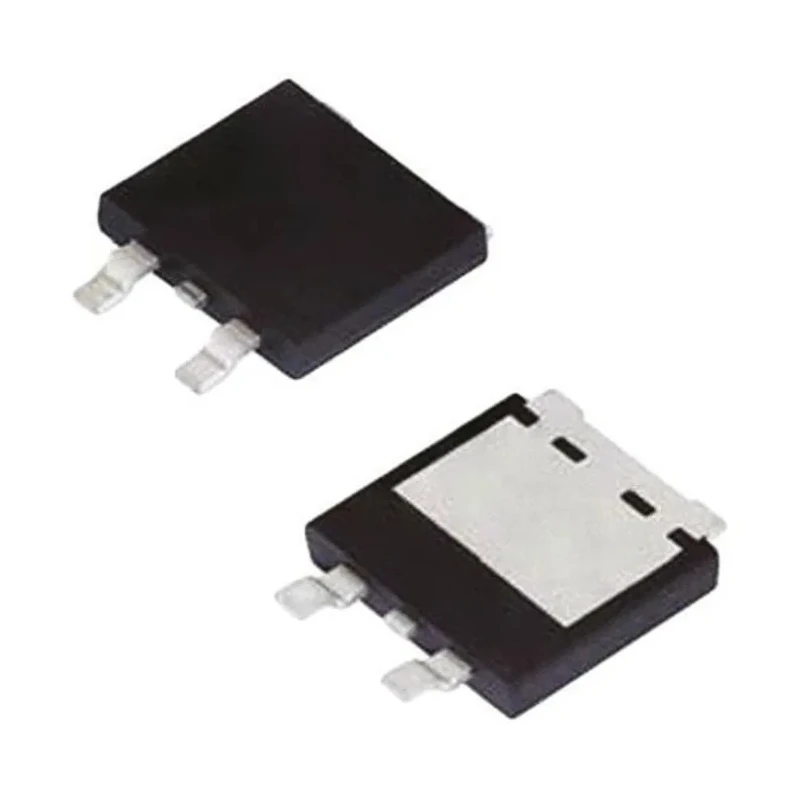

Vishay 45 V 35 A Schottky Diode Surface Mount TO-252 Package 3-Pin DPAK V35PW45HM3/I
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.4mm |
| Length | 6.32mm |
| Model | V35PW45HM3/I |
| Width | 6.72mm |
| Mount Type | Surface |
| Series | V35X |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 35A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 65mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 260A |
| Maximum Forward Voltage Vf | 620mV |
Key Features
- Surface mount type suitable for high-efficiency power applications.
- TO-252 (DPAK) 3-pin package for compact PCB layout.
- Maximum forward voltage of 620 mV ensuring low conduction losses.
- Operating temperature range from -40°C up to 150°C for industrial environments.
- Peak non-repetitive surge current of 260 A for transient tolerance.
- Peak reverse current of 65 mA guarantees robust blocking capability.
- Single diode configuration for versatile rectification and switching.
- Manufactured in China with no automotive certification.
Product Description
Vishay V35PW45HM3/I is a high-performance Schottky diode designed for surface mount applications requiring efficient rectification with low forward voltage drop. Featuring a 45 V peak repetitive reverse voltage and supporting a continuous forward current of 35 A, this diode meets demanding power semiconductor requirements in electronic circuits.
The diode is housed in a compact TO-252 (DPAK) package with 3 pins allowing for easy integration into PCB designs where space saving and thermal management are critical. Its maximum forward voltage of 620 mV minimizes power dissipation and enhances device reliability during operation.
Engineered for durability, the V35PW45HM3/I diode operates reliably within a temperature range of -40°C to 150°C, making it suitable for industrial, laboratory, HVAC, and manufacturing environments. It also withstands a peak non-repetitive forward surge current of 260 A, allowing transient tolerance in surge conditions.
With physical dimensions of 6.32 mm length, 6.72 mm width, and 1.4 mm height, this Schottky diode fits compact designs without compromising electrical performance. Its peak reverse current rating of 65 mA ensures effective blocking voltage capabilities needed in power circuits.
Surface mount type suitable for high-efficiency power applications. TO-252 (DPAK) 3-pin package for compact PCB layout. Low forward voltage drop of 620 mV ensures energy efficiency. Wide operating temperature range from -40°C to 150°C for industrial use.
High surge current capacity at 260 A for transient conditions. Compact dimensions for space-constrained designs. Single diode configuration for rectification and switching. Manufactured in China with quality assurance.
This Vishay Schottky diode is ideal for applications in electronic components, power supply circuits, and semiconductor discrete devices. Its robust package and electrical ratings suit demanding environments including electronic manufacturing, HVAC control, water treatment regulators, and automotive electronics that do not require automotive standard certification.
Explore more Schottky Diodes and rectifiers on EnvMart to find suitable solutions matching voltage, current, and package requirements for your industrial or laboratory projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay V35PW45HM3/I Schottky diode is 35 A.
This diode has a peak reverse repetitive voltage rating of 45 V.
It comes in a TO-252 (DPAK) package type, which is suitable for surface mount applications.
The operating temperature range for the Vishay V35PW45HM3/I is from -40°C to 150°C.
The maximum forward voltage drop is 620 mV, which helps minimize conduction losses.
The peak non-repetitive forward surge current rating is 260 A, allowing it to handle transient conditions effectively.
The physical dimensions are 6.32 mm in length, 6.72 mm in width, and 1.4 mm in height.
The peak reverse current rating is 65 mA, which ensures effective blocking capabilities.
This model utilizes a single diode configuration for rectification and switching applications.
It is suitable for applications in electronic components, power supply circuits, and semiconductor discrete devices.
The low forward voltage drop of 620 mV enhances energy efficiency and device reliability during operation.
This Schottky diode is manufactured in China.
