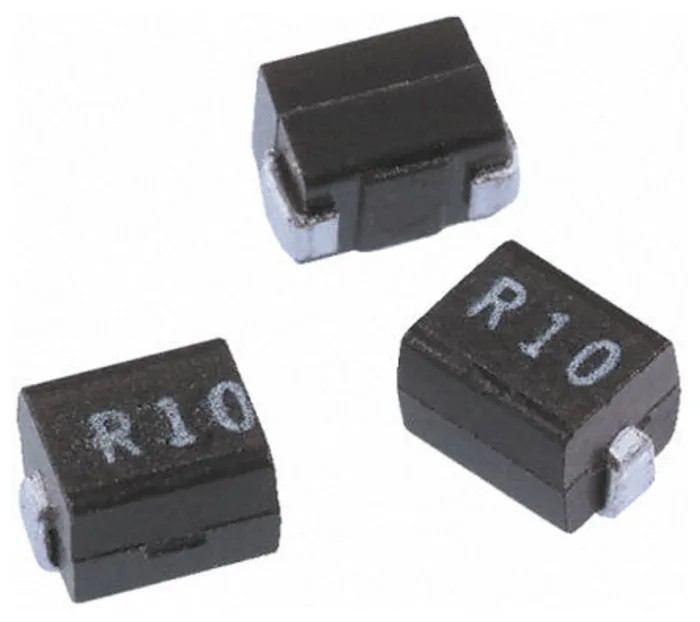

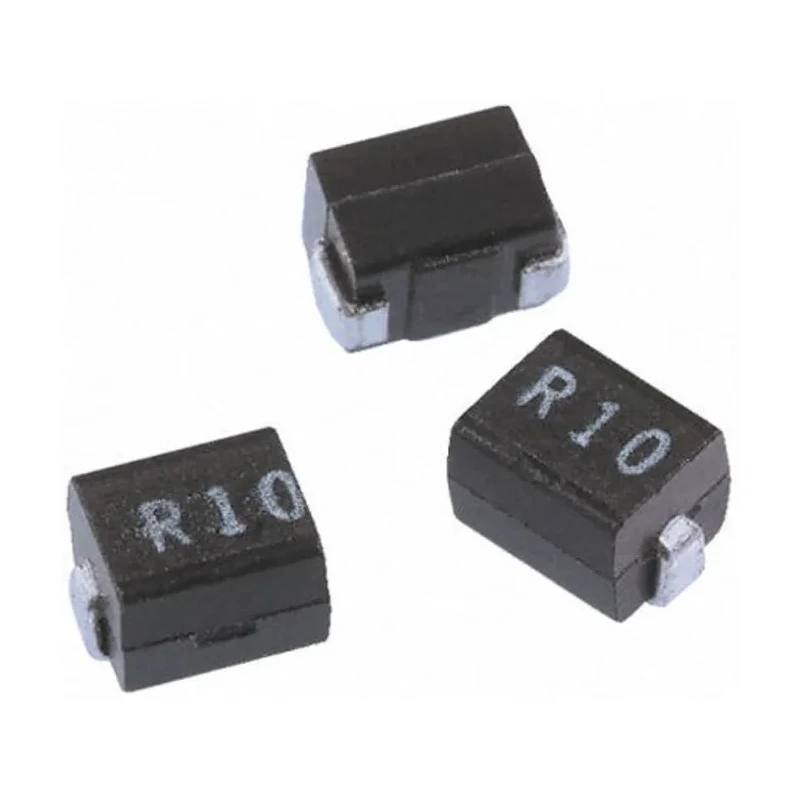

Wurth Elektronik WE-GF 1210 Shielded Wirewound Surface Mount Inductor 10 μH ±10% 150 mA 2.1 Ω 40 MHz 74476410
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.2mm |
| Length | 2.9mm |
| Model | 74476410 |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | WE-GF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Package/Case | 1210 |
| Maximum DC Current | 150mA |
| Pin Count | 2 |
| Maximum DC Resistance | 2.1Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 40MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core for superior magnetic performance.
- Features 2.1 Ω maximum DC resistance ensuring efficient current flow.
- Compact 1210 package size ideal for surface mounting on PCBs.
- Inductance tolerance of ±10% for reliable circuit performance.
- Operates reliably between -40°C and 105°C temperature range.
- Maximum self-resonant frequency is 40 MHz suitable for high frequency circuits.
- Minimum quality factor (Q) of 30 enhances signal filtering capability.
- Wirewound construction ensures durability and stability in HF circuits.
Product Description
Wurth Elektronik 74476410 WE-GF series shielded wirewound surface mount inductor offers 10 μH inductance with ±10% tolerance and a maximum DC current rating of 150 mA. This compact 1210 package device features a ferrite core and wirewound construction, delivering stable inductance and low losses for high frequency applications such as HF amplifiers, oscillators, transponders, LC filters, and tuner circuits.
The inductor has a maximum DC resistance of 2.1 Ω, operating temperature range from -40°C to 105°C, and a high self-resonant frequency of 40 MHz. It includes shielding to minimize electromagnetic interference and maximize signal integrity. The minimum quality factor of 30 ensures efficient performance in demanding electronic designs.
Designed for surface mount technology with a termination style optimized for PCB assembly, the component is supplied in a tape and reel packaging format to support automated manufacturing.
This product is ideal for use in industrial electronics, communications equipment, consumer electronics, and automotive electronic control units requiring precise inductor components.
Ferrite core material enhances magnetic characteristics and stability. Shielded wirewound design reduces EMI and increases performance. Temperature rating from -40°C to +105°C suits diverse operating environments. Compact 2.9mm length, 2.2mm height, and 2.5mm depth dimensions enable space-saving designs.
Tape and reel packaging facilitates efficient automated assembly. Explore EnvMart's comprehensive range of Surface Mount Inductors and electronic components for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with an inductance tolerance of ±10%.
This inductor has a maximum DC current rating of 150 mA.
The dimensions of this unit are 2.9 mm in length, 2.2 mm in height, and 2.5 mm in depth.
The maximum self-resonant frequency is 40 MHz, making it suitable for high-frequency applications.
It operates reliably within a temperature range of -40°C to 105°C.
This inductor features a wirewound construction which enhances its stability and performance in high-frequency circuits.
The maximum DC resistance is 2.1 Ω, ensuring efficient current flow and minimizing power losses.
The minimum quality factor (Q) is 30, which enhances its signal filtering capability.
It is supplied in a tape and reel packaging format, which supports automated manufacturing processes.
The core material is ferrite, which contributes to its superior magnetic performance.
This model is suitable for applications in HF amplifiers, oscillators, transponders, LC filters, and tuner circuits.
It utilizes a surface mount termination style, optimized for PCB assembly.
