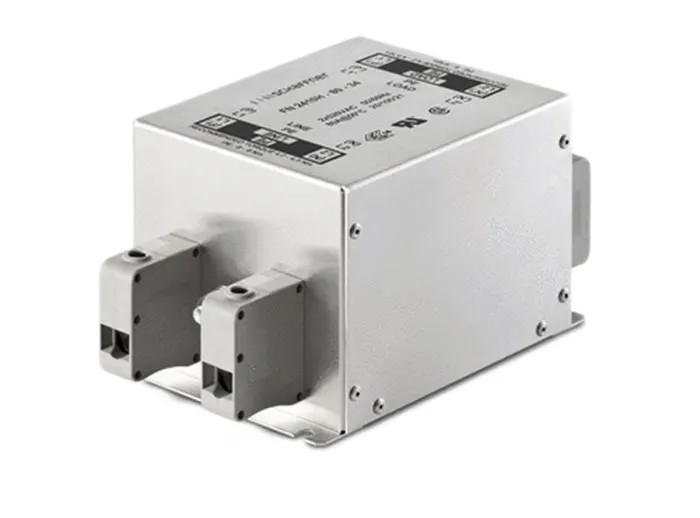

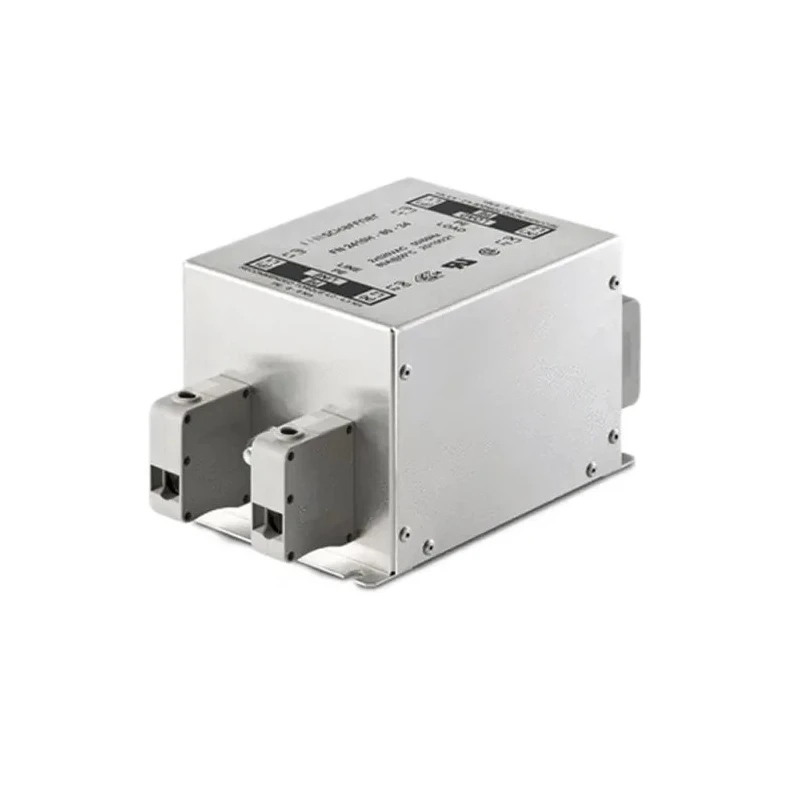

Schaffner Chassis Mount EMC Filter FN2410 60A 250V AC 400Hz with Terminal Block 1 Phase

Schaffner FN2410-60-34 Chassis Mount EMC Filter is engineered for the suppression of electromagnetic interference in electronic devices operating at 60A maximum current and 250V AC voltage with a frequency of 400Hz. The filter is mounted on chassis and terminated via a terminal block designed specifically for single-phase electrical circuits.

This EMC filter supports a single stage of interference attenuation, operating efficiently in harsh temperature environments ranging from -25°C to 100°C. Its compact size of 218mm length, 115mm depth, and 100mm height facilitates easy integration in electrical panels and equipment.

The device exhibits a very low leakage current of 3.4mA and a minimal power loss of only 5.5W, ensuring both energy efficiency and safety. It is ideal for applications with elevated interference levels, such as industrial control systems, communication equipment, and laboratory instruments requiring high-frequency noise suppression.

Schaffner's FN2410 series filters comply with stringent international standards including EN 133 200 and have received certifications such as UL1283 and CSA22.2 No.8 1986, guaranteeing reliable and certified performance.

These filters are widely used in industrial machinery, power electronics, instrumentation, and other environments where EMC compliance is crucial to maintain operational integrity and reduce disturbances.

Designed for chassis mounting with terminal block terminations. Operates reliably within temperature range from -25°C to 100°C. Features a power loss of 5.5W for efficient performance. Compact dimensions of 218mm length, 115mm depth, and 100mm height.

Ensures low leakage current of 3.4mA for electrical safety. Suitable for applications demanding high interference level filtering. Complies with standards EN 133 200 and approvals UL1283 and CSA22.2 No.8 1986. Explore more industrial-grade EMC Filters and electronic components at EnvMart to ensure optimal performance and regulatory compliance for your projects.
