Nexperia Digital Transistor 100 mA NPN + PNP, 50 V, 6-Pin UMT PUMD9,115

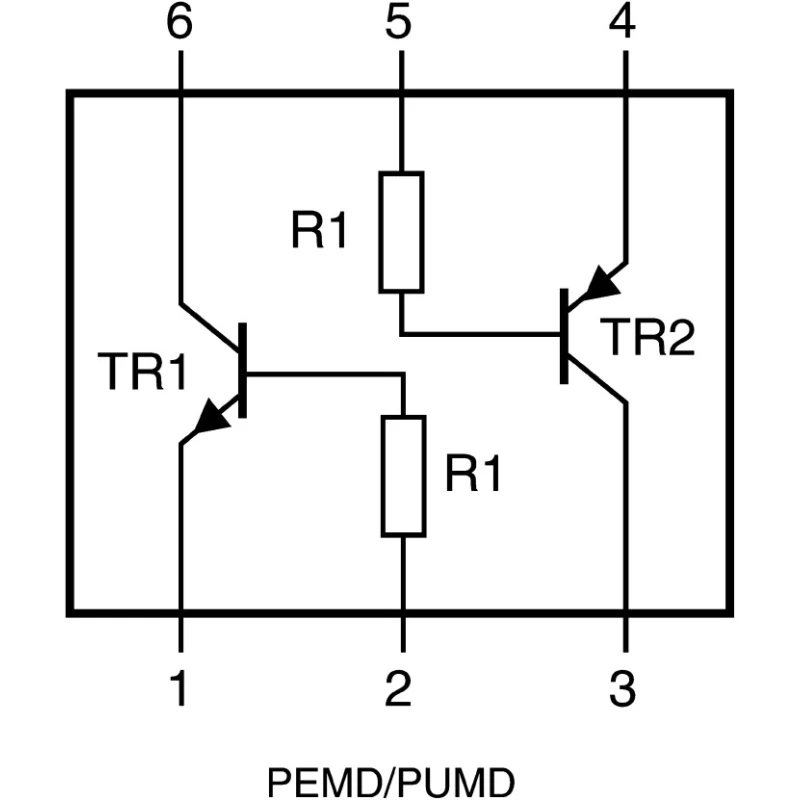

Nexperia PUMD9,115 is a digital transistor featuring combined NPN and PNP transistors equipped with built-in bias resistors in a compact 6-pin UMT surface mount package. Rated for a maximum collector current of 100 mA and collector-emitter voltage of 50 V, it is designed for efficient low current peripheral driving and control of IC inputs in electronic circuits.

This transistor simplifies circuit design by reducing the need for external resistors, decreases board component count, and reduces pick and place costs. The device supports high-frequency switching with a maximum transition frequency of 230 MHz, making it suitable for digital switching applications.

Its robust operational parameters include an operating temperature range from -65°C to 150°C and a maximum power dissipation of 200 mW, allowing reliable operation under demanding industrial conditions. The transistor's isolated configuration and multiple pins provide flexibility in circuit design.

The physical dimensions - length of 2.2 mm, width of 1.35 mm, and height of 1 mm - make it ideal for compact electronic assemblies requiring surface mount technology.

The product complies with RoHS standards ensuring environmental compliance. Manufactured in Malaysia, this transistor is suitable for industrial electronics, consumer devices, and control systems.

Maximum DC collector current of 100 mA for versatile low-power applications. Collector-emitter voltage rating of 50 V ensuring robust performance. Built-in bias resistors simplify circuit design and reduce component count.

Surface mount technology (UMT) package with 6 pins for compact PCB layouts. High transition frequency of 230 MHz supports fast switching operations. Wide operating temperature range from -65°C to 150°C. Isolated transistor configuration with combined NPN and PNP polarity.

Low power dissipation capability of 200 mW. Dimensions of 2.2 mm length, 1.35 mm width, and 1 mm height for space-efficient designs. RoHS compliant for environmental safety.

Ideal for use in industrial, laboratory, consumer electronics, and manufacturing applications where efficient digital switching is required. Explore more Nexperia semiconductor components and Digital Transistors in our extensive catalog at EnvMart.
