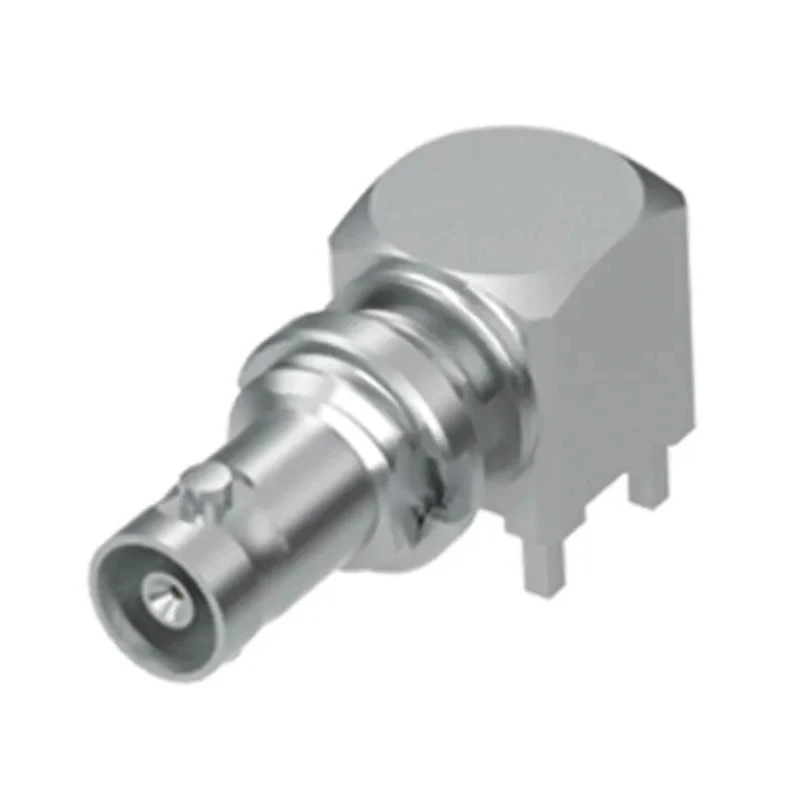

Samtec HD-BNC Series Coaxial Connector PCB Female BNC 75 Ω Right Angle Body Through Hole HDBNC-J-P-gN-RA-BH1
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Samtec |
| Orientation | Right Angle |
| Model | HDBNC-J-P-gN-RA-BH1 |
| Mount Type | PCB |
| Operating Frequency | 6GHz |
| Contact Material | Copper Alloy |
| Series | HD-BNC |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Cable Type | Microwave |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Gold |
Key Features
- The connector features a traditional quarter turn bayonet coupling mechanism for secure connections.
- Designed for PCB mounting with a compact size to increase board population.
- Offers operating frequency up to 6 GHz suitable for microwave cables.
- Constructed with copper alloy contact material and gold plating for durability and conductivity.
- Supports a wide operating temperature range from -65°C to 125°C.
- The product is from the HD-BNC series, ensuring high density and performance.
- Polarity is normal and the connector gender is female, compatible with standard BNC components.
Product Description
Samtec HDBNC-J-P-gN-RA-BH1 is a high-density HD-BNC series coaxial connector designed for PCB mounting. This female BNC connector offers a 75 Ω impedance with a right angle body, making it ideal for applications requiring compact and reliable microwave signal connections. The through-hole termination ensures strong mechanical stability to the PCB.
The connector features the traditional quarter turn bayonet coupling mechanism, widely recognized for its simplicity and secure connection. It supports an operating frequency up to 6 GHz, accommodating microwave cable use in instrumentation, broadcasting, security, and telecom industries.
Fabricated with copper alloy contacts and plated with gold, this connector guarantees excellent conductivity and resistance to corrosion. The body plating is also gold, enhancing durability and signal integrity in demanding environments. Its operating temperature spans -65°C to 125°C, suitable for various industrial conditions.
The product belongs to the HD-BNC series known for its compact size, allowing up to four times the component board population compared to conventional BNC connectors. Its right angle orientation facilitates flexible PCB layouts. This connector is designed for normal polarity and female contact gender.
The connector utilizes a gold-plated copper alloy contact for superior conductivity. It supports microwave cable types and standard size specifications. Designed to meet application requirements in telecom and broadcast industries.
Enables a compact PCB footprint with right angle mounting. Operates reliably across a wide temperature range. Body and contact plating in gold for resistance to corrosion. Through hole termination provides mechanical stability on PCBs.
This Samtec HD-BNC Series Coaxial Connector is suited for demanding industrial, instrumentation, broadcast, security, and telecom environments. Its high frequency capability and robust construction ensures performance and durability.
Explore the full Samtec range and similar Coaxial Connectors within EnvMart’s electronics and electrical components category to find compatible parts and accessories.
