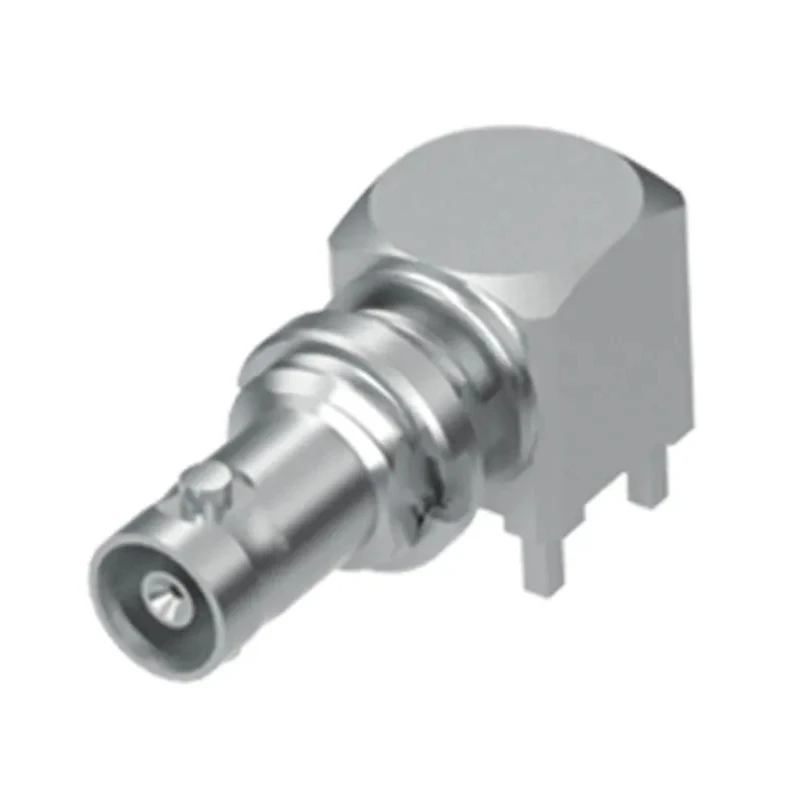

Samtec HD-BNC Series Coaxial Connector PCB Female BNC, 75 Ω, Right Angle Body, Through Hole Mount HDBNC-J-P-gN-RA-BH2
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Samtec |
| Orientation | Right Angle |
| Model | HDBNC-J-P-gN-RA-BH2 |
| Mount Type | PCB |
| Operating Frequency | 6GHz |
| Contact Material | Copper Alloy |
| Series | HD-BNC |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Cable Type | Microwave |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Gold |
Key Features
- High-density 75 Ω BNC coaxial connector suitable for PCB mount applications.
- Right angle orientation for optimized board layout and space saving.
- Gold plated body and contact for enhanced conductivity and corrosion resistance.
- Operating frequency of up to 6 GHz suitable for microwave cable type applications.
- Robust copper alloy contact material ensures durability and reliability.
- Through hole termination provides secure mechanical connection to PCB.
- Operating temperature range from -65°C to 125°C for versatile environmental performance.
- Compact design allowing increased component board population up to 4x standard size.
Product Description
Samtec HDBNC-J-P-gN-RA-BH2 is a high-density 75 Ω BNC series coaxial connector designed for PCB mounting with a female contact and right angle body. This connector utilizes a through hole termination type providing secure and robust mechanical attachment to printed circuit boards. The gold plating on both the body and the copper alloy contacts ensures superior electrical conductivity and corrosion resistance, vital for high-frequency signal integrity.
Operating with an impedance of 75 Ω and supporting frequencies up to 6 GHz, it is suitable for microwave cable type configurations often used in RF applications. The connector is rated for a wide temperature range from -65°C to 125°C, making it fit for demanding industrial environments.
The right angle body design optimizes circuit board space allowing increased component density up to four times that of conventional BNC connectors, thus boosting board layout efficiency and miniaturization.
Applications include instrumentation, broadcast systems, security devices, and telecommunications equipment, where reliable coaxial connections with precise impedance matching are critical.
High-density 75 Ω BNC Coaxial Connector suitable for PCB mount applications. Right angle orientation for optimized board layout and space saving. Gold plated body and contact for enhanced conductivity and corrosion resistance.
Operating frequency of up to 6 GHz suitable for microwave cable type applications. Robust copper alloy contact material ensures durability and reliability. Through hole termination provides secure mechanical connection to PCB.
Operating temperature range from -65°C to 125°C for versatile environmental performance. Compact design allowing increased component board population up to 4x standard size. Supports instrumentation, broadcast, security, and telecom industry applications.
Samtec is renowned for quality and innovation in connector technologies, offering comprehensive mechanical and electrical design support for your PCB coaxial connection requirements. Browse EnvMart’s electronics components for a wide range of Samtec connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This BNC connector supports a maximum operating frequency of up to 6 GHz, making it suitable for microwave cable type applications.
The impedance rating of this model is 75 Ω, which is standard for coaxial connectors used in RF applications.
It utilizes a through hole termination type, providing a secure mechanical connection to printed circuit boards.
The operating temperature range for this connector is from -65°C to 125°C, allowing it to perform in various environmental conditions.
The contacts are made from copper alloy and are gold plated, which enhances conductivity and provides corrosion resistance.
The right angle orientation optimizes board layout and saves space, allowing for increased component density up to four times that of standard BNC connectors.
The contact gender of this connector is female, which is standard for BNC connectors.
It is suitable for applications in instrumentation, broadcast systems, security devices, and telecommunications equipment.
The body of this connector is also gold plated, which contributes to its electrical conductivity and corrosion resistance.
This model is classified as a standard size connector, suitable for typical PCB mount applications.
The connector is manufactured in India, which is noted in its country of origin.
This connector belongs to the HD-BNC series, which is known for high-density applications.
