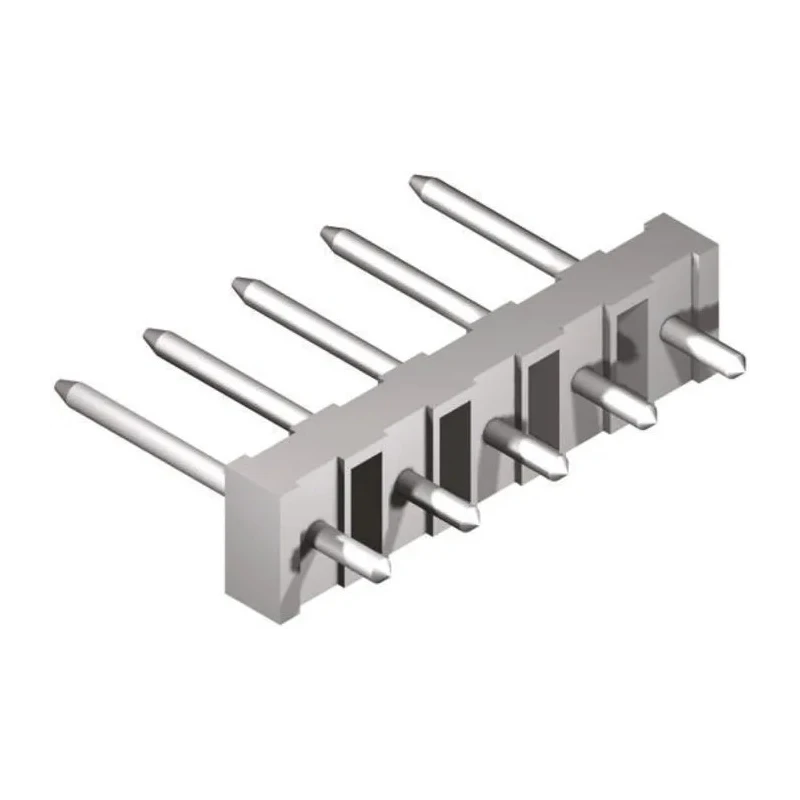

Molex KK 508 Series Straight Through Hole Pin Header 6 Contacts 5.08 mm Pitch 1 Row Unshrouded 10-08-1061
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | KK 508 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.94mm |
Key Features
- Designed for economical and reliable wire-to-board and board-to-board interconnections.
- Features brass contacts plated with tin to ensure durability and conductivity.
- Suitable for operating temperatures ranging from -40°C to 80°C.
- Rated for a current of 7 amperes and voltage up to 250 volts.
- Through hole mount type enhances mechanical stability during soldering.
- Contact tail pin length measures 3.94 mm for secure solder termination.
- Unshrouded design allows easy access for mating connectors.
- Compatible with 3001 and 5058 Series housings, and 3002 Series PC Board connectors.
Product Description
Molex 10-08-1061 KK 508 Series Straight Through Hole Pin Header is designed to provide reliable and efficient electrical connections in electronic assemblies. This pin header features 6 male contacts arranged in a single straight row with a 5.08 mm pitch. It is unshrouded, facilitating easy insertion and removal of connectors in various PCB applications.
Constructed with brass contact material plated with tin, this connector ensures excellent electrical performance and corrosion resistance. The through-hole mount provides robust mechanical fixation during soldering, ideal for applications requiring durable connections.
Operating efficiently within a temperature range of -40°C to 80°C, the pin header is rated for 7A current and 250V voltage, making it suitable for various industrial and electronic device applications. The tail pin length of 3.94 mm ensures secure solder joints, enhancing reliability throughout the product lifespan.
This KK 508 series interconnection system supports board-to-board and wire-to-board configurations and is compatible with Molex 3001, 5058, and 3002 series connectors, making it a versatile choice for circuit board designs where creepage and clearance requirements are critical.
Designed for economical and reliable wire-to-board and board-to-board interconnections. Features brass contacts plated with tin to ensure durability and conductivity. Suitable for operating temperatures ranging from -40°C to 80°C.
Rated for a current of 7 amperes and voltage up to 250 volts. Through hole mount type enhances mechanical stability during soldering. Contact tail pin length measures 3.94 mm for secure solder termination. Unshrouded design allows easy access for mating connectors.
Compatible with 3001 and 5058 Series housings, and 3002 Series PC Board connectors.
This component is ideal for use in electronics manufacturing, PCB assembly, automation equipment, and other industrial applications requiring reliable electrical connections. Choose Molex KK 508 series to ensure durable and high-performance connectivity in your designs.
Explore more electronic components and PCB Headers available at EnvMart for industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 250 volts.
This model is rated for a current of 7 amperes.
The pitch size of the contacts is 5.08 mm.
It operates efficiently within a temperature range of -40°C to 80°C.
This pin header features 6 male contacts arranged in a single row.
It uses a through-hole mount type, which enhances mechanical stability during soldering.
The contact tail pin length measures 3.94 mm.
The contacts are made of brass and plated with tin to ensure conductivity and corrosion resistance.
Yes, it is compatible with Molex 3001, 5058, and 3002 series connectors.
This model supports board-to-board and wire-to-board configurations.
The orientation of the contacts is straight.
The country of origin for this pin header is China.
