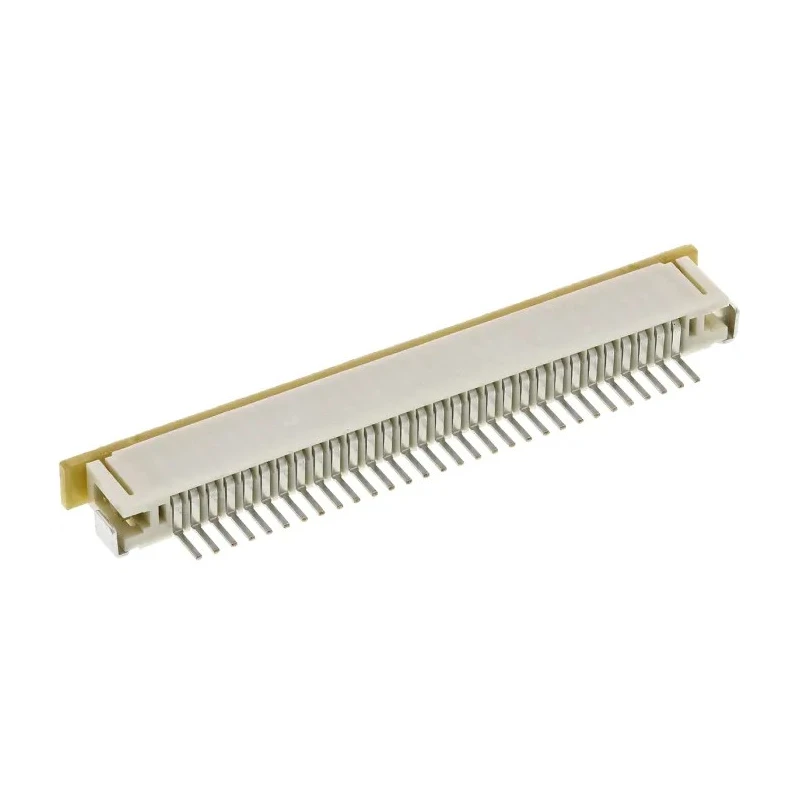

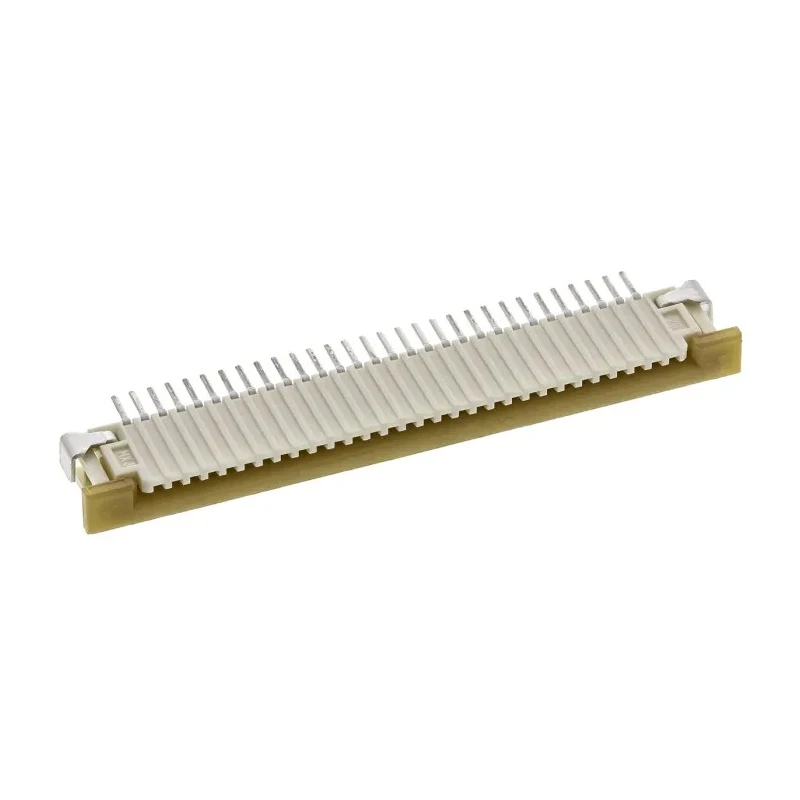

Molex 1 mm Pitch 30 Way Right Angle Female Easy-On FFC/FPC Connector, Solder 52271-3079
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52271 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth Alloy |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Compact 1.00 mm pitch with 30 contacts for precise electronic connections.
- Right angle orientation with bottom contact position for space-saving PCB layouts.
- Uses ZIF (Zero Insertion Force) slide-type actuator for easy and secure FPC insertion.
- Constructed with phosphor bronze contacts plated with tin bismuth alloy ensuring durability.
- Housing crafted from nylon material providing insulation and mechanical strength.
- Supports operating voltage of up to 50V AC and current rating of 500mA.
- Operating temperature range from -40°C up to 85°C suitable for diverse environments.
- Includes solder tabs for secure PCB retention and strain relief on solder tail joints.
Product Description
Molex 52271-3079 Easy-On FFC/FPC Connector features a 1 mm pitch with a total of 30 female contacts arranged in a right angle orientation. Designed for solder termination, this surface mount connector ensures reliable connections in compact electronic devices.
The connector’s Zero Insertion Force (ZIF) slide-type actuator mechanism allows for secure yet easy insertion and removal of FPC cables, reducing wear during repeated cycling. Its bottom contact position and nylon housing enable a space-saving design ideal for tight packaging environments.
Constructed with phosphor bronze contact material and tin bismuth alloy plating, the connector provides excellent durability and ensures consistent signal transmission. The connector supports an operating current of 500mA and voltage rating of 50V AC, functioning reliably within temperatures ranging from -40°C to 85°C.
The presence of solder tabs on the right angle mounting base provides secure PCB retention and strain relief for the solder joints, enhancing mechanical stability under vibration or movement.
These connectors are widely used in automotive navigation systems, digital cameras, home security devices, tablets, notebooks, medical patient monitors, GPS units, smartphones, and other consumer electronics requiring secure and compact FPC connections.
Compact 1.00 mm pitch with 30 contacts for precise electronic connections. Right angle orientation with bottom contact position for space-saving PCB layouts. Uses ZIF (Zero Insertion Force) slide-type actuator for easy and secure FPC insertion.
Constructed with phosphor bronze contacts plated with tin bismuth alloy ensuring durability. Housing crafted from nylon material providing insulation and mechanical strength. Supports operating voltage of up to 50V AC and current rating of 500mA.
Operating temperature range from -40°C up to 85°C suitable for diverse environments. Includes solder tabs for secure PCB retention and strain relief on solder tail joints. Ideal for automotive, medical, datacommunications, and consumer electronics applications.
Explore the complete range of high-quality FPC Connectors at EnvMart for industrial and commercial electronics assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector features a 1.00 mm pitch with a total of 30 female contacts.
It supports a maximum operating voltage of 50V AC and a current rating of 500mA.
The housing is made from nylon, while the contacts are constructed from phosphor bronze and plated with a tin bismuth alloy.
It operates within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
The ZIF slide-type actuator allows for easy and secure insertion and removal of FPC cables, reducing wear during repeated use.
This model uses surface mounting for installation on PCBs.
The connector is designed with a right angle orientation, which is ideal for space-saving PCB layouts.
It is widely used in automotive navigation systems, digital cameras, home security devices, tablets, notebooks, medical monitors, GPS units, smartphones, and other consumer electronics requiring secure FPC connections.
This connector features a solder termination type, ensuring reliable connections.
The contact position is at the bottom, which supports the right angle orientation.
The presence of solder tabs on the right angle mounting base provides secure PCB retention and strain relief for the solder joints, enhancing mechanical stability under vibration or movement.
This connector belongs to the Molex 52271 series.
