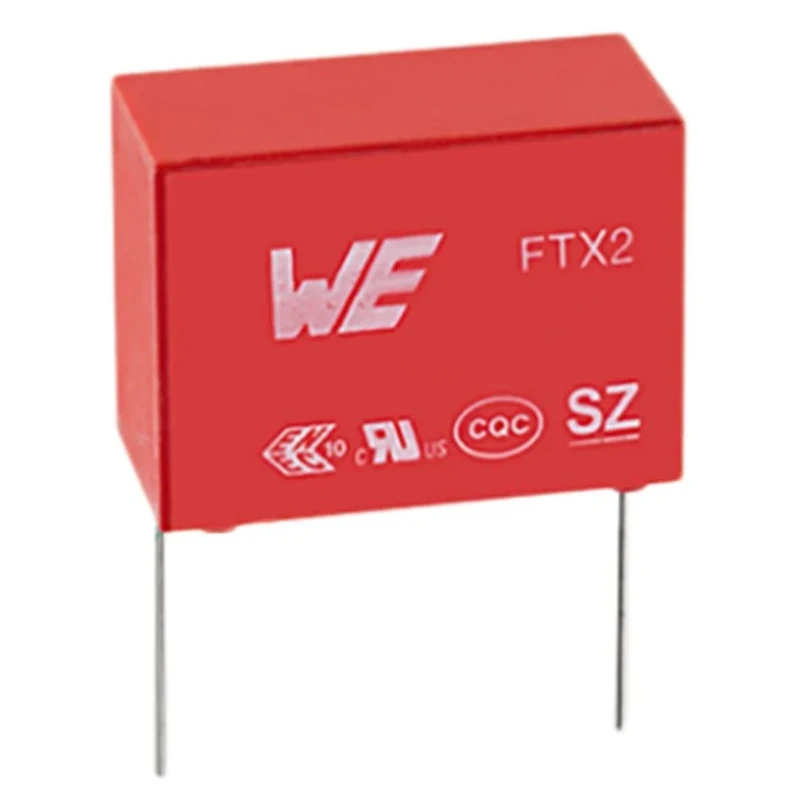

Wurth Elektronik WCAP-FTX2 Film Capacitor X2, ±10 %, 10 nF, 275 V dc, 275 V ac, Through Hole

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WCAP-FTX2 Film Capacitor X2, ±10 %, 10 nF, 275 V dc, 275 V ac, Through Hole

Name: Wurth Elektronik WCAP-FTX2 Film Capacitor X2, ±10 %, 10 nF, 275 V dc, 275 V ac, Through Hole
Brand: Wurth Elektronik
SKU: 192129
Price: 0.31 USD
Availability: InStock



Category Film Capacitor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Brand	Wurth Elektronik
Operating Temperature	-40 °C to +105°C
Height	11mm
Length	13mm
Model	FTX2
Width	5mm
Mount Type	Through Hole
Series	WCAP-FTX2
Maximum Operating Temperature	105°C
Tolerance	±10 %
Capacitance	10nF
Minimum Operating Temperature	-40°C
Terminal type	Radial
Dissipation Factor	0.5%
Lead Length	20mm
Standards/Approvals	cULus, CQC, ENEC, VDE
Package/Case	500
Rated AC Voltage	275V ac
Rated DC Voltage	275V dc
Lead Pitch	10mm
Lead Diameter	0.6mm
Applications include	Safety applications, Filter and Power Supplies
Suppression Class	X2

Key Features

Capacitance of 10 nanofarads with a tolerance of ±10 percent.
Rated AC voltage of 275 volts and DC voltage of 275 volts for versatile applications.
Through-hole mounting type with radial terminal and 10 mm lead pitch.
Operating temperature range from -40°C up to +105°C ensuring durability.
Encapsulated in self-extinguishing UL94V-0 compliant material for safety.
Suitable for EMI filters, interference suppression, and safety applications.
Lead length measures 20 mm with 0.6 mm diameter for stable soldering.
Compliance with standards including cULus, CQC, ENEC, and VDE.

Product Description

Wurth Elektronik FTX2 Film Capacitor, model number 890324023006, is a high-quality polypropylene Film Capacitor designed for through-hole mounting applications.

This capacitor features a capacitance of 10 nanofarads with a precise tolerance of plus or minus 10 percent. It operates reliably at rated voltages of 275 volts for both alternating current (AC) and direct current (DC), making it suitable for various electronic circuitry including EMI filtering, interference suppression coils, and safety power supplies.

The component is designed with radial terminals and a 10 mm lead pitch, accompanied by a 20 mm lead length and 0.6 mm lead diameter, allowing for secure wave soldering and stable mechanical connections on printed circuit boards.

Operating effectively within a temperature range from -40°C to +105°C, the capacitor is constructed using self-healing MKP metallized polypropylene film encapsulated in a self-extinguishing UL94V-0 rated material to ensure compliance with fire safety standards.

It measures 13 mm in length, 11 mm in height, and 5 mm in width, making it compact yet reliable for demanding applications. This product meets internationally recognized standards including cULus, CQC, ENEC, and VDE, verifying its quality and safety credentials.

Capacitance of 10 nanofarads with ±10% tolerance. Through-hole mounting with radial terminals and 10 mm lead pitch. Rated for 275 V AC and 275 V DC operation. Temperature range from -40°C to +105°C supports broad applications.

Self-extinguishing encapsulation meeting UL94V-0 standards. Suitable for EMI filters, interference suppression, and safety circuits. Compact dimensions with 13 mm length, 11 mm height, and 5 mm width. Compliant with cULus, CQC, ENEC, and VDE standards.

Dissipation factor of 0.5 percent for energy efficiency.

This Wurth Elektronik capacitor is ideal for use in industrial electronics, electrical equipment manufacturing, and safety-critical systems requiring reliable EMI suppression and power filtering. It offers consistent performance and meets rigorous quality standards, providing confidence in commercial and laboratory applications.
