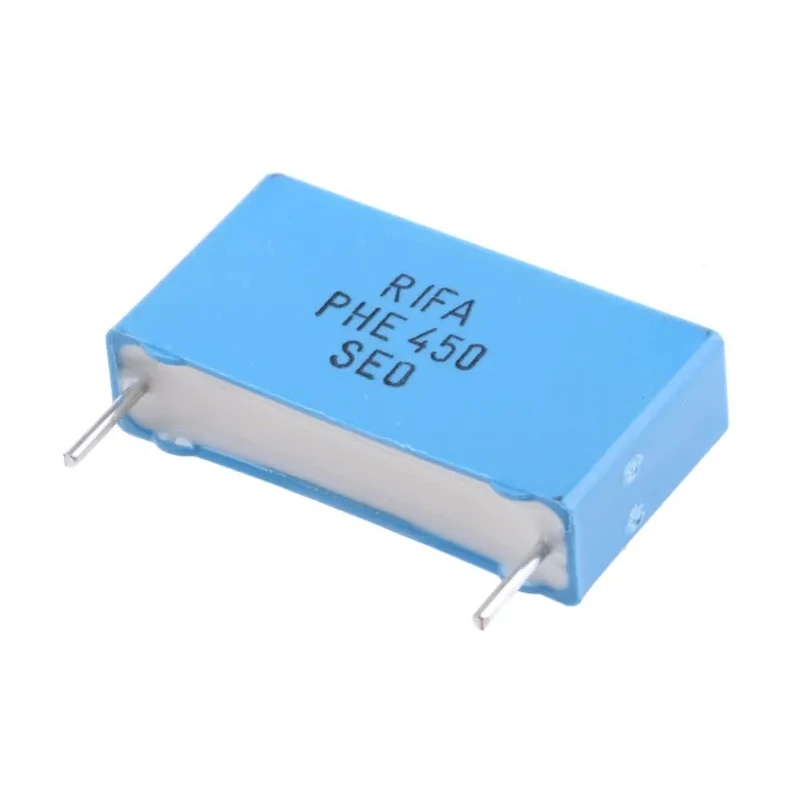

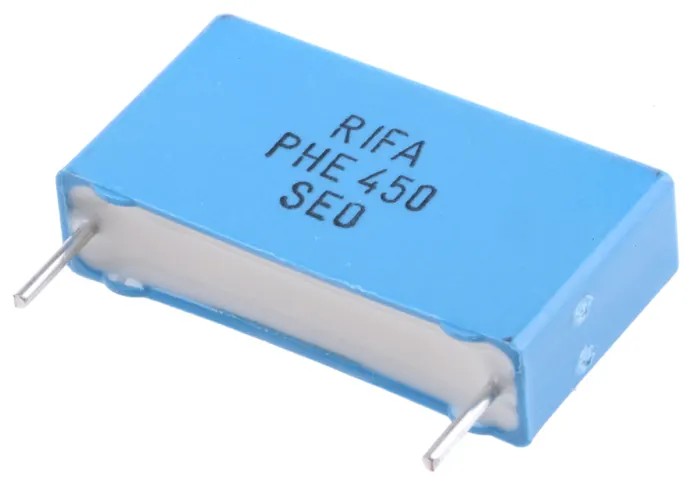

KEMET PHE450 Metallized Polypropylene Film Capacitor, 100 nF, ±5 %, 630 V DC, 180 V AC, Radial Through Hole

KEMET PHE450 PHE450MD6100JR06L2 metallized polypropylene film capacitor is designed for robust electronic circuit protection and pulse handling in industrial and commercial applications. This capacitor features a capacitance of 100 nF with a tight tolerance of ±5 %, delivering reliable performance at rated voltages of 630 V DC and 180 V AC. The radial through hole mount and lead pitch of 22.5 mm ensure easy PCB integration.

Constructed with double metallized polypropylene film, it is encapsulated within a self-extinguishing resin that meets UL 94 V-0 requirements, providing enhanced safety in demanding environments. The capacitor operates reliably from -55°C to 105°C, suited for use in automotive, power supply, and snubber circuits.

Its low dissipation factor of 0.0003 % and high temperature tolerance contribute to stable performance in pulse circuits. The product is packaged on tape and reel, supporting automated assembly processes in manufacturing.

Applications include switch mode power supplies, deflection circuits in televisions, and other electronic devices requiring stable capacitance and voltage endurance under high current stress.

This Film Capacitor is designed with radial leads and a pin count of 2 for standard through hole insertion. Lead length is 6 mm and diameter is 0.8 mm for secure soldering and mechanical stability. It complies with the RoHS directive, ensuring environmentally responsible production.

KEMET’s PHE450 series capacitors are noted for their consistent quality and reliability in industrial electronics. Tape & reel packaging assists efficient manufacturing line integration. Discover the extensive range of KEMET electronic components and capacitors on EnvMart to enhance your project’s reliability and performance.
