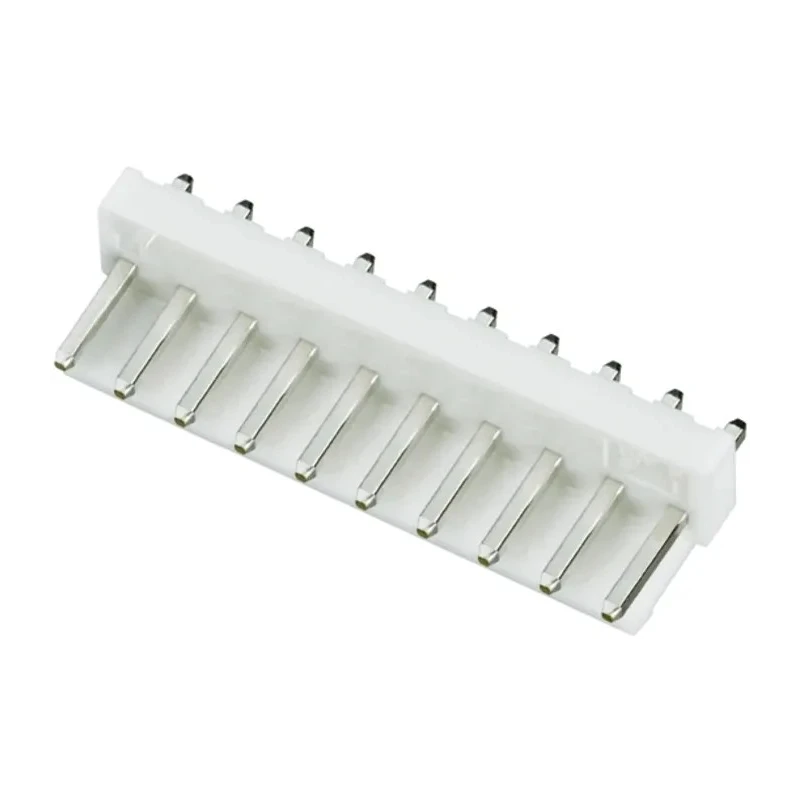

JST VH Series Top Entry Through Hole PCB Header 10 Contacts 3.96 mm Pitch 1 Row Shrouded B10P-VH(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST VH Series Top Entry Through Hole PCB Header 10 Contacts 3.96 mm Pitch 1 Row Shrouded B10P-VH(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Top Entry
Current	10A
Temperature range	-25 → 85 °C
Model	B10P-VH(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	VH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	3.96mm
Header Material	PA66 UL94V-0, natural
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	7.7mm

Key Features

The header features a polyamide housing providing durability and heat resistance.
It has a current rating of 10A suitable for power and signal circuit applications.
The connector is designed for through hole mount on 1.6 mm thick PCBs.
Operating temperature ranges from -25°C to 85°C ensuring reliability in various environments.
Contacts are brass with tin plating to ensure corrosion resistance and reliable solder termination.
The connector system is wire-to-board with a male contact gender.
The pitch between contacts is 3.96 mm, with a single row configuration for compact PCB layout.
Secure friction-lock design allows reliable mating with compatible crimp housings.

Product Description

JST B10P-VH(LF)(SN) VH Series Top Entry Through Hole PCB Header is engineered as a wire-to-board connector with 10 male contacts arranged in a single row on a 3.96 mm pitch. It is constructed with a polyamide housing rated UL94V-0, providing excellent durability and flame resistance. This shrouded header enables secure solder termination, optimized for through hole PCB mounting thickness of 1.6 mm.

With a current rating of 10A and voltage capacity of 250V, this PCB header is suitable for power supply, signal, and output circuit applications. The connector operates reliably in temperature ranges from -25°C to 85°C, suitable for various industrial and commercial electronic environments.

The brass contacts plated with tin ensure corrosion resistance and stable electrical performance. The friction-lock design of the VH series connectors allows for secure mating with complementary crimp housings, enhancing connection reliability.

This connector has a mating pin length of 7.7 mm and is designed for top entry orientation, ideally fitted for compact and efficient PCB layouts. The shrouded design prevents accidental contact and increases safety in applications requiring robust electrical insulation.

The polyamide PA66 UL94V-0 natural housing material provides flame retardance and durability. The connector system is wire-to-board with a male contact gender and soldered termination. Mating with VH Series Crimp Housings enables modular and flexible wiring configurations.

Applications include industrial electronics, power supplies, measurement equipment, and communication systems. This PCB header complies with no additional standards or approvals but is RoHS compliant by design. Choose JST VH Series headers for reliable, secure wire-to-board connectivity in demanding industrial, laboratory, construction, and manufacturing environments.
