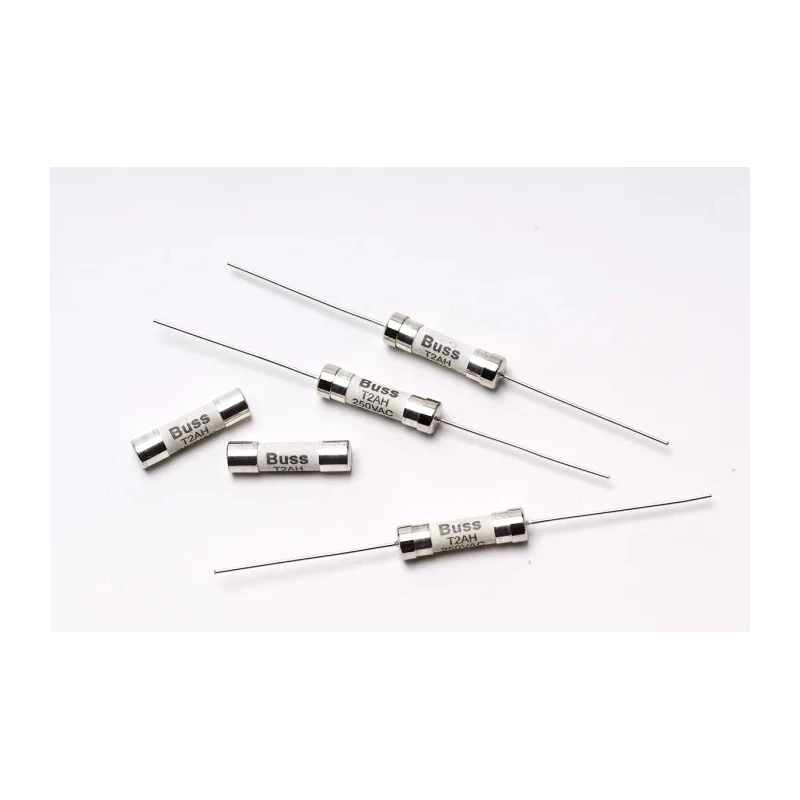

Eaton 2A T Ceramic Cartridge Fuse 5 x 20 mm 250V AC Time Delay S505H-V-2-5-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Ceramic |
| Model | S505H-V-2-5-R |
| Overall Length | 20mm |
| Current Rating | 2A |
| Series | S505H |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | PSE, IEC 60127-2, cURus, CCC |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
| Application Category | Time Delay |
Key Features
- The ceramic body enables operation at elevated temperatures and enhances durability.
- Supports a continuous current rating of 2 amps with a voltage rating of 250V AC.
- Time-delay fuse characteristic allows transient surge currents without nuisance blowing.
- Fuse dimensions are 5 mm diameter by 20 mm overall length, fitting standard 5x20 mm fuse holders.
- Operational temperature range spans from -40°C to +85°C, suitable for demanding industrial environments.
- Ideal for protecting power supplies in industrial controllers and automated machinery electronics.
- Certified to IEC 60127-2 and other international standards including PSE, cURus, and CCC.
- Compatible with panel-mounted and internal power circuitry applications requiring time-delay protection.
Product Description
Eaton S505H-V-2-5-R Ceramic Cartridge Fuse is a 2 amperes, time-delay fuse with a 5 x 20 mm ceramic body size, rated for 250 volts AC operation. This fuse offers reliable protection for low-voltage electronic and electrical systems by providing time-delayed overcurrent protection to prevent nuisance blowing during transient current surges.
The ceramic construction allows for elevated temperature endurance, making it suitable for demanding industrial and commercial applications with ambient temperatures ranging from -40°C to +85°C.
This fuse is designed with a 5 mm diameter and 20 mm length to fit standard 5x20 mm fuse holders, ensuring easy installation in panel-mounted or internal power circuits. The time-delay (slow-blow) characteristic is ideal for circuits with transient surges such as those found in industrial controllers and automated machinery electronics.
Certified to IEC 60127-2 and other international safety standards including PSE, cURus, and CCC, this fuse meets stringent quality and performance requirements for international use.
The ceramic body provides thermal endurance and mechanical strength. 2A current rating ensures reliable circuit protection under normal operational loads. Time-delay feature prevents nuisance blowing during momentary surge currents.
Broad temperature operating range suits harsh environments. Compatible with standard 5x20 mm fuse holders for versatile application. Applications include industrial power supplies, automated machinery electronics, and measurement & control circuits.
This fuse is ideal for safeguarding sensitive electrical and electronic equipment. This product is part of the Eaton S505H series, formerly known under the Bussmann brand, well-known for quality and dependability in circuit protection.
Explore more Eaton Cartridge Fuses and related products in the Electronics & Electricals category at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a continuous current rating of 2 amps.
It is rated for operation at 250 volts AC.
The fuse has a diameter of 5 mm and an overall length of 20 mm, fitting standard 5x20 mm fuse holders.
The operational temperature range spans from -40°C to +85°C, making it suitable for demanding environments.
It features a time-delay characteristic, allowing it to handle transient surge currents without nuisance blowing.
It is certified to IEC 60127-2 and other international standards including PSE, cURus, and CCC.
The fuse body is made of ceramic, which enhances durability and allows operation at elevated temperatures.
It is ideal for protecting power supplies in industrial controllers and automated machinery electronics.
The time-delay feature prevents nuisance blowing during momentary surge currents, providing reliable circuit protection.
This model is part of the Eaton S505H series.
Yes, it is designed to fit standard 5x20 mm fuse holders for easy installation.
The country of origin for this product is India.
