Wurth Elektronik WE-SL3 Surface Mount Common Mode Line Filter with Ferrite Core 22μH Dual Inductor 700mA 744252220

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-SL3 Surface Mount Common Mode Line Filter with Ferrite Core 22μH Dual Inductor 700mA 744252220

Name: Wurth Elektronik WE-SL3 Surface Mount Common Mode Line Filter with Ferrite Core 22μH Dual Inductor 700mA 744252220
Brand: Wurth Elektronik
SKU: 191723
Price: 2.94 USD
Availability: InStock



Category Surface Mount Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	2.5mm
Length	9.2mm
Depth	6.6mm
Packaging	Tape & Reel
Series	WE-SL3
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Interfaces	USB, firewire, data and power lines
Core Material	Ferrite
Inductance	22μH
Standards/Approvals	UL 94 V0
Maximum DC Current	700mA
Maximum DC Resistance	140mΩ
Inductance Tolerance	-30 to 50 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	100kHz
Inductor Construction	Dual
Automotive Standard	AEC-Q200

Key Features

The filter features a ferrite core construction providing effective EMI reduction.
Inductance tolerance ranges from -30 to +50 percent to accommodate varied circuit needs.
Supports a maximum direct current (Idc) of 700mA for robust performance.
Designed for surface mount technology with tape and reel packaging for assembly automation.
Complies with automotive standard AEC-Q200 ensuring reliability in harsh environments.
Temperature operational range from -40°C to 125°C suitable for demanding industrial applications.
Inductor type is dual construction enhancing noise suppression in data and power lines like USB and firewire.

Product Description

Wurth Elektronik 744252220 Surface Mount Common Mode Line Filter is a compact and reliable electronic component designed for suppressing electromagnetic interference in sensitive circuits. This line filter incorporates a ferrite core, dual inductors, and offers 22μH inductance with a tolerance of -30 to +50 percent. Its maximum direct current rating of 700mA makes it suitable for data and power line applications such as CAN bus, USB, Firewire, and other communication interfaces.

Manufactured to automotive AEC-Q200 standard, this filter ensures high reliability and durability in automotive and industrial environments. The component features a tape and reel packaging format optimized for surface mount technology (SMT) automated assembly processes, improving manufacturing efficiency.

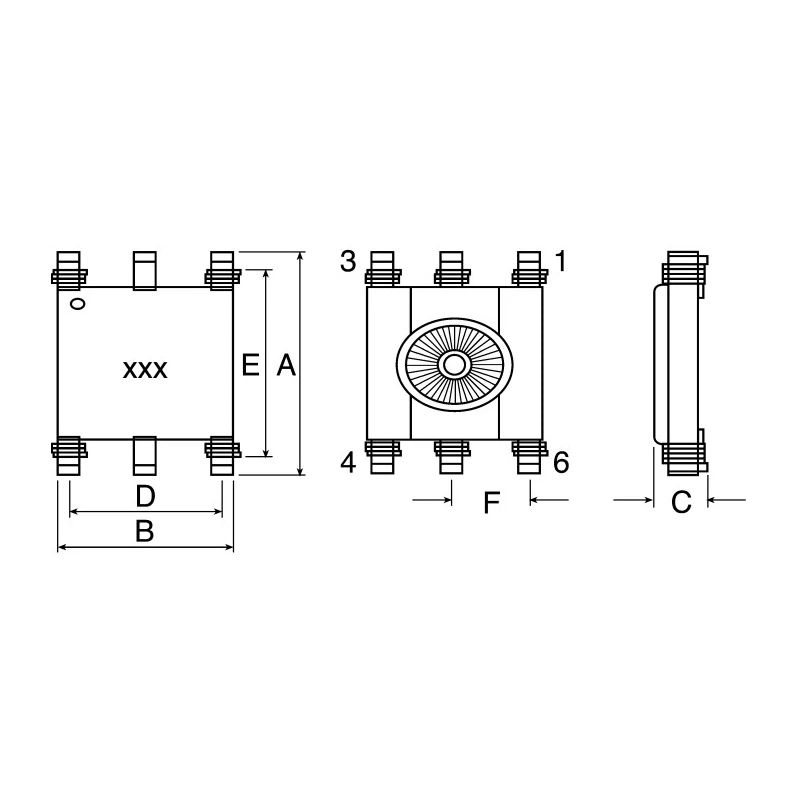

With dimensions of 9.2mm length, 6.6mm depth, and 2.5mm height, it is ideal for compact PCB designs. The operating temperature range of -40°C to 125°C enables its use under extreme temperature conditions in industrial and commercial electronics.

The dual inductor construction combined with the ferrite core material offers low stray and leakage inductance, improving EMI suppression performance across frequencies up to 100kHz self-resonant frequency. The product housing complies with UL 94 V0 flammability standards, ensuring safety compliance.

Key applications include noise filtering on power lines and data communication lines in industrial automation, automotive electronics, telecom equipment, and other precision electronic devices. It assists in maintaining signal integrity and reducing electromagnetic noise interference.

The filter utilizes a ferrite core for enhanced noise suppression. Inductance tolerance supports broad application specifications. Maximum current rating of 700mA suitable for moderate power circuits. Surface mount design for automated PCB assembly.

Compliance with automotive standards ensures robustness. Compact form factor enables space-saving PCB layouts. Operational temperature range supports industrial environments. Dual inductor construction improves EMI filter performance.

Explore more high-performance Surface Mount Inductors and common mode filters within EnvMart's extensive catalog for electronics components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business
