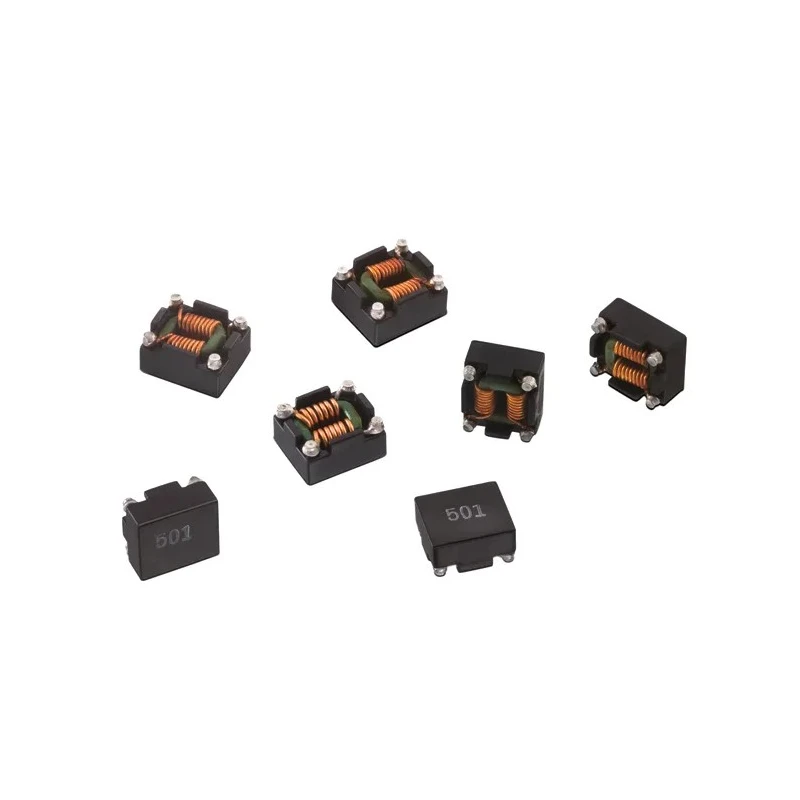

Wurth Elektronik WE-SL5 HC Surface Mount Common Mode Line Filter 5μH 5A Ferrite Core 744273501
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 5.3mm |
| Length | 9.5mm |
| Depth | 8.3mm |
| Packaging | Tape & Reel |
| Series | WE-SL5 HC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 5μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 |
| Package/Case | 744273 |
| Maximum DC Current | 5A |
| Pin Count | 4 |
| Maximum DC Resistance | 5.5mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Surface Mount |
| Inductor Construction | Sectional Winding |
Key Features
- Compact surface mount design with a sectional winding construction.
- High impedance up to 2200 Ω ensuring effective noise suppression.
- Rated for maximum operating temperatures up to 125°C.
- Low maximum DC resistance of 5.5mΩ for efficient current flow.
- Non-shielded configuration aiding in electromagnetic noise filtering.
- RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 compliant standards.
- Recommended for reflow soldering applications.
- Package supplied in tape and reel for automated assembly processes.
Product Description
Wurth Elektronik 744273501 WE-SL5 HC Surface Mount Common Mode Line Filter offers a 5μH inductance sectional winding design fabricated with a ferrite core, capable of handling up to 5A maximum DC current. This unshielded filter operates effectively at high temperatures up to 125°C, making it suitable for various industrial and electronic applications requiring noise suppression and EMI filtering.
The compact low-profile design measuring 9.5mm in length, 8.3mm in depth, and 5.3mm in height ensures minimal PCB footprint while maintaining high impedance performance up to 2200 Ω. Its low DC resistance at 5.5 milliohms minimizes energy loss, enhancing overall circuit efficiency.
Manufactured under the WE-SL5 HC series, the filter is compliant with stringent standards including RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21, ensuring environmentally safe and reliable operation. The surface mount termination style supports automated PCB assembly processes with tape and reel packaging.
This component is recommended for use in industrial electronic circuits, power conditioning, filtering noise in consumer electronics, communication equipment, and automotive-related systems that do not require automotive-specific certification.
Compact surface mount design with a sectional winding construction. High impedance up to 2200 Ω ensuring effective noise suppression. Rated for maximum operating temperatures up to 125°C. Low maximum DC resistance of 5.5mΩ for efficient current flow.
Non-shielded configuration aiding in electromagnetic noise filtering. RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 compliant standards. Recommended for reflow soldering applications. Package supplied in tape and reel for automated assembly processes.
Core made of ferrite material for reliable inductance performance. Measures 9.5mm length, 8.3mm depth, and 5.3mm height. Explore the extensive range of Surface Mount Inductors and power line filters on EnvMart for advanced electronic component solutions.
