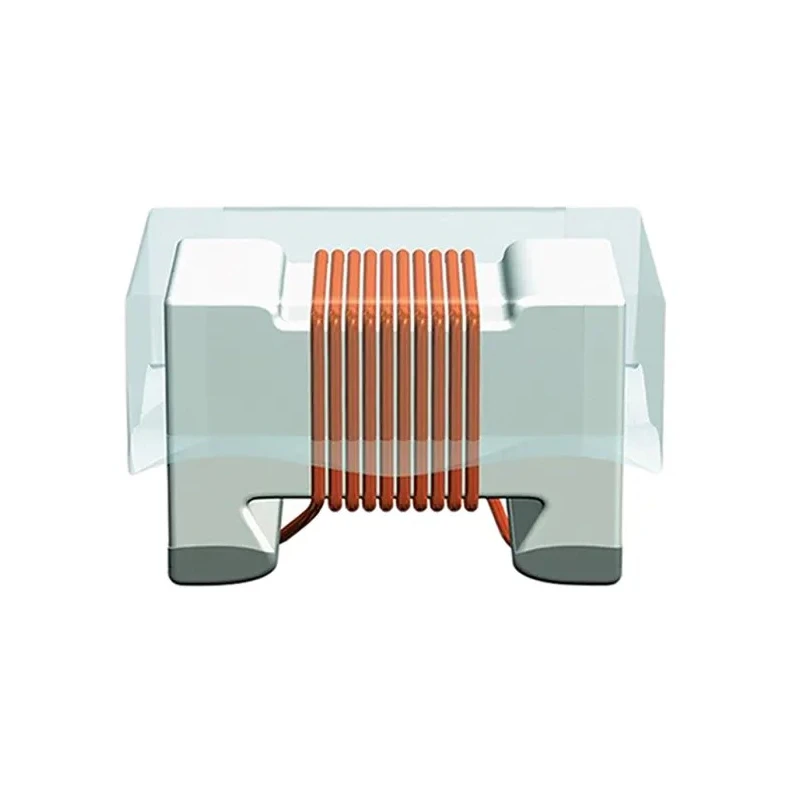

TDK SIMID 0805 Wirewound Surface Mount Inductor with Ferrite Core 2.2 μH ±5% 130 mA Idc Q:20 B82498F1222J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 2.3 x 1.7 x 1.45mm |
| Height | 1.4mm |
| Length | 2.3mm |
| Model | B82498F1222J000 |
| Depth | 1.7mm |
| Operating Temp | -55°C → +125°C |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 130mA |
| Maximum DC Resistance | 1.6Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 330MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 0805 package suitable for surface mounting applications.
- High quality factor of 20 for efficient performance.
- Ferrite core ensures stable inductance and low losses.
- Operating temperature range from -55°C to 125°C.
- Inductance tolerance of ±5% for precision in circuits.
- Maximum DC resistance of 1.6 ohms.
- Epoxy moulded design for durability and vacuum pickup compatibility.
- Compliance with automotive standard AEC-Q200 ensuring reliability.
Product Description
TDK B82498F1222J000 is a high-performance wirewound surface mount inductor designed with a ferrite core and housed in a compact 0805 package measuring 2.3 x 1.7 x 1.45 mm.
This inductor provides an inductance of 2.2 μH with a tolerance of ±5%, suitable for precision electronic circuitry. With a maximum DC current rating of 130 mA and a maximum DC resistance of 1.6 ohms, it ensures reliable current handling and minimal power loss.
The component is epoxy moulded flat on top for enhanced durability and vacuum pickup during automated PCB assembly. It offers a high quality factor (Q) of 20 and a maximum self-resonant frequency of 330 MHz, making it suitable for high-frequency applications.
Operates reliably within a wide temperature range from -55°C to 125°C and complies with the automotive standard AEC-Q200, providing confidence in demanding automotive and industrial electronic environments.
The ferrite core contributes to stable inductance characteristics and overall component efficiency. Compact 0805 package for space-saving surface mount PCB design. High quality factor of 20 enables efficient signal filtering.
Wide operating temperature range supports harsh environments. Automotive standardized for industry-grade reliability. Epoxy moulding ensures physical robustness and easy handling. Tape and reel packaging optimized for high-volume manufacturing.
Ideal for industrial, automotive, communication, and consumer electronic applications requiring precise inductance and high-frequency performance. Explore the full range of TDK Surface Mount Inductors and related electronic components at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 2.2 μH with a tolerance of ±5%.
The maximum DC current rating for this unit is 130 mA.
The dimensions of this inductor are 2.3 x 1.7 x 1.45 mm.
It operates reliably within a temperature range from -55°C to +125°C.
The maximum DC resistance is 1.6 ohms.
This unit has a minimum quality factor of 20, which supports efficient performance.
The maximum self-resonant frequency is 330 MHz.
The core material of this inductor is ferrite, which contributes to stable inductance characteristics.
It is packaged in tape and reel format, optimized for high-volume manufacturing.
Yes, it complies with the automotive standard AEC-Q200, ensuring reliability in automotive applications.
This model features a surface mount termination style, suitable for automated assembly.
It is suitable for industrial, automotive, communication, and consumer electronic applications that require precise inductance and high-frequency performance.
