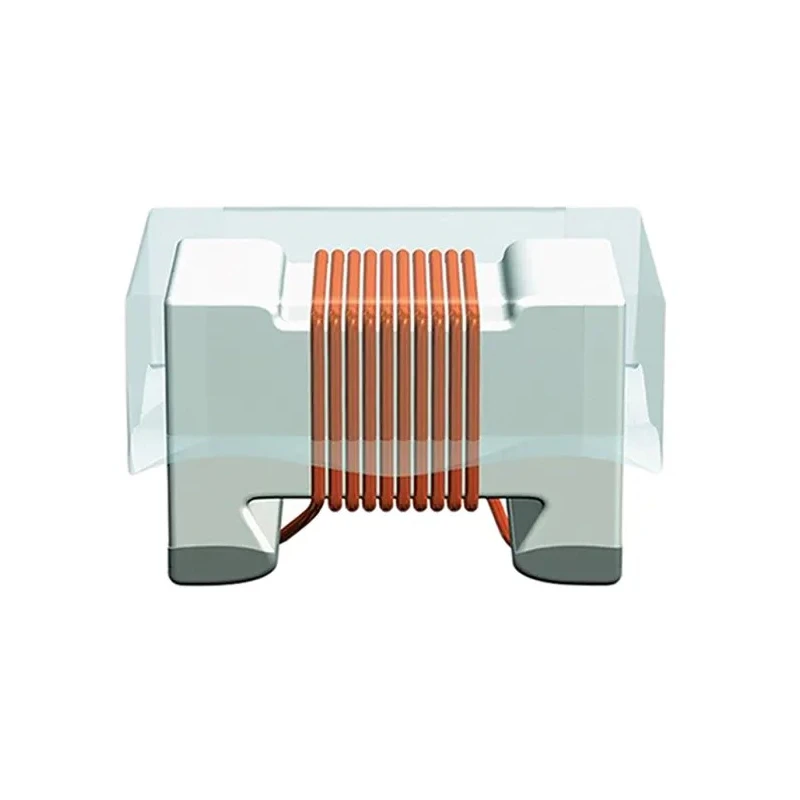

TDK SIMID 0805 Unshielded Wirewound Surface Mount Inductor 330 nH ±5 % 220 mA Idc Q:45 B82498F3331J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 2.3 x 1.7 x 1.45mm |
| Height | 1.4mm |
| Length | 2.3mm |
| Model | B82498F3331J000 |
| Depth | 1.7mm |
| Operating Temp | -55°C → +125°C |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ceramic |
| Inductance | 330nH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 220mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.5Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 800MHz |
| Minimum Quality Factor | 45 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features unshielded wirewound construction with a ceramic core.
- Compact 0805 package size with dimensions 2.3 x 1.7 x 1.45 mm.
- High quality factor minimum of 45 and maximum self-resonant frequency of 800 MHz.
- Operating temperature range from -55°C to 125°C for reliable performance.
- Complies with automotive standard AEC-Q200 ensuring durability and robustness.
- Termination style is solder suitable for standard surface mount assembly.
- RoHS compliant with epoxy moulded flat top for vacuum pickup.
- Maximum DC resistance of 1.5 Ω ensures efficiency in circuit.
Product Description
TDK B82498F3331J000 SIMID Series unshielded wirewound surface mount inductor offers inductance of 330 nH with ±5 % tolerance, designed for compact electronics applications.
The inductor features a ceramic core and is constructed with wirewound technology for high quality and stable inductance performance. Packaged in a standard 0805 size case, the component measures 2.3 mm in length, 1.7 mm in depth, and 1.45 mm in height, making it suitable for densely packed printed circuit boards.
This component supports a maximum DC current of 220 mA with a maximum DC resistance of 1.5 Ω, ensuring efficient current handling with low loss. The product offers a quality factor of at least 45 and achieves a maximum self-resonant frequency of 800 MHz, making it ideal for high-frequency circuit designs in telecommunications, automotive electronics, and industrial control systems.
The operating temperature range from -55°C to +125°C guarantees reliability under harsh environmental conditions. Its solder termination style facilitates easy surface mount assembly processes. The inductor conforms to the automotive standard AEC-Q200 and meets RoHS requirements, supporting eco-friendly electronics manufacturing.
Unshielded wirewound construction with ceramic core for high performance. Compact dimensions: 2.3 x 1.7 x 1.45 mm suitable for space-sensitive applications. Maximum DC current rating of 220 mA with 1.5 Ω resistance. High Q-factor and self-resonant frequency ideal for RF circuits.
Wide operating temperature range: -55°C to 125°C for industrial applications. AEC-Q200 automotive standard compliant for rigorous quality assurance. Solder termination compatible with PCB surface mount technology processes.
RoHS compliant epoxy moulded flat top design for vacuum pickup in manufacturing.
This TDK SIMID 0805 series inductor is widely used in industrial electronics, telecommunications, automotive electronics, and other commercial applications requiring precise inductance in a small form factor.
Explore more Surface Mount Inductors from TDK and other leading brands in the Electronics & Electricals category at EnvMart for your next project or production requirement.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 330 nH with a tolerance of ±5%.
It supports a maximum DC current of 220 mA.
The dimensions of this inductor are 2.3 mm in length, 1.7 mm in depth, and 1.45 mm in height.
The maximum self-resonant frequency is 800 MHz.
The operating temperature range is from -55°C to +125°C.
It features a ceramic core, which is part of its wirewound construction.
The termination style is solder, which is suitable for standard surface mount assembly processes.
It complies with the automotive standard AEC-Q200 and is RoHS compliant.
The maximum DC resistance is 1.5 Ω, ensuring efficient current handling.
The minimum quality factor is 45, indicating its performance in high-frequency applications.
It is packaged in tape and reel format, suitable for automated assembly processes.
This inductor is widely used in industrial electronics, telecommunications, and automotive electronics requiring precise inductance in compact designs.
