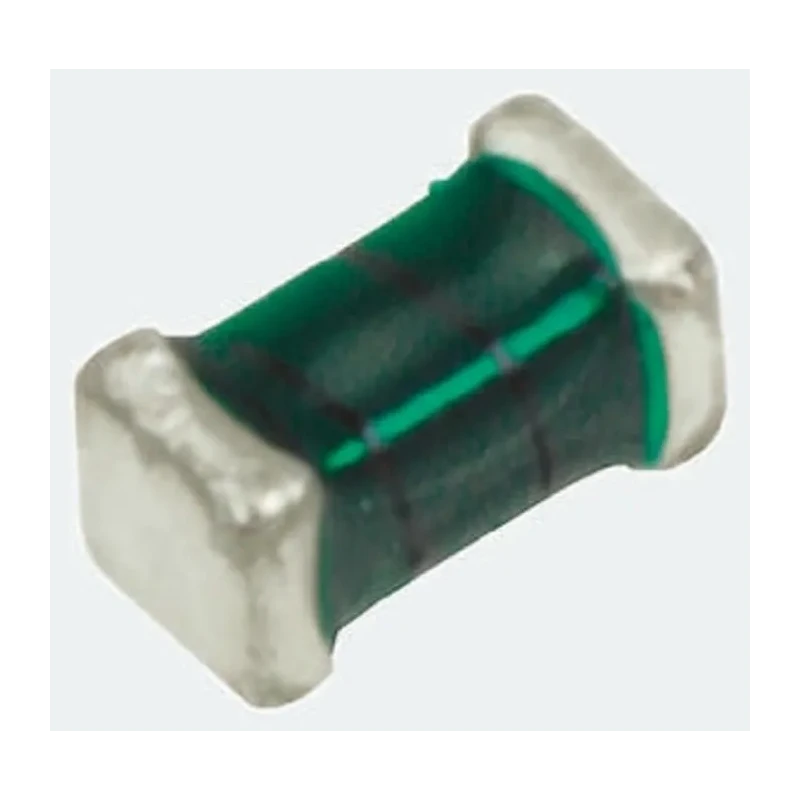

TDK SIMID 0603 Unshielded Wirewound Surface Mount Inductor 100 nH ±5% 200 mA Idc B82496C3101J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 1.6 x 0.8 x 0.8mm |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | B82496C3101J000 |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Copper Plated Ceramic |
| Inductance | 100nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 200mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.8Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1.8GHz |
| Minimum Quality Factor | 14 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features copper plated ceramic core for high stability and mechanical strength.
- Constructed with wirewound technology enabling high resonance frequency and quality factor.
- Supports maximum DC current of 200 mA ensuring reliable performance.
- Package size is 0603 with compact dimensions 1.6 x 0.8 x 0.8 mm.
- Operates reliably between -55°C and 150°C operating temperatures.
- Has a maximum DC resistance of 1.8 Ω and minimum quality factor of 14.
- Complies with RoHS standards and automotive standard AEC-Q200.
- Termination style is solder type for surface mount assembly.
Product Description
TDK B82496C3101J000 wirewound surface mount inductor features a 0603 package size with a compact footprint measuring 1.6 mm length, 0.8 mm height, and 0.8 mm depth. Utilizing a copper plated ceramic core, this inductor offers high mechanical stability and excellent resonance frequency up to 1.8 GHz. It suits high-frequency electronic applications requiring stable inductance of 100 nH with a tolerance of ±5% and a minimum quality factor of 14.
This component supports a maximum DC current of 200 mA and withstands a maximum operating temperature of 150°C, making it suitable for demanding industrial and automotive environments compliant with the rigorous AEC-Q200 automotive standard. With a maximum DC resistance of 1.8 Ω, it ensures efficient current flow with minimal losses.
The unshielded wirewound construction combined with solder termination style makes this inductor ideal for surface mount PCB installation in communication devices, power supplies, and electronic instrumentation. RoHS compliance guarantees environmentally safe manufacturing and usage.
Features copper plated ceramic core for high mechanical stability. Wirewound construction for enhanced resonance frequency and quality. Compact 0603 package dimensions support space-saving PCB designs. Wide operating temperature range from -55°C to 150°C.
Meets automotive standard AEC-Q200 ensuring reliability in vehicle electronics. RoHS compliant for environmentally safe applications. Maximum DC current rating of 200 mA for stable electrical performance. Solder type termination suitable for surface mount assembly.
Dimensions: 1.6 x 0.8 x 0.8 mm (L x H x D).
This TDK SIMID series surface mount inductor is widely used in industrial electronics, automotive control systems, electronic communication equipment, power management circuits, and advanced consumer electronics. Its small size and high performance make it an essential passive component for designers requiring reliable inductors with favorable electrical and thermal characteristics.
Explore a broad range of Surface Mount Inductors and related components in the Electronics & Electricals category at EnvMart for your industrial and commercial electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 100 nH with a tolerance of ±5%.
It supports a maximum DC current of 200 mA, ensuring reliable performance in various applications.
The inductor has compact dimensions of 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth.
The maximum operating temperature is 150°C, making it suitable for demanding environments.
It features a solder type termination style, designed for surface mount assembly.
The minimum quality factor is 14, indicating its efficiency in high-frequency applications.
This unit is constructed using wirewound technology, which enhances its resonance frequency.
It has a maximum self-resonant frequency of 1.8 GHz, suitable for high-frequency applications.
Yes, it complies with RoHS standards and the automotive standard AEC-Q200, ensuring it meets industry requirements.
The core material is copper plated ceramic, providing high stability and mechanical strength.
It is packaged in tape and reel format, facilitating easy handling and assembly.
It operates reliably between -55°C and 150°C, accommodating a wide range of environmental conditions.
