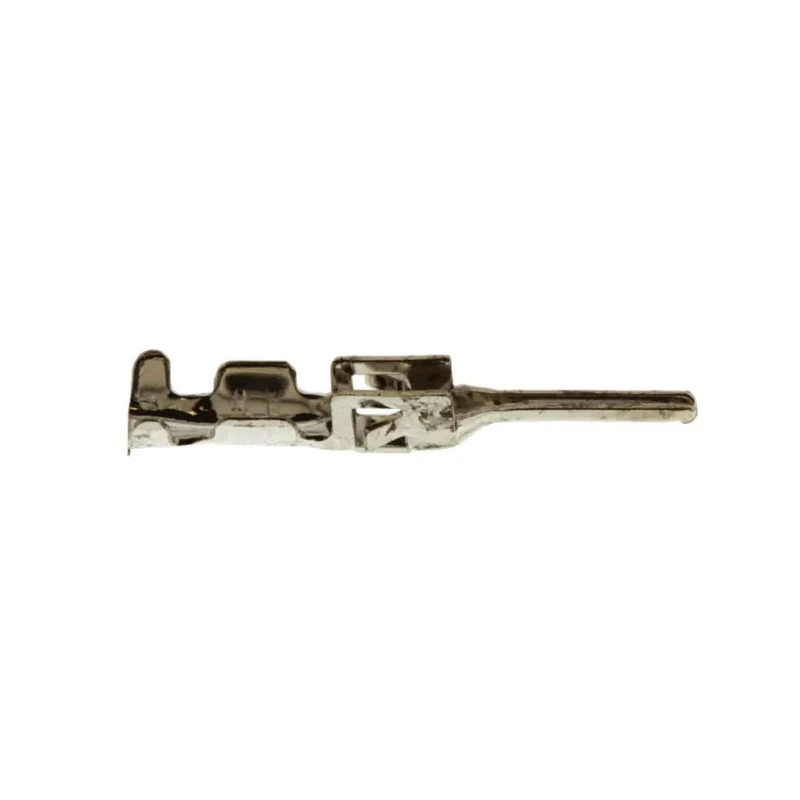

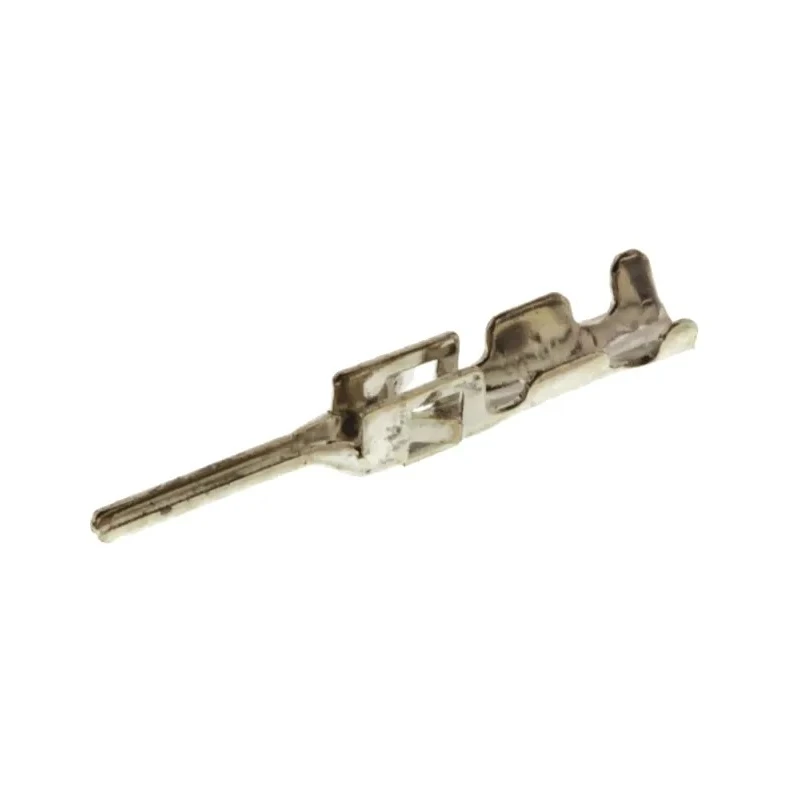

Molex TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal 5A Current 24-20 AWG 1-794612-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 5A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | Micro MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance mechanism for secure retention in housing |
| For Use With | Micro MATE-N-LOK Connector Housing |
| Contact Plating | Bright Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
| Molex 43031 Series Male Crimp Terminal, 24 AWG Min Crimp, 20 AWG MaxBrand | Molex |
Key Features
- Supports wire sizes from 24 AWG minimum to 20 AWG maximum ensuring versatile usability.
- Rated for a maximum current of 5 amperes suitable for medium-power circuits.
- Constructed of phosphor bronze with bright tin plating for excellent conductivity and corrosion resistance.
- Features a dual beam contact design for strong and consistent electrical connections.
- Includes a locking lance mechanism to securely retain contacts in connector housings.
- Operates reliably between -40°C and 105°C for wide-temperature applications.
- Crimp termination type enables efficient field assembly and maintenance.
- Compatible with Micro MATE-N-LOK connector housings featuring a 3 mm pitch.
Product Description
Molex 1-794612-0 Micro MATE-N-LOK series male crimp terminal offers a robust solution for wire-to-wire and wire-to-board electrical connections with current ratings up to 5 amperes. Featuring a dual beam contact design and a locking lance mechanism, this crimp contact ensures secure electrical connectivity within its Micro MATE-N-LOK connector system.
Manufactured from phosphor bronze and finished with bright tin plating, this terminal provides excellent conductivity and resists corrosion, suitable for demanding industrial and commercial uses. The crimp style termination supports wire gauges from 24 to 20 AWG, offering flexibility across a range of wiring applications.
Operating temperature ranges from -40° to 105°C, the terminal is dependable in harsh environments. These connectors have a compact 3 mm centerline suitable for space-constrained circuits, making them well-suited for LED lighting and other compact electronic devices.
The Micro MATE-N-LOK 3 mm connector system provides a versatile, reliable wire harnessing solution for industrial automation, manufacturing equipment, and consumer electronics. This product is compatible with a variety of Micro MATE-N-LOK connector housings and offers ease of assembly with secure retention enabled by the lance contact design.
Supports 5A current for medium-power electrical circuits. Dual beam contact enhances electrical reliability. Phosphor bronze material with bright tin plating. Locking lance mechanism secures contact firmly. Wide wire size range from 24 AWG to 20 AWG.
Temperature range from -40°C to 105°C. Crimp type termination for fast wire attachment. Ideal in industrial, LED lighting, and consumer electronics.
Choose this high-quality crimp terminal for ensuring dependable connections in demanding wire harness assemblies. Browse the Crimp Terminal category at EnvMart for related solutions and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 5 amperes, making it suitable for medium-power circuits.
It supports wire sizes from 24 AWG minimum to 20 AWG maximum, providing versatility for various applications.
The terminal operates reliably between -40°C and 105°C, making it suitable for use in a wide range of environments.
It is constructed from phosphor bronze and features bright tin plating, which enhances conductivity and corrosion resistance.
This model includes a locking lance mechanism that securely retains contacts in the connector housings, ensuring reliable connections.
It utilizes a crimp termination type, allowing for efficient field assembly and maintenance of wire connections.
It is compatible with Micro MATE-N-LOK connector housings that feature a 3 mm pitch.
The maximum contact resistance is rated at 20 mΩ, ensuring strong electrical connectivity.
This terminal is suitable for applications in industrial automation, manufacturing equipment, and consumer electronics, as well as LED lighting.
This crimp terminal is male, designed for use in various electrical connections.
The dual beam contact design enhances electrical reliability by providing strong and consistent connections within the Micro MATE-N-LOK system.
The country of origin for this crimp terminal is India.
