| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | AIML-0603-R68K-T |
| Depth | 0.8mm |
| Packaging | Tape and Reel |
| Series | AIML-0603 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| ISO 9001 | 2008, ISO 9001 / QS 9000, RoHS |
| Core Material | Ferrite (Ni-Cu-Zn series) |
| Inductance | 680pH |
| Standards/Approvals | ISO 9001:2008, ISO 9001 / QS 9000, RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 35mA |
| Maximum DC Resistance | 2.75Ω |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 33MHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Multilayer |
| Standards/ApprovalsISO 9001 | 2008, ISO 9001 / QS 9000, RoHS |

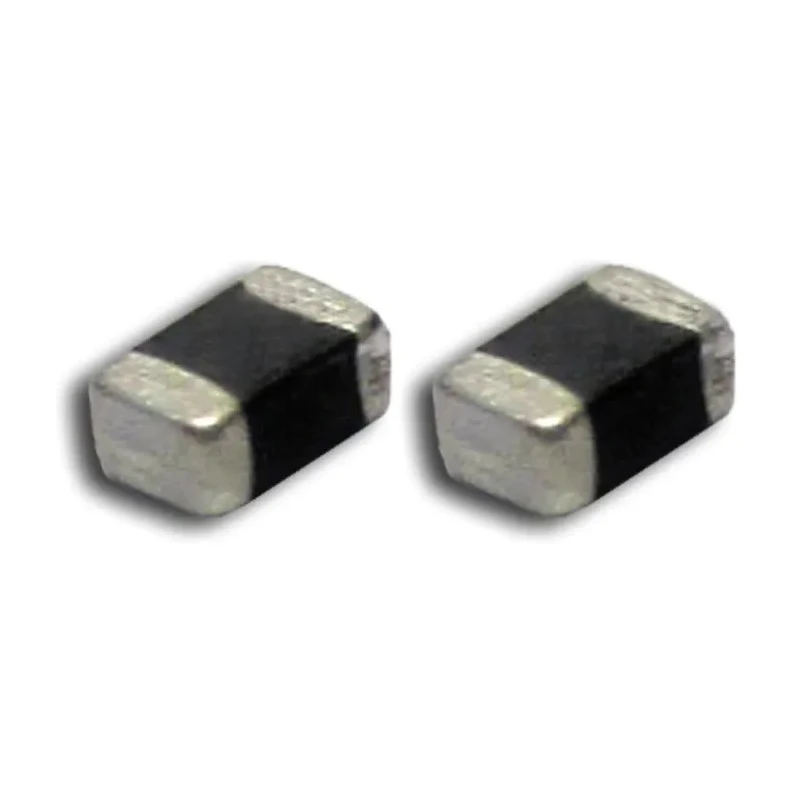

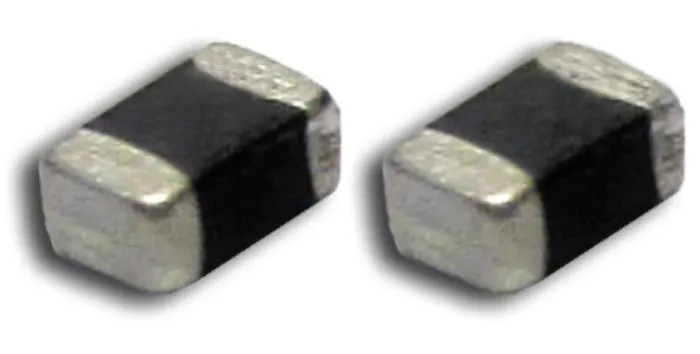

Abracon AIML-0603-R68K-T is a shielded Surface Mount Inductor featuring a ferrite (Ni-Cu-Zn series) core and multilayer construction, providing 680 pH inductance and a maximum DC current rating of 35 mA. Its compact package dimensions of 1.6 mm length, 0.8 mm height, and 0.8 mm depth make it suitable for dense PCB layouts, particularly in RF and high-frequency circuits.
The magnetically shielded design minimizes electromagnetic interference and cross coupling, enhancing circuit stability. With a maximum DC resistance of 2.75 ohms and a maximum self-resonant frequency of 33 MHz, this inductor performs reliably in resonance circuits, traps, filter circuits, and as an RF choke in cordless phones and other radio equipment.
Rated to operate within a broad temperature range from -55°C to 125°C, the component offers durability under varying environmental conditions. The minimum quality factor of 35 supports effective energy storage and low loss performance. It meets industry approvals including ISO 9001:2008, QS 9000, and RoHS compliance, ensuring high-quality manufacturing and environmental standards adherence.
This tape and reel packaged inductor is ideal for automated assembly in communications, video and audio equipment, computer peripherals, and remote control devices. This multilayer inductor features a compact 1.6mm x 0.8mm x 0.8mm package size suitable for PCB mounting.
Magnetically shielded design reduces cross-coupling and electromagnetic interference. Constructed with ferrite (Ni-Cu-Zn series) core for excellent performance in RF and filter circuits. Rated maximum DC resistance of 2.75 ohms and self-resonant frequency up to 33 MHz.
Operates reliably from -55°C to 125°C with a minimum quality factor of 35. Complies with ISO 9001:2008, QS 9000, and RoHS standards. Ideal for applications including resonance circuits, RF choke for communication devices, video, audio equipment, and computer peripherals.
Packaged in tape and reel for automated assembly efficiency. Explore the comprehensive range of electronic components at EnvMart for reliable, high-performance industrial applications.
