TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 220 μH ±20% 350 mA Idc B82462G4224M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3mm |
| Length | 6.3mm |
| Model | B82462G4224M000 |
| Depth | 6.3mm |
| Packaging | Tape & Reel |
| Series | B82462-G4 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 220μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 350mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.35Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 5.5MHz |
| Inductor Construction | Wirewound |
Key Features
- This wirewound SMT inductor features a magnetically shielded ferrite core for noise reduction and efficiency.

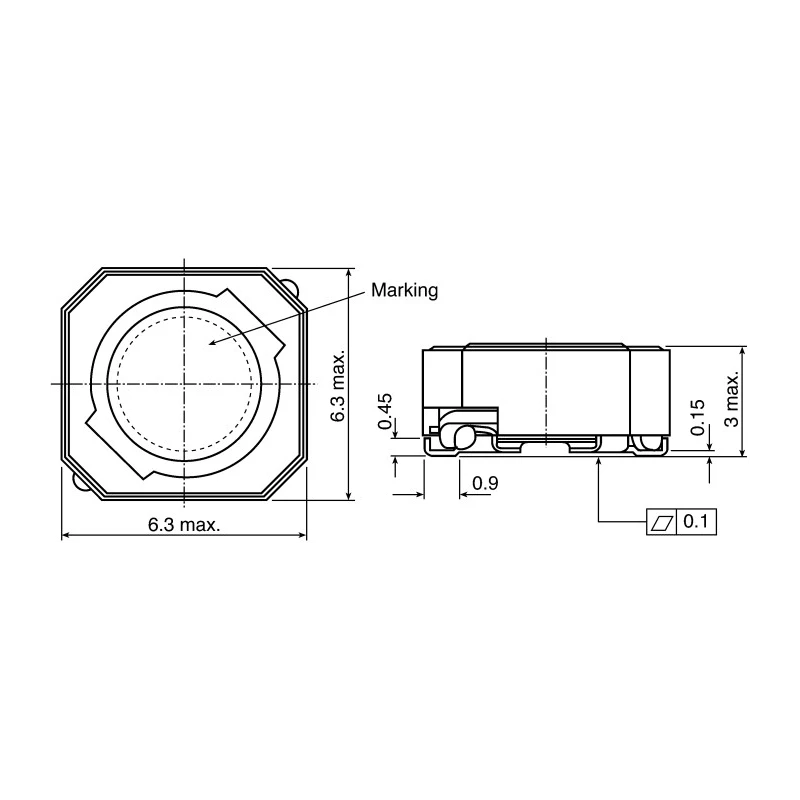

- The 6.3 mm by 6.3 mm compact package is suitable for surface mount applications.
- The device operates reliably between -55°C and 150°C, supporting wide temperature ranges.
- It has an inductance tolerance of ±20% and a maximum DC resistance of 1.35 Ω.
- Designed for solder termination, it ensures easy assembly in automated manufacturing.
- The inductor supports a maximum self-resonant frequency of 5.5 MHz for stable performance.
- Compliant with RoHS standards, it is environmentally friendly and suitable for green designs.
- This inductor is ideal for filtering power supplies and other industrial electronics applications.
Product Description
TDK B82462G4224M000 is a shielded wirewound surface mount inductor featuring a ferrite core with 220 μH inductance and ±20% tolerance. It supports a maximum DC current of 350 mA and has a maximum DC resistance of 1.35 Ω. The compact 6.3 mm x 6.3 mm size and the use of solder termination style make it suitable for automated SMT assembly processes.
The inductor operates over a wide temperature range from -55°C to 150°C, ensuring reliability in harsh industrial and electronic environments. Its magnetically shielded ferrite core construction minimizes electromagnetic interference, making it ideal for use in power supply filtering and other sensitive applications.
This B82462-G4 series component complies with RoHS environmental standards and features a maximum self-resonant frequency of 5.5 MHz, ensuring stable performance in high-frequency circuits. The component is moulded and designed to withstand industrial operating conditions, including automotive temperatures.
Packaged in tape and reel format, this inductor supports efficient production line insertion, enhancing manufacturing productivity. Its two-pin configuration and wirewound construction ensure precise inductance and power handling.
This wirewound SMT inductor features a magnetically shielded ferrite core for noise reduction and efficiency. The 6.3 mm by 6.3 mm compact package is suitable for surface mount applications. The device operates reliably between -55°C and 150°C, supporting wide temperature ranges.
It has an inductance tolerance of ±20% and a maximum DC resistance of 1.35 Ω. Designed for solder termination, it ensures easy assembly in automated manufacturing. The inductor supports a maximum self-resonant frequency of 5.5 MHz for stable performance.
Compliant with RoHS standards, it is environmentally friendly and suitable for green designs. This inductor is ideal for filtering power supplies and other industrial electronics applications. Packaged in tape and reel format for efficient high-volume SMT production.
The TDK B82462G4224M000 inductor is an excellent choice for applications in industrial electronics, telecommunications, automotive electronics, and power supply filtering where performance, stability, and compact size are critical.
Explore more Surface Mount Inductors from leading brands to find components suited to your specific requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 220 μH with a tolerance of ±20%.
It supports a maximum DC current of 350 mA.
The dimensions are 6.3 mm in length, 6.3 mm in depth, and 3 mm in height.
The maximum operating temperature is 150°C.
The minimum operating temperature is -55°C.
The maximum DC resistance is 1.35 Ω.
It features a solder termination style, making it suitable for automated assembly.
The maximum self-resonant frequency is 5.5 MHz.
The core material is ferrite, which helps in reducing electromagnetic interference.
Yes, it complies with RoHS standards, making it suitable for environmentally friendly designs.
It is packaged in tape and reel format for efficient production line insertion.
This model is ideal for filtering power supplies and other industrial electronics applications.
