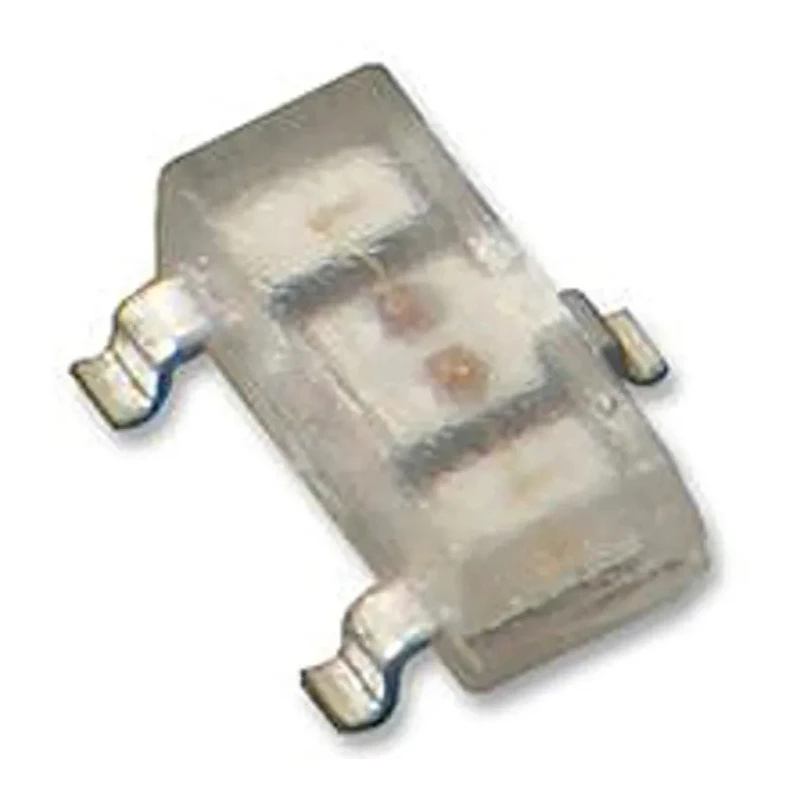

Kingbright 2.5 V Red LED SOT-23 Surface Mount KA-23 Series KM-23SRD-F

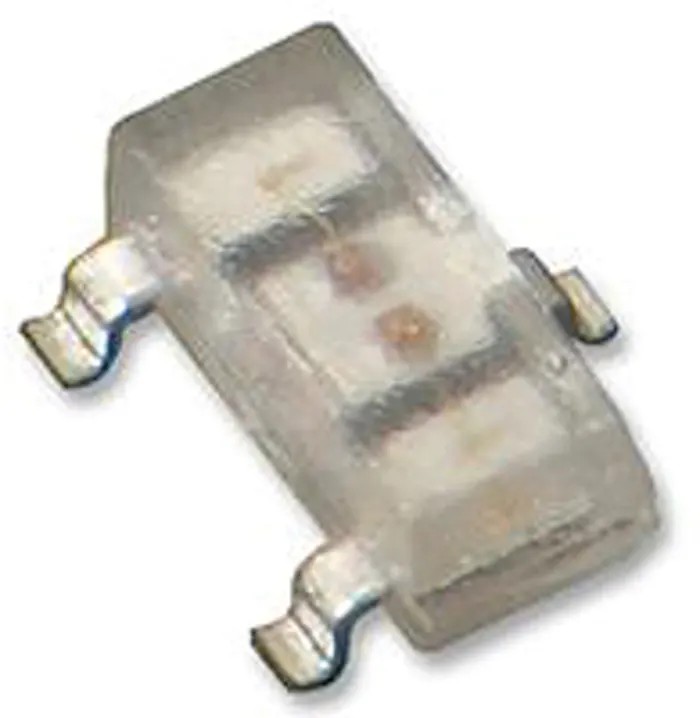

Kingbright KM-23SRD-F is a high-quality red LED featuring a compact SOT-23 surface mount package measuring 3.0 x 1.3 mm. It operates at a forward voltage of 2.5 V and withstands a maximum forward current of 155 mA, providing reliable and energy-efficient lighting performance for electronics and optoelectronics applications.

This LED offers a dominant wavelength of 640 nm with clear lens finish and a wide viewing angle of 140°, delivering bright red illumination with LED luminosity of 90 mcd. Its rectangular lens shape enhances focused light output suitable for displays, indicators, and signaling equipment.

The surface mount package is designed to support modern automated manufacturing assembly lines with tape and reel packaging, enhancing production efficiency. Its low maximum power dissipation of 75 mW allows safe integration into low-power electronic circuits while ensuring long life and operational stability.

The device has three pins providing stable electrical connections and meets RoHS compliance standards for environmental safety and reliability. Originating from China, the LED is part of Kingbright's KA-23 series of visible light LEDs and is ideal for industrial, laboratory, HVAC, manufacturing, and commercial electronics applications where compact and efficient red LED indicators are required.

Compact SOT-23 package measuring 3.0 x 1.3 mm for space-efficient mounting. Red LED color with a dominant wavelength of 640 nm providing clear visible light. High viewing angle of 140° for wide light dispersion. LED luminosity of 90 millicandela ensuring good brightness.

Rectangular clear lens with dimensions 3 x 1.3 mm for focused light output. Surface mount type designed for automated assembly on PCBs. Maximum power dissipation of 75 mW suitable for low power circuits. Complies with RoHS standards ensuring environmental safety.

Tape and reel packaging format for manufacturing efficiency. Has 3 pins for electrical connection stability. Explore the full range of Kingbright LEDs and surface mount optoelectronic components at EnvMart for your industrial and commercial requirements.
