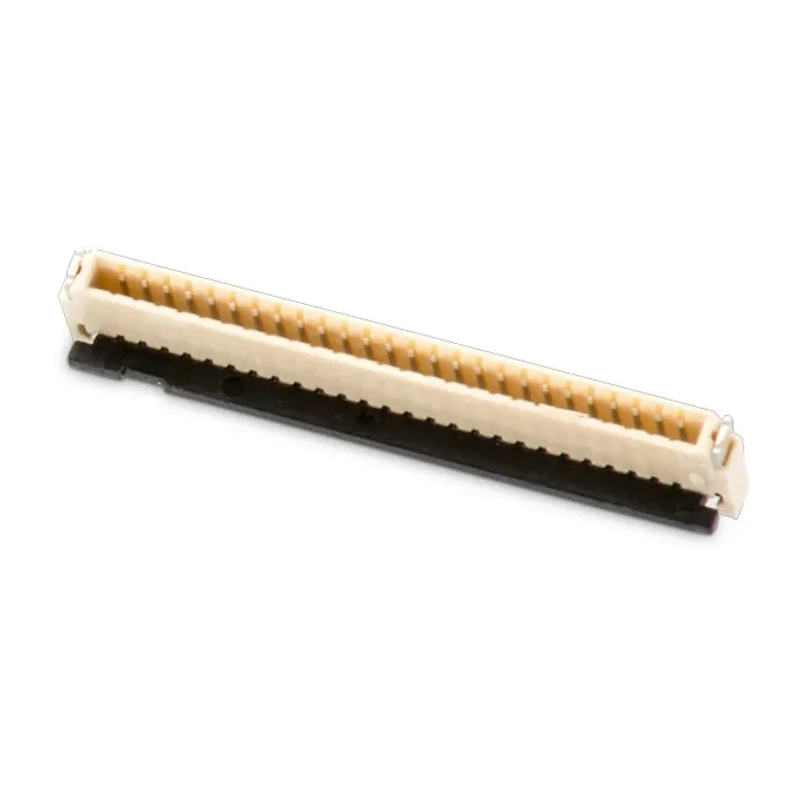

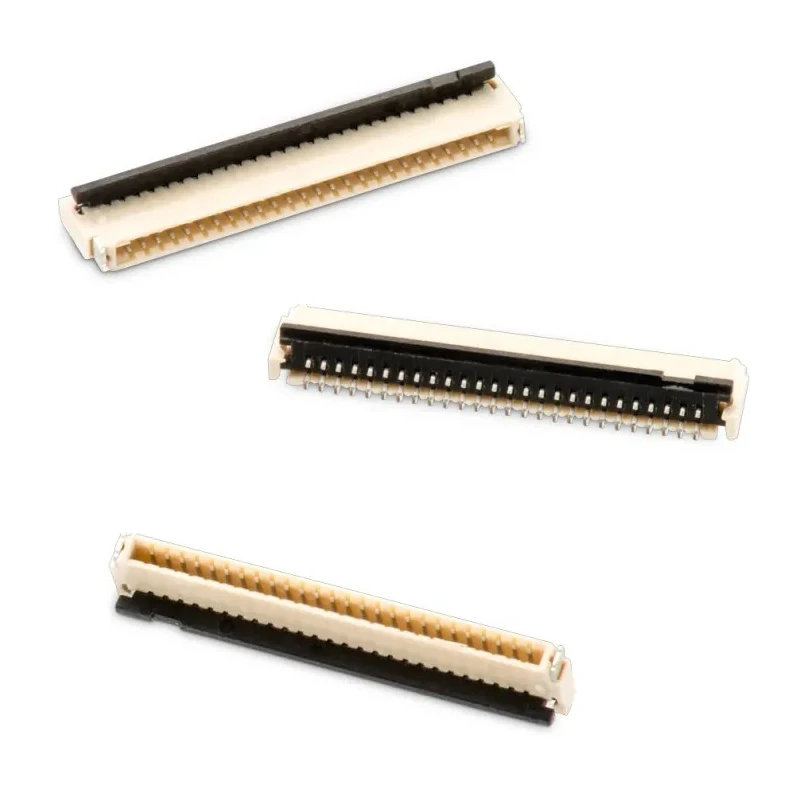

Wurth Elektronik WR-FPC 0.5 mm Pitch 50 Way Horizontal Female FPC Connector ZIF 687150182122
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Dual |
| Solder Tabs | Brass |
| Insulator Material | LCP |
Key Features
- Features dual contact positions ensuring reliable connections.
- Contact material made of phosphor bronze with tin over nickel plating.
- Operates safely up to 50V and 500mA current rating.
- Constructed with a liquid crystal polymer housing for durability.
- Includes locking mechanism and insertion force classification as ZIF for ease of use.
- Designed to operate between -55°C to 85°C temperature range.
- Surface mount technology enables compact and secure PCB integration.
- Suitable for various electronics and power connector applications requiring female FPC connectors.
Product Description
Wurth Elektronik model 687150182122 is a high-quality FPC connector designed for precision electronic assembly. This 50 way horizontal female connector features a fine 0.5 mm pitch with Zero Insertion Force (ZIF) termination, facilitating easy and secure connections on printed circuit boards while mitigating contact damage.
The dual contact position ensures optimal connectivity reliability. The contacts are made from phosphor bronze providing excellent electrical performance and durability, plated with tin over nickel to resist corrosion. The housing is constructed from liquid crystal polymer material, known for its high strength and thermal stability, making it suitable for industrial and demanding applications.
This connector supports up to 50 volts and 500 milliamps current, making it ideal for low power electronic devices. Its surface mount technology mount type allows for compact PCB layouts and reliable mechanical fixing. A locking mechanism is integrated with ZIF insertion force to ensure the connector remains securely engaged during operation.
Operating temperature ranges from -55°C to 85°C, supporting applications in harsh environments. The solder tabs are made of brass providing robust mechanical and electrical connection to the circuit board. This product is widely used in electronic components, power and signal connectors, and is suitable for industrial, laboratory, and manufacturing environments where reliable PCB interconnections are essential.
Features dual contact positions ensuring reliable connections. Contact material made of phosphor bronze with tin over nickel plating. Operates safely up to 50V and 500mA current rating. Constructed with a liquid crystal polymer housing for durability.
Includes locking mechanism and insertion force classification as ZIF for ease of use. Designed to operate between -55°C to 85°C temperature range. Surface mount technology enables compact and secure PCB integration. Manufactured in China with an insulator material of liquid crystal polymer and brass solder tabs.
Explore more in the Wurth Elektronik FPC Connector series and related electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates safely at up to 50 volts and has a current rating of 500 milliamps.
The connector features a housing made of liquid crystal polymer, with contacts made from phosphor bronze and plated with tin over nickel.
It has a pitch of 0.5 mm and includes 50 contacts.
This connector is designed to operate within a temperature range of -55°C to 85°C.
It utilizes Zero Insertion Force (ZIF) termination, which facilitates easy and secure connections.
This model employs surface mount technology for compact and secure integration onto printed circuit boards.
Yes, it includes a locking mechanism to ensure the connector remains securely engaged during operation.
The connector is designed in a horizontal orientation.
It is suitable for various electronics and power connector applications requiring female FPC connectors.
It features dual contact positions, which enhance connectivity reliability.
The solder tabs are made of brass, providing a robust connection to the circuit board.
This model is manufactured in China.
