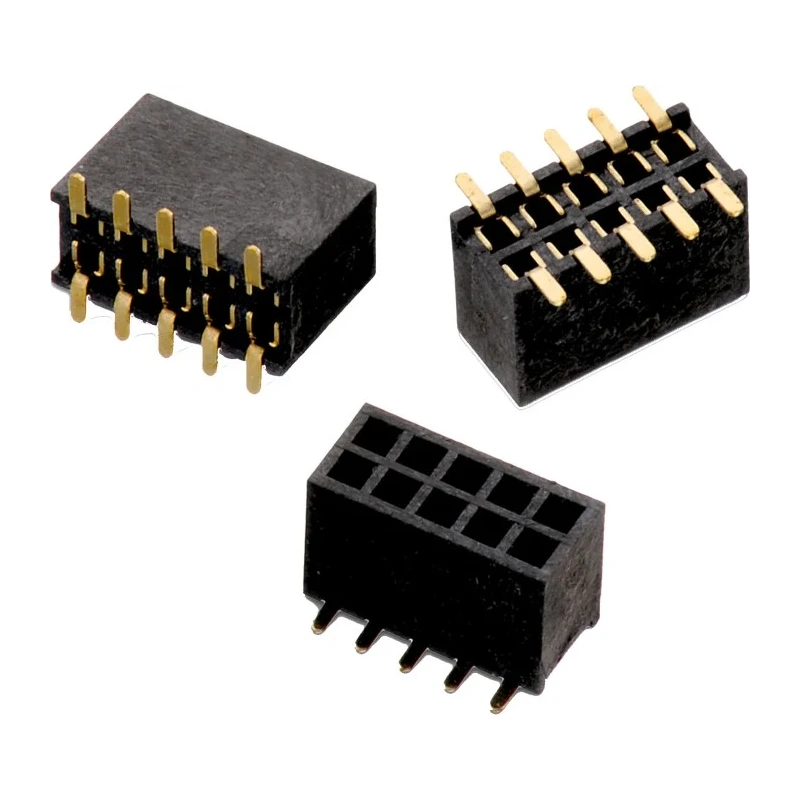

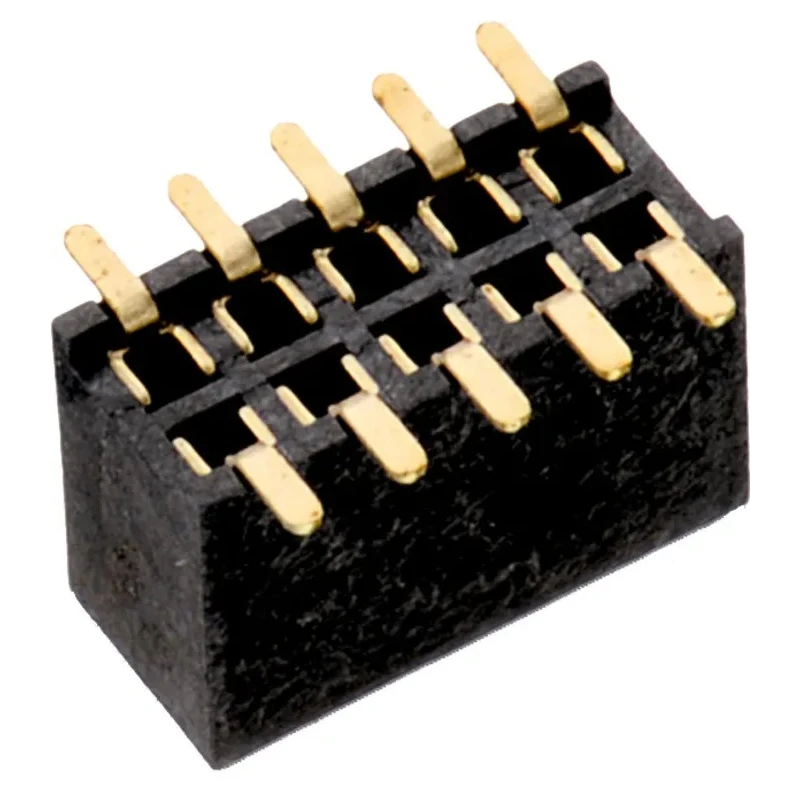

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket, 28-Contact, 2 Row, 1.27 mm Pitch, 1A Current 62302821021
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 28 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Withstanding Voltage | 500 V (AC) |
| Insulator Material | PA9T |
Key Features
- The socket supports a current rating of 1 ampere for reliable electrical performance.
- Constructed from durable polyamide housing material ensuring high mechanical strength.
- Contact material consists of copper alloy with gold plating for excellent conductivity and corrosion resistance.
- Rated for operating voltages up to 100 volts withstanding voltage of 500 V AC.
- Designed for straight orientation with board-to-board connector system compatibility.
- Rated operating temperature ranges from -40°C to 105°C suitable for various industrial environments.
- The insulator is made of PA9T material providing high temperature resilience.
- Contact gender is female ensuring compatibility with corresponding male pins.
Product Description
The Wurth Elektronik 62302821021 WR-PHD Series Straight Surface PCB Socket is engineered for reliable board-to-board connections in demanding electronic environments. Featuring 28 contacts arranged in two rows at a 1.27 mm pitch, this surface mount socket is designed with polyamide housing for robust mechanical and thermal stability.
Its copper alloy contacts are gold plated for superior conductivity and resistance to oxidation, supporting continuous current up to 1A and operating voltage up to 100V, withstanding transient voltages up to 500 V AC.
The socket operates effectively within a wide temperature range from -40°C to 105°C, with the insulator made from high-performance PA9T material ensuring thermal endurance.
This socket includes a female contact gender and a straight orientation, compatible with a board-to-board connector system, making it suitable for diverse industrial, manufacturing, and electronic laboratory applications.
The socket supports a current rating of 1 ampere for reliable electrical performance. Constructed from durable polyamide housing material ensuring high mechanical strength. Contact material consists of copper alloy with gold plating for excellent conductivity and corrosion resistance.
Rated for operating voltages up to 100 volts withstanding voltage of 500 V AC. Designed for straight orientation with board-to-board connector system compatibility. Rated operating temperature ranges from -40°C to 105°C suitable for various industrial environments.
The insulator is made of PA9T material providing high temperature resilience. Contact gender is female ensuring compatibility with corresponding male pins. Ideal for industrial electronics, manufacturing, and laboratory equipment requiring robust PCB connections.
Manufactured in China under Wurth Elektronik's WR-PHD series standards. Discover a comprehensive selection of PCB Sockets and related electronic components at EnvMart, ideal for professional electronics assembly and repair tasks.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The socket supports a current rating of 1 ampere, ensuring reliable electrical performance.
It is rated for operating voltages up to 100 volts and can withstand transient voltages up to 500 V AC.
The housing is made from polyamide, while the contact material consists of copper alloy with gold plating for excellent conductivity and corrosion resistance.
The rated operating temperature ranges from -40°C to 105°C, suitable for various industrial environments.
This model features 28 contacts arranged in two rows at a 1.27 mm pitch.
It is designed for a board-to-board connector system, ensuring compatibility with corresponding male pins.
The termination type for this model is solder, suitable for surface mounting.
The insulator is made from high-performance PA9T material, providing high temperature resilience.
This socket is designed with a straight orientation, facilitating easy integration into PCB layouts.
This PCB socket is manufactured in China under Wurth Elektronik's WR-PHD series standards.
It utilizes a surface mount type, allowing for efficient space usage on printed circuit boards.
The contacts are gold plated, which enhances conductivity and resistance to oxidation.
