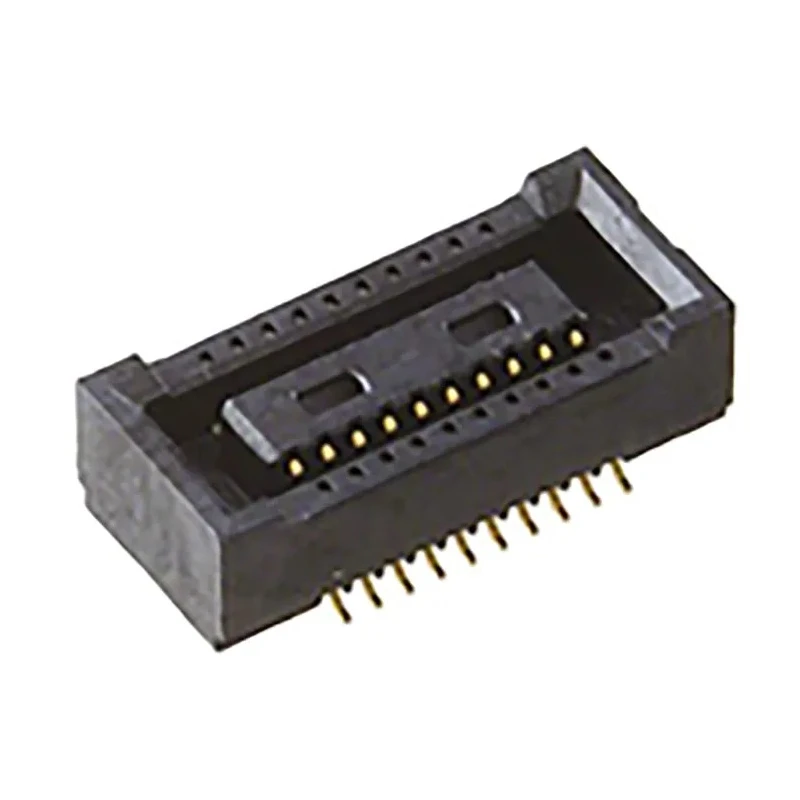

Hirose DF40 Series Straight Surface PCB Socket, 20-Contact, 2 Row, 0.4 mm Pitch, 4 mm Stacking Height
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | DF40 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | DF40 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 2 |
| Pitch | 0.4mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-FPC, Board-to-Board |
| Stacking Height | 4mm |
| Row Pitch | 2.38mm |
Key Features
- This socket supports a current rating of 300 mA and voltage of 30 V.
- Constructed with a liquid crystal polymer housing for stability and durability.
- Features gold-plated copper female contacts ensuring high contact reliability.
- Equipped with a locking mechanism that produces an audible click upon mating confirmation.
- Designed with reinforced structure and shock absorbing ribs for protection against impact and vibration.
- Guide ribs enable self-alignment by 0.33 mm during mating for precision connection.
- Nickel plated barriers prevent solder wicking during assembly.
- Suitable for miniature devices including mobile phones, LCD displays, notebook PCs, and keyboards.
Product Description
Hirose DF40C-20DS-0.4V(58) Straight Surface PCB Socket belongs to the DF40 Series, offering a high-density and low-profile design with 20 contacts arranged in 2 rows and a fine 0.4 mm pitch. This socket is designed for surface mounting on PCBs, providing reliable mating assurance with a tactile click locking mechanism.
The socket housing is made from liquid crystal polymer, which ensures stability and durability in demanding environments. Copper contacts plated with gold provide excellent conductivity and resistance to corrosion while nickel plated barriers prevent solder wicking during the soldering process.
With a maximum operating voltage of 30 V and a current rating of 300 mA, this connector supports board-to-board and board-to-FPC connections. The 4 mm stacking height and reinforced construction, including shock absorbing ribs, protect the connector against physical shocks and vibrations, making it suitable for industrial and commercial electronic applications.
Additional features such as guide ribs help align the connector during mating with an accuracy of 0.33 mm, enhancing connection reliability. This product operates over a wide temperature range (-35°C to 85°C), making it ideal for use in miniature devices like mobile phones, developer chip sets, LCD displays, notebook PCs, and keyboards.
High density and low profile design suitable for miniature electronic devices. Wide temperature operating range from -35°C to 85°C. Locking mechanism with audible click for mating assurance. Gold-plated copper contacts for reliable electrical performance.
Nickel plated solder barriers to prevent solder wicking. Reinforced structure with shock absorbing ribs for durability. Guide ribs for self-alignment during mating. Surface mount type with 4 mm stacking height.
This PCB socket is an ideal choice for industrial, commercial, and consumer electronics requiring robust and compact board-to-board or board-to-FPC connections. Explore more high-quality connector products within the EnvMart Electronics Components category for comprehensive solutions.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 300 mA and a maximum operating voltage of 30 V.
The housing is made from liquid crystal polymer, while the contacts are copper plated with gold for enhanced conductivity.
The stacking height of this socket is 4 mm.
This socket features 20 contacts arranged in 2 rows.
It uses a solder termination type for mounting on PCBs.
The operating temperature range is from -35°C to 85°C.
Yes, it is equipped with a locking mechanism that produces an audible click upon mating confirmation.
This connector system supports board-to-board and board-to-FPC connections.
Guide ribs enable self-alignment by 0.33 mm during mating, enhancing connection reliability.
Nickel plated barriers are incorporated to prevent solder wicking during the soldering process.
It is suitable for miniature devices including mobile phones, LCD displays, notebook PCs, and keyboards.
The country of origin for this PCB socket is India.
