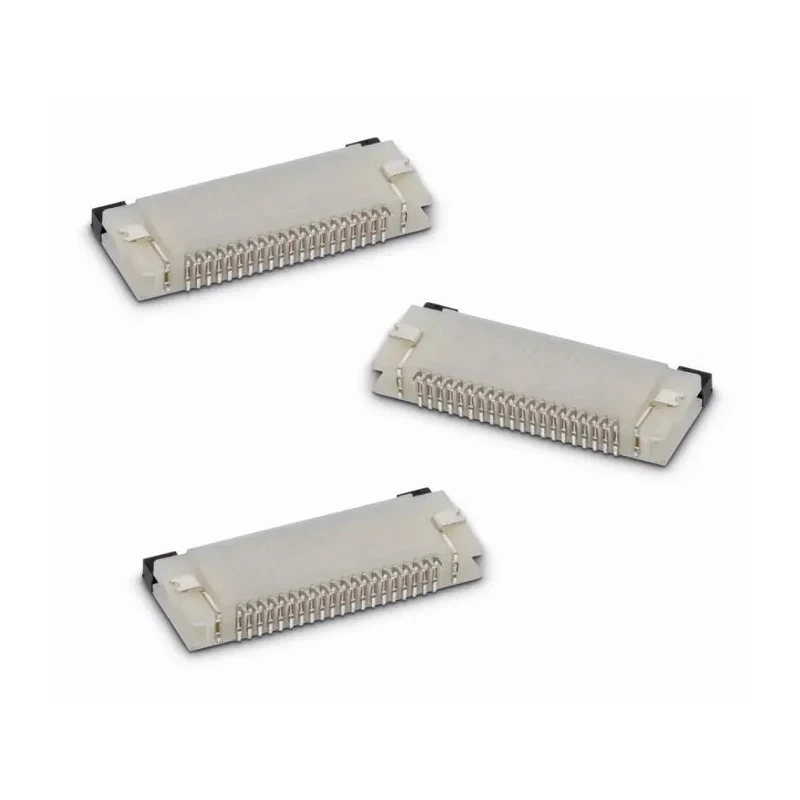

Wurth Elektronik FPC Connector 0.5 mm Pitch 18 Way Horizontal Female Solder Type WR-FPC 687118149022
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features 18 contacts with 0.5 mm pitch for high-density connections.
- Gender is female with horizontal orientation for surface mounting.
- Contact material is phosphor bronze with tin over nickel plating ensuring conductivity and durability.
- Incorporates a flip-lock hinge actuator for secure cable connection and solder retention for PCB stability.
- Designed for low insertion force (ZIF) operation enhancing assembly ease.
- Rated for 500 mA current and 50 V AC voltage with 1 row of contacts.
- Operating temperature ranges from -40°C to 105°C suitable for diverse environments.
- Housing made of polyamide for durability and lightweight design.
Product Description
Wurth Elektronik 687118149022 is a high precision FPC (Flexible Printed Circuit) Connector designed with 0.5 mm pitch, featuring 18 way horizontal female contacts terminated by solder type. This WR-FPC series connector exhibits a bottom contact configuration combined with a hinged flip-lock actuator to secure the FFC/FPC cable reliably without requiring a mating connector.
Constructed with phosphor bronze contacts plated with tin over nickel and housed in polyamide, the connector offers excellent conductivity, corrosion resistance, and mechanical robustness. The surface mount type connector supports a current rating of 500 mA and voltage up to 50 V AC, with a single row of contacts arranged horizontally to suit compact, space-saving electronic assemblies.
Its Zero Insertion Force (ZIF) design reduces mechanical stress during assembly, with a lock mechanism ensuring reliable retention. Designed to operate across temperatures from -40°C to 105°C, this connector is suitable for harsh industrial and commercial electronics environments including miniaturised consumer electronics and instrumentation.
The connector's solder termination includes a retention feature improving solder joint integrity on the PCB during manufacturing. Typical applications include connections to small displays, keyboards, or other compact modules requiring secure FPC cable interconnections with minimal footprint.
Features 18 contacts with 0.5 mm pitch spacing. Phosphor bronze contact material with tin over nickel plating for reliability. Horizontal 1-row female connector with hinged actuator lock. Low insertion force ZIF type enhances ease of assembly.
Surface mount termination with solder retention for manufacturing robustness. Rated current 500 mA and voltage 50 V AC. Operating temperature range from -40°C to 105°C. Durable polyamide housing in compact form factor. Ideal for miniature electronics like displays and keyboards.
Wurth Elektronik's WR-FPC Connectors are recognized for quality and versatility across industrial, electronics manufacturing, and laboratory applications. This model provides a secure, compact interface for flexible printed circuit cables, contributing to streamlined device assembly and enhanced reliability.
Explore more precision electronic connectors and components on EnvMart for your industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 0.5 mm pitch and has 18 contacts.
It is rated for a maximum current of 500 mA and a voltage of 50 V AC.
The contacts are made of phosphor bronze with tin over nickel plating, and the housing is constructed from polyamide.
This model uses a solder termination type, which includes a retention feature for improved solder joint integrity.
It operates within a temperature range of -40°C to 105°C, making it suitable for various environments.
The connector has a horizontal orientation and is designed for surface mounting.
This model features a Zero Insertion Force (ZIF) design, which enhances ease of assembly.
Typical applications include connections to small displays, keyboards, or other compact modules requiring secure FPC cable interconnections.
The flip-lock hinge actuator secures the FFC/FPC cable reliably without needing a mating connector, ensuring a stable connection.
The connector has a bottom contact configuration with a single row of contacts arranged horizontally.
The connector is manufactured in China.
This model belongs to the WR-FPC series of connectors.
