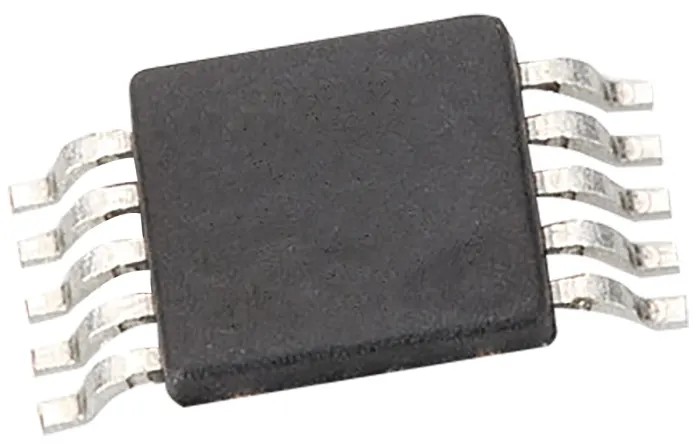

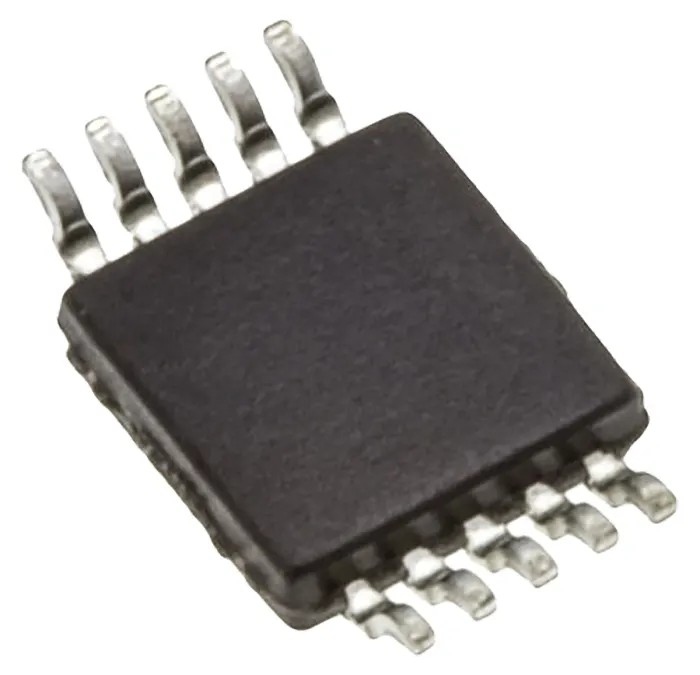

Microchip Delta Sigma 18 bit 2 Channel Analogue to Digital Converter 4 sps 10-Pin MSOP MCP3423-E/UN
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 18 bit |
| Brand | Microchip |
| Height | 1.1mm |
| Length | 3mm |
| Model | MCP3423-E/UN |
| Mount Type | Surface |
| Sampling rate | 4sps |
| Series | MCP3423 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Architecture | Delta Sigma |
| Pin Count | 10 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 2 |
Key Features
- This ADC utilizes the Delta Sigma architecture for high-accuracy voltage input conversion.
- Equipped with two ADCs allowing simultaneous multi-channel measurements.
- Sampling rate of 4 samples per second supports low-speed precision data acquisition.
- Surface mount MSOP package with a 10-pin configuration enables space-saving PCB mounting.
- Operational in wide temperature range from -40°C to 85°C suitable for industrial applications.
- Operates at a supply voltage range of 5 to 5.5 volts providing compatibility with standard systems.
- Integrates easily with serial I2C interface for communication with microcontrollers or other devices.
- Complies with automotive standard AEC-Q100 ensuring reliability in automotive environments.
Product Description
Microchip MCP3423-E/UN is a high-precision Delta Sigma analogue to digital converter delivering 18-bit resolution across two ADC channels. It supports a sampling rate of 4 samples per second, optimized for applications requiring slow, highly accurate analog voltage measurements. Packaged in a compact 10-pin MSOP surface mount device, the MCP3423 series enables efficient PCB space utilization, making it suitable for embedded and industrial environments.
Designed for operation at supply voltages between 5 and 5.5 volts and capable of functioning in a broad temperature range of -40°C to +85°C, this ADC is well-suited for demanding industrial, automotive, and laboratory applications requiring robust environmental endurance.
The device supports voltage input types and communicates via a serial I2C interface, facilitating easy integration with microcontrollers and digital systems. The MCP3423-E/UN is compliant with AEC-Q100 automotive standards, emphasizing its reliability for automotive system deployments.
Typical use cases include precision sensor data acquisition, industrial control systems, laboratory instrumentation, and automotive electronics where accurate analog measurement and conversion are critical.
This ADC employs Delta Sigma architecture to provide high accuracy and noise reduction. Two ADC channels allow monitoring of multiple voltage sources simultaneously. Sampling rate of 4sps meets requirements for precision measurements in low-speed applications.
Surface mount MSOP 10-pin package supports compact and automated assembly processes. Wide operational temperature range ensures stability under harsh conditions. Operates on 5 to 5.5 V supply, compatible with common voltage rails.
I2C serial interface allows simple digital communication and control. AEC-Q100 compliance guarantees automotive grade reliability. Small package size of 3 mm by 1.1 mm supports space-constrained designs.
Set includes 1 Pc MCP3423-E/UN ADC device ready for integration into electronic designs. Explore more semiconductor solutions and Analogue to Digital Converters on EnvMart for advanced electronics manufacturing and design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has an 18-bit resolution, allowing for high-accuracy voltage input conversion.
The maximum sampling rate is 4 samples per second, optimized for low-speed precision data acquisition.
It operates within a temperature range of -40°C to +85°C, making it suitable for industrial applications.
The device utilizes a serial I2C interface for communication with microcontrollers or other devices.
This model features two ADC channels, allowing for simultaneous multi-channel measurements.
It comes in a 10-pin MSOP surface mount package, which supports efficient PCB space utilization.
It operates at a supply voltage range of 5 to 5.5 volts, providing compatibility with standard systems.
The MCP3423-E/UN complies with the AEC-Q100 automotive standard, ensuring reliability in automotive environments.
It supports voltage input types for accurate analog voltage measurements.
The dimensions are 3 mm in length and 1.1 mm in height, making it suitable for space-constrained designs.
This ADC employs Delta Sigma architecture, which provides high accuracy and noise reduction.
It is suitable for precision sensor data acquisition, industrial control systems, laboratory instrumentation, and automotive electronics.
