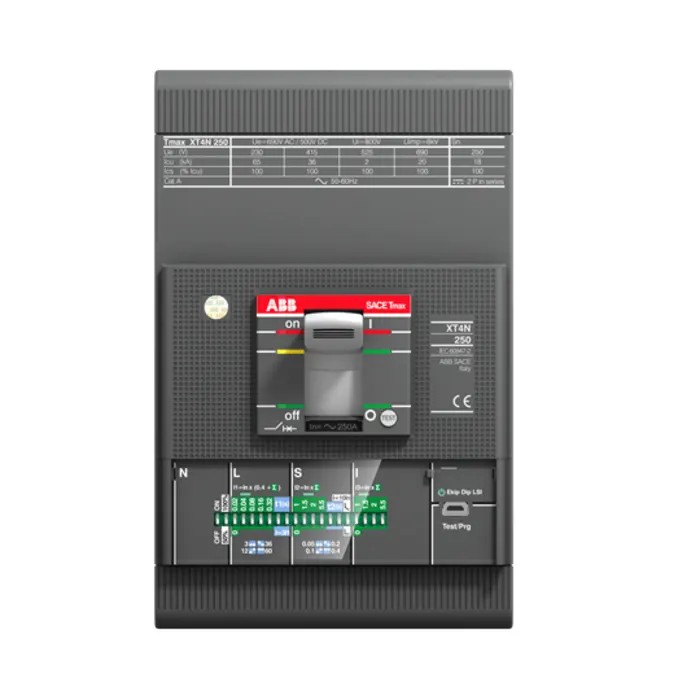

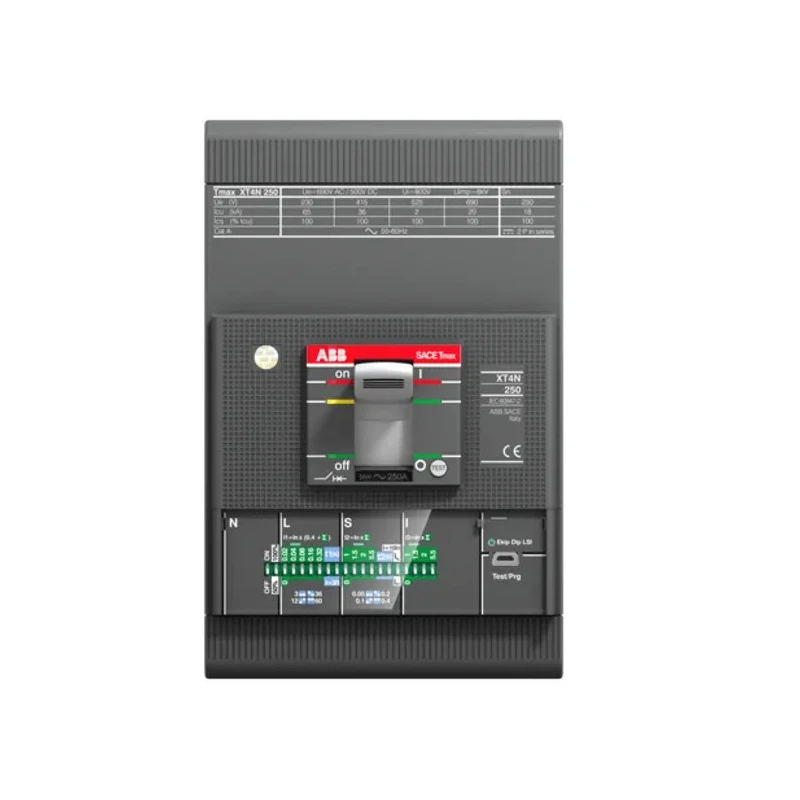

ABB Molded Case Circuit Breaker 3-Pole 100A, Breaking Capacity 65 kA, Fixed Mount XT4N 1SDA068139R1

ABB XT4N Molded Case Circuit Breaker 3-Pole 100A is designed for industrial, commercial, and heavy electrical protection applications. It offers a breaking capacity of 65 kA, making it suitable for high fault current environments. The breaker is fixed mounted and features solid state tripping technology ensuring precise and reliable protection against overloads, short circuits, and electrical faults.

This circuit breaker operates at a rated AC voltage of 690V and provides an insulation voltage (Ui) of 1000V, offering enhanced security and durability. The reset actuator is lever operated, allowing straightforward manual resetting after a trip event.

With dimensions of 160mm in height, 105mm in width, and 82.5mm in depth, it features a compact footprint optimizing panel space. It includes 3 poles with fixed terminals, suitable for robust and secure connections in electrical distribution systems.

The unit complies with international standards including CE, IEC, and RoHS, affirming its quality and environmentally responsible design. It is designated as a Better World product with a claim for designed-for-disassembly contributing to sustainability goals.

The short circuit performance level 'N' and the solid state release mechanism enhance operational safety and reliability in demanding environments. Italian manufacturing origin vouches for precision engineering and high manufacturing standards.

Rated current: 100A. Breaking capacity: 65 kA. Mounting type: Fixed. Standards compliance: CE, IEC, RoHS. Better World product with designed-for-disassembly claim. Reset actuator: Lever type. Tripping mechanism: Solid state release.

3 poles with fixed terminals.

This Molded Case Circuit Breaker is ideal for electrical distribution and motor protection in industrial, manufacturing, and commercial setups. Its compact size and robust features allow it to be incorporated easily in complex panel assemblies and switchgear.
