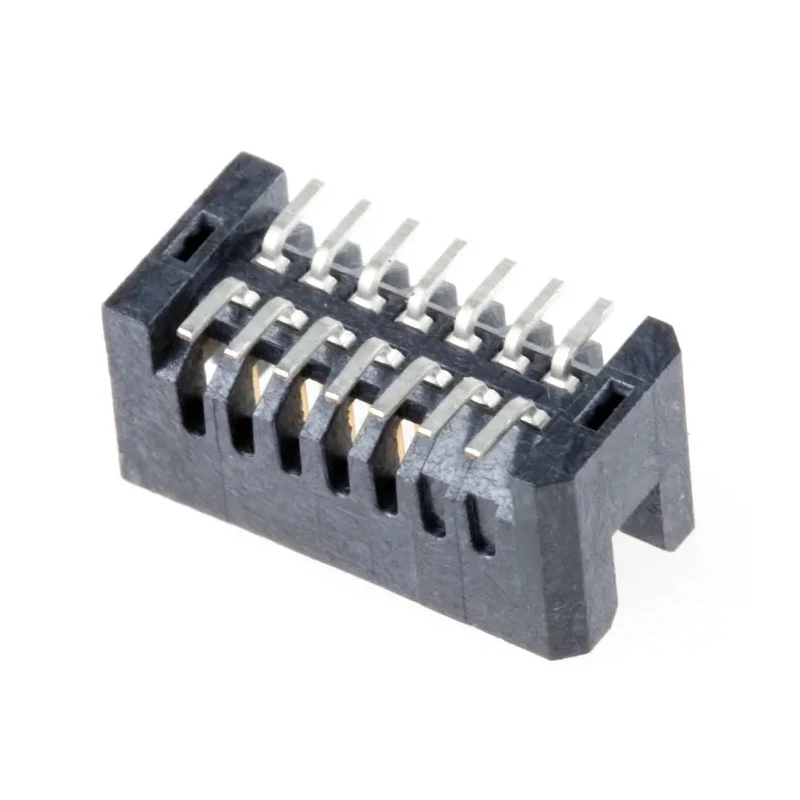

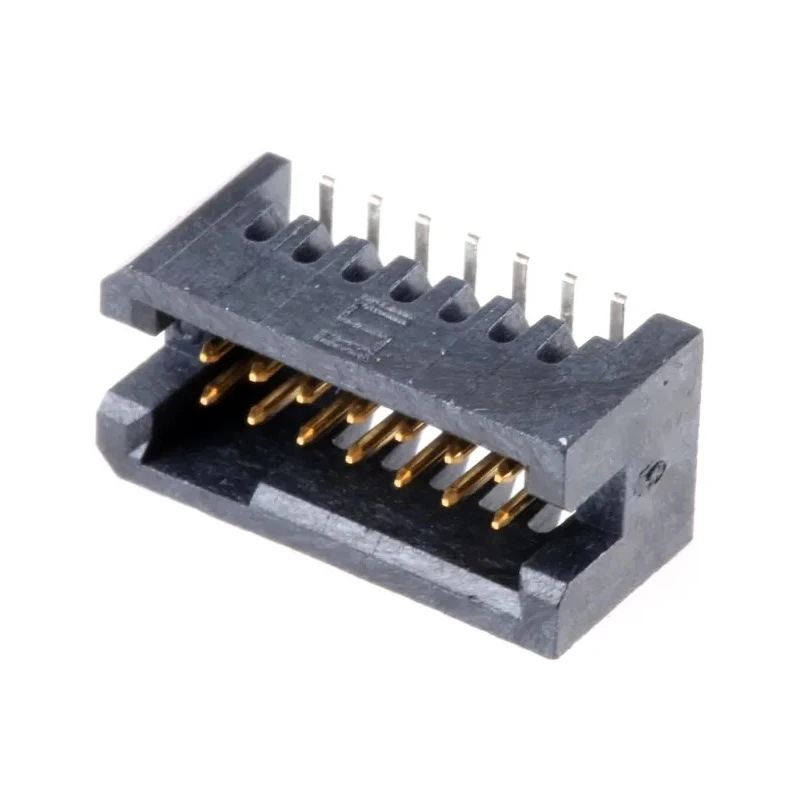

Samtec TFM Series Straight Surface PCB Header, 14 Contact 1.27 mm Pitch, 2 Row, Shrouded TFM-107-02-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5A |
| Model | TFM-107-02-L-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TFM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Designed with a shrouded housing made of liquid crystal polymer for durability.
- Supports a current rating of 5A and voltage of 350V for reliable electrical performance.
- Constructed with phosphor bronze contacts plated with gold for corrosion resistance.
- Surface mount type with male contact gender ensures secure solder termination.
- Operates reliably between -55°C and 125°C in various electronic applications.
- Provides precise 1.27 mm pitch and row pitch for high-density PCB layouts.
- Compatible with SFM series board-to-board sockets and SFSD series IDC cable assemblies.
Product Description
Samtec TFM-107-02-L-D Straight Surface PCB Header is a high-quality electronic component designed for secure board-to-board and wire-to-board connections. Featuring 14 phosphor bronze contacts plated with gold in a shrouded liquid crystal polymer housing, this PCB header ensures superior electrical performance with a current capacity of 5A and a voltage rating of 350V.
The 1.27 mm pitch and 2-row configuration provide precise alignment and compatibility with standard PCB layouts. Its surface mount design, male contact gender, and solder termination type facilitate efficient assembly processes in manufacturing environments.
Operating over a broad temperature range from -55°C to 125°C, the TFM Series header suits a variety of industrial, electronic, laboratory, telecom, and manufacturing applications requiring reliable signal and power connections.
The shrouded housing design offers extra protection to the contacts and connection integrity. Board-to-board sockets from the SFM series and IDC cable assemblies from the SFSD series complement this header for complete system integration.
Designed with a shrouded housing made of liquid crystal polymer for durability. Supports a current rating of 5A and voltage of 350V for reliable electrical performance. Constructed with phosphor bronze contacts plated with gold for corrosion resistance.
Surface mount type with male contact gender ensures secure solder termination. Operates reliably between -55°C and 125°C in various electronic applications. Provides precise 1.27 mm pitch and row pitch for high-density PCB layouts.
Compatible with SFM series board-to-board sockets and SFSD series IDC cable assemblies.
This PCB header is essential for electronic assemblies requiring compact and reliable connectors to maintain signal integrity under diverse environmental conditions. It is widely used in telecommunications, computing equipment, industrial controls, and other precision electronics.
Explore more from Samtec connectors and browse EnvMart's extensive range of PCB Headers and electronic components to meet your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5A and a voltage rating of 350V, ensuring reliable electrical performance.
It operates reliably between -55°C and 125°C, making it suitable for various electronic applications.
This unit features a surface mount design, facilitating efficient assembly processes in manufacturing environments.
This model has 14 contacts, providing ample connection points for various applications.
The housing is made of liquid crystal polymer, and the contacts are constructed from phosphor bronze plated with gold for corrosion resistance.
Yes, it is compatible with SFM series board-to-board sockets and SFSD series IDC cable assemblies for complete system integration.
It has a precise pitch of 1.27 mm, which is suitable for high-density PCB layouts.
This model features a male contact gender, ensuring secure solder termination.
It utilizes a solder termination type, which is standard for secure connections in electronic assemblies.
This PCB header is widely used in telecommunications, computing equipment, industrial controls, and other precision electronics requiring reliable signal and power connections.
The orientation of this model is straight, designed for straightforward installation on PCBs.
The country of origin for this PCB header is India.
