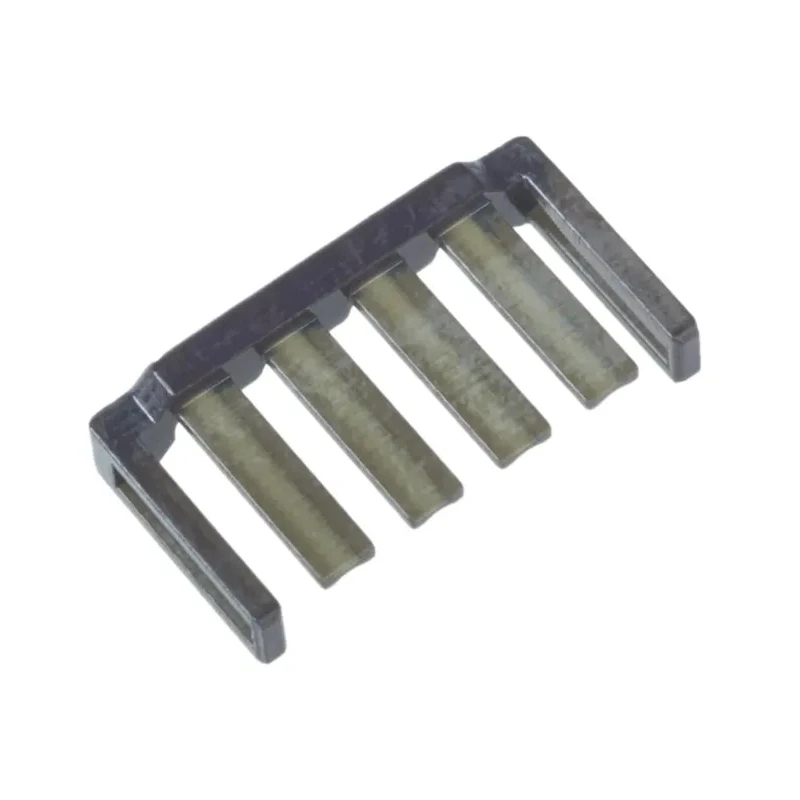

Molex Terminal Position Assurance for Series 105307 and 105308 Receptacle, Operating Temperature -40°C to 105°C 105325-2002
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Series | 105325 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Series OF 105307 AND 105308 (RECEPTACLE) |
Key Features
- The 2.5 mm Nano-Fit TPA retainer enhances connector reliability in electrical assemblies.
- Suitable for use with Nano-Fit Series 105307 and 105308 crimp housings.
- Operates reliably in temperatures from -40°C to 105°C.
- Manufactured to comply with UL-94V-0 flammability standards, RoHS Directive 2011/65/EU, and ELV Directive 2000/53/EC.
- Helps maintain secure electrical contact and connector performance in demanding applications.
- Originates from China, ensuring consistent quality manufacturing.
Product Description
Molex 105325-2002 Terminal Position Assurance (TPA) is a critical connector accessory designed specifically for use with Nano-Fit Series 105307 and 105308 receptacle crimp housings. This TPA retainer ensures that crimp terminals remain fully seated within the housings, preventing terminal backout which can result in electrical failure.
The product is engineered for reliable operation within a temperature range of -40°C to 105°C, making it suitable for a wide variety of industrial, commercial, and electronic applications. Manufactured to meet strict UL-94V-0 flammability standards and compliant with RoHS Directive 2011/65/EU and ELV Directive 2000/53/EC, it ensures environmental and safety regulations are met.
The 2.5 mm Nano-Fit wire to board connector system, including this TPA retainer, enables secure, compact, and durable electrical connections. The TPA continues to secure the contacts even if the main retention feature in the housing fails, thereby ensuring the integrity of electrical circuits.
The 2.5 mm Nano-Fit TPA retainer provides additional terminal retention in connector assemblies. Compatible with Series 105307 and 105308 (receptacle) crimp housings. Operational temperature range from -40°C up to 105°C.
Complies with UL-94V-0, RoHS Directive 2011/65/EU, and ELV Directive 2000/53/EC. Manufactured in China to consistent quality standards. Enhances connector reliability in electronic, industrial, and power applications.
Terminal Position Assurance devices like the Molex 105325-2002 are essential for applications requiring secure and durable electrical connections in harsh environments. They find use in electronic components manufacturing, industrial automation, automotive electronics, and other precision electronic assemblies.
For additional technical documents, design resources, and 3D models for integration, users can refer to Molex’s support documentation and design software platforms. This product is categorized under Crimp Terminal, a vital component for secure electrical connection solutions in Electronics & Electricals at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for the Molex Terminal Position Assurance is from -40°C to 105°C.
This TPA is specifically designed for use with the Nano-Fit Series 105307 and 105308 receptacle crimp housings.
It complies with UL-94V-0 flammability standards, the RoHS Directive 2011/65/EU, and the ELV Directive 2000/53/EC.
The primary function of this TPA is to ensure that crimp terminals remain fully seated within the housings, preventing terminal backout and potential electrical failure.
This product is manufactured in China, ensuring consistent quality standards.
The series designation for this terminal position assurance is 105325.
This TPA is suitable for a variety of industrial, commercial, and electronic applications that require secure electrical connections.
It enhances connector reliability by providing additional terminal retention in connector assemblies, ensuring secure electrical contact even if the main retention feature fails.
The Nano-Fit connector system associated with this TPA has a size of 2.5 mm.
Key features include its temperature range of -40°C to 105°C, compatibility with specific crimp housings, and compliance with important safety and environmental standards.
Yes, additional technical documents, design resources, and 3D models for integration can be found in Molex’s support documentation and design software platforms.
The TPA helps maintain secure electrical contact and connector performance, especially in demanding applications, by preventing terminal backout.
