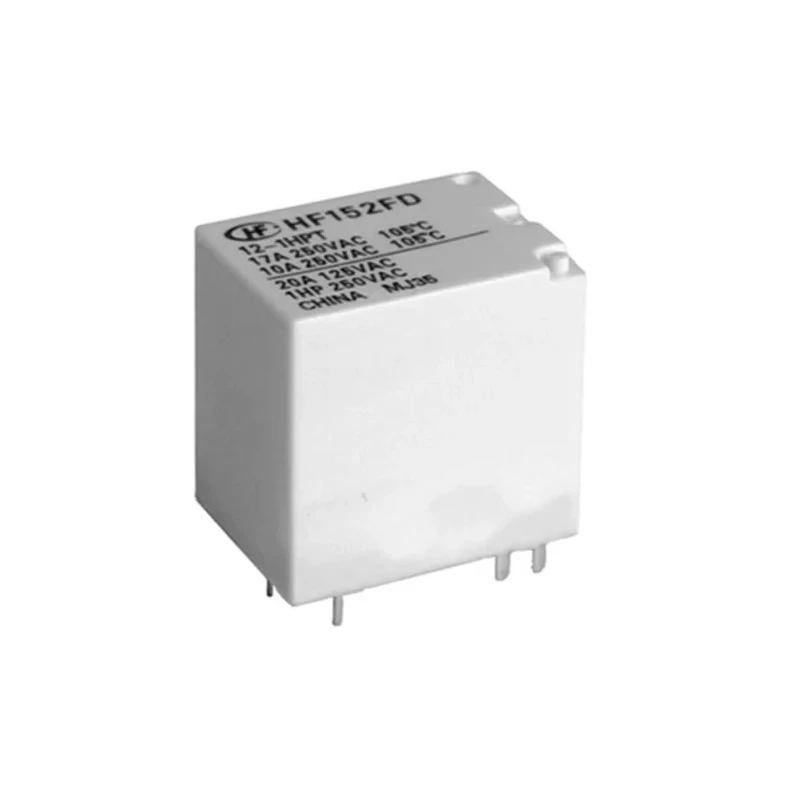

Hongfa Europe GMBH PCB Power Relay, 24V DC Coil Voltage, 20A Switching Current, SPST Contact HF152FD/24-1HTF(335)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 20.6mm |
| Length | 21.2mm |
| Model | HF152FD/24-1HTF(335) |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF152FD |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.6kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 360mW |
Key Features
- Operates with a coil voltage of 24V DC for consistent performance.
- Single Pole Single Throw (SPST) contact configuration for straightforward switching.
- Handles a switching current of up to 20 amperes.
- Coil resistance is 1.6 kΩ ensuring low power consumption.
- Switching AC voltage rating of 400V AC ensures versatility in applications.
- Silver alloy contacts provide high electrical endurance and reliability.
- Operating temperature range from -40°C to 105°C for wide environmental adaptability.
- Coil power consumption is low at 360 mW, enhancing energy efficiency.
Product Description
Hongfa Europe GMBH HF152FD/24-1HTF(335) PCB Power Relay is engineered for industrial and electronic PCB applications requiring reliable high current switching. It operates with a 24V DC coil and supports a single pole single throw (SPST) contact configuration capable of switching currents up to 20A.
The relay offers a coil resistance of 1.6 kΩ and coil power of 360 mW, which translates to low power consumption, making it suitable for applications where energy efficiency is critical. Its silver alloy contacts provide high electrical endurance and low contact resistance of 100 mΩ, enhancing reliability and signal integrity over prolonged use.
The relay is designed for PCB mounting with compact dimensions of 21.2mm length, 16mm width, and 20.6mm height, thereby optimizing board space usage. It can operate safely within a temperature range from -40°C to 105°C, suitable for varied industrial environments. It also has a switching AC voltage capability of up to 400V AC.
Certified to RoHS standards, this power relay is environmentally friendly and designed to resist vibration and abrasion for high mechanical endurance, with an expected lifespan of 10 million cycles. This relay is ideal for use in control devices within automotive, household appliances, industrial machinery, and telecommunication sectors.
Operates at 24V DC coil voltage. SPST contact configuration for reliable switching. Switching current capacity of 20 amperes. Low coil power consumption of 360mW. Silver alloy contacts ensure durability. Wide operating temperature range from -40°C to 105°C.
Compact PCB mount form factor. Compliant with RoHS environmental standards. High mechanical endurance and vibration resistance. Suitable for various industrial and commercial applications.
This PCB Power Relay by Hongfa Europe GMBH represents a robust, efficient solution for electronic switching needs in industrial, automation, and commercial environments. Browse our Electronics & Electricals category to explore more relays and contactors by top manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a coil voltage of 24V DC.
This model can handle a switching current of up to 20 amperes.
It features a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is 1.6 kΩ, ensuring low power consumption.
It has a switching AC voltage rating of 400V AC.
The dimensions are 21.2mm in length, 16mm in width, and 20.6mm in height.
It operates safely within a temperature range from -40°C to 105°C.
The coil power consumption is low at 360 mW, enhancing energy efficiency.
The contacts are made of silver alloy, providing high electrical endurance.
Yes, it is certified to RoHS standards, making it environmentally friendly.
This unit is designed for PCB mounting, optimizing board space usage.
The contact resistance is 100 mΩ, which enhances reliability and signal integrity.
