Kingbright 1-Digit 7 Segment LED Display Red Cathode 23mcd Right Side 26 mm SC10-11EWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | SC10-11EWA |
| Mount Type | Through Hole |
| Character height | 26mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 22.5mm |
| External Depth | 8.5mm |
| External Height | 32.9mm |
| Power Dissipation | 150mW |
| Luminous Intensity | 23mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 625nm |
| Colour of Face | Grey |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 13mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
| LED, display, 7 segment, common cathode, high eff, RH DP, red, 1in, 14 pinBrand | NEUTRAL |
Key Features
- High visibility red LED with a luminous intensity of 23 millicandela.
- Single character width of 13 mm and height of 26 mm for clear digital representation.

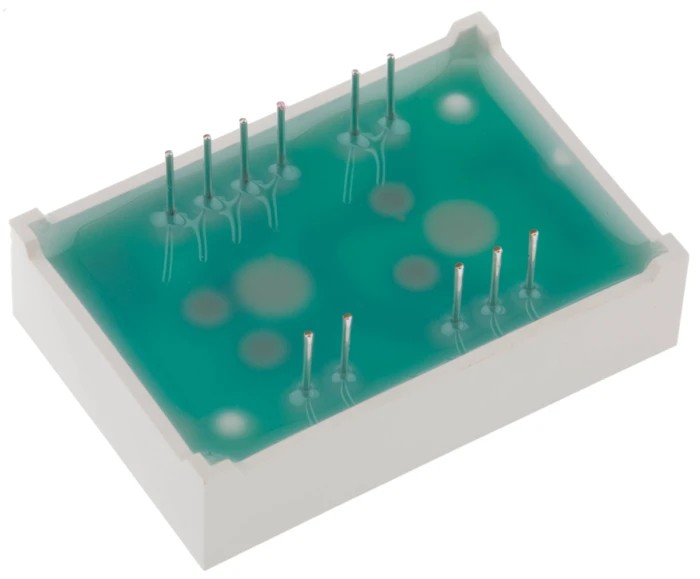

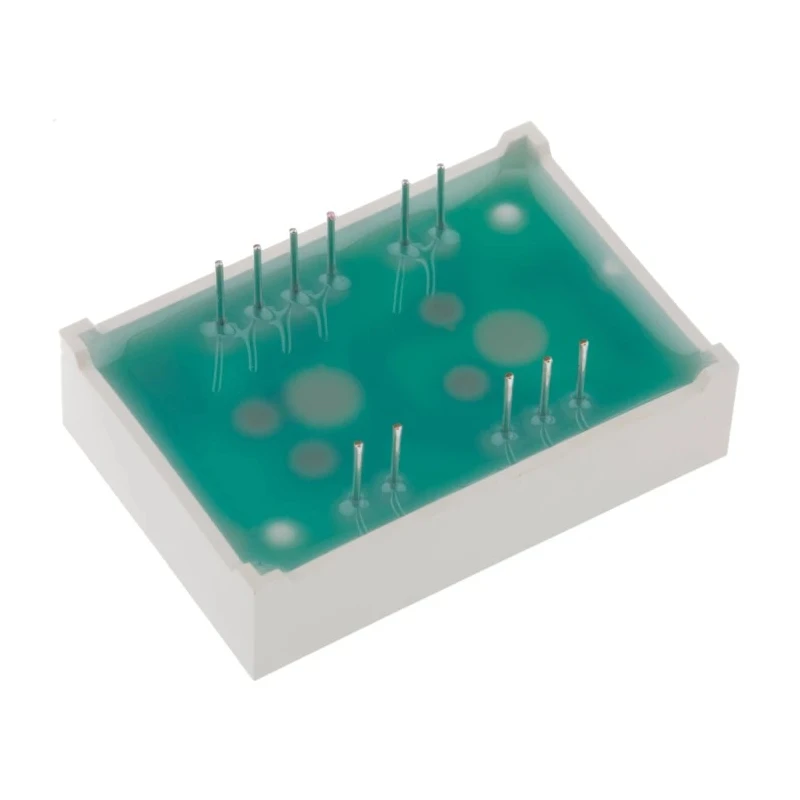

- Robust through-hole mounting for easy PCB installation.
- Operating temperature range from -40°C to 85°C for industrial reliability.
- Low power dissipation at 150 milliwatts ensures energy efficiency.
- Cathode common connection type suitable for standard display circuits.
- Right side decimal point orientation for accurate numeric display.

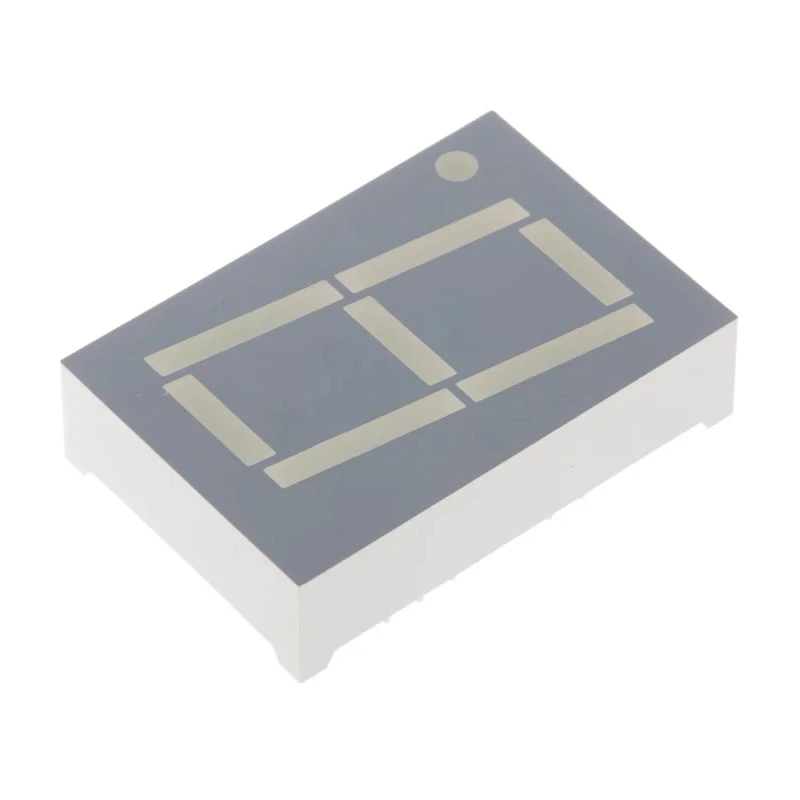

- Grey face with white segments enhances contrast and readability.
Product Description
Kingbright SC10-11EWA is a high-visibility 1-digit 7 segment LED display, designed with a common cathode connection and emitting bright red light at 625 nm wavelength with a luminous intensity of 23 millicandela. It features a sizeable character height of 26 mm and character width of 13 mm, making it ideal for industrial and electronic applications requiring precise numeric representation.
The display is built with a grey face and white segments to ensure excellent on/off contrast for easy readability even under varying ambient lighting conditions. It offers a right side decimal orientation, commonly used in digital readouts and instrumentation panels.
This LED display uses a through-hole mount type for secure and reliable installation onto printed circuit boards. It operates efficiently with a forward current of 30 mA and power dissipation of just 150 mW, fostering low energy consumption in circuits.
Temperature tolerance ranges from -40°C to 85°C, allowing for usage in diverse industrial, laboratory, and commercial environments. The product adheres to RoHS standards, confirming compliance with environmental safety directives.
High visibility red LED with 23 mcd luminous intensity. Robust through-hole mounting on printed circuit boards. Industrial-grade operating temperature from -40°C to 85°C. Low power consumption with 150 mW power dissipation.
Common cathode connection suitable for various electronics projects. Right side decimal point orientation for accurate numeric displays. Durable grey face with white segments for enhanced readability. RoHS compliant ensuring environmental safety.
This Kingbright 7 segment LED display is suitable for electronic component applications, including digital meters, counters, and display modules used in industrial automation, laboratory instrumentation, HVAC controls, manufacturing equipment, and general-purpose electronics.
