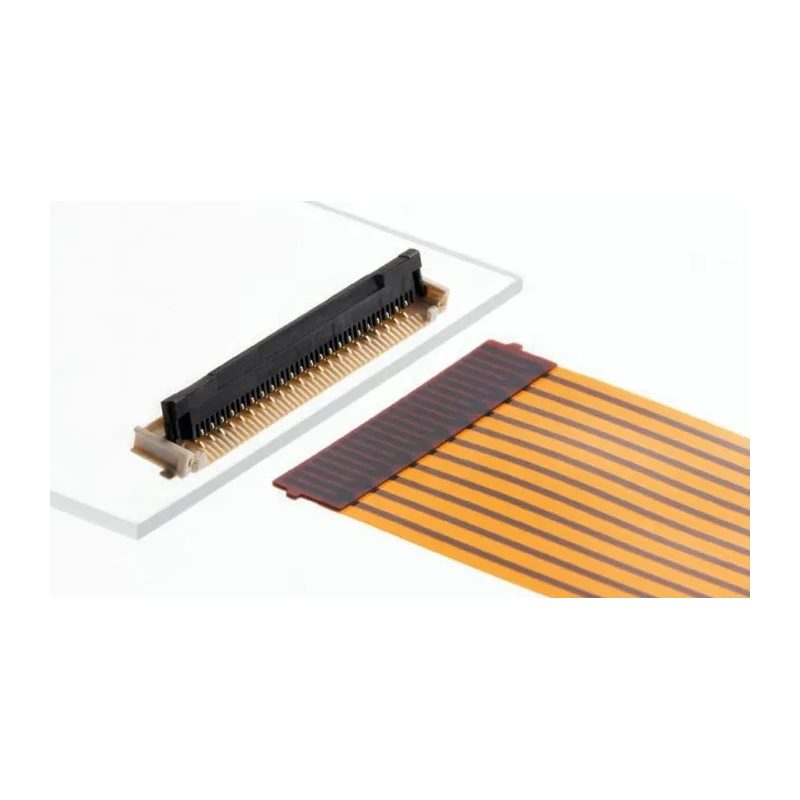

Molex 1 mm Pitch 6 Way Right Angle Male FPC Connector, Solder, Phosphor Bronze Contacts, Gold over Nickel Plating 200528-0060
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | 200528 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Connector Gender | Male |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features phosphor bronze contacts with gold over nickel plating for superior conductivity and corrosion resistance.
- Designed with a Zero Insertion Force (ZIF) bottom contact for easy cable insertion and minimal wear.
- Operates reliably in a wide temperature range from -40°C to 105°C for harsh environments.
- Constructed with durable liquid crystal polymer housing for mechanical strength and flexibility.
- Supports a current rating of 500mA and voltage of 50V AC/DC for energy-efficient operation.
- Includes a locking mechanism and right-angle orientation for secure and space-saving PCB connections.
- Suitable for applications such as optical disc drives, portable gaming consoles, and car navigation systems.
- Offers a compact design with a 1 mm pitch and 6 contact positions in a single row layout.
Product Description
Molex 200528-0060 1 mm Pitch 6 Way Right Angle Male FPC Connector is engineered for precise and reliable connections in electronics manufacturing. Featuring phosphor bronze contacts plated with gold over nickel, this connector ensures optimal electrical conductivity and resistance to corrosion over long-term use.
This 6-contact connector uses a Zero Insertion Force design with bottom contacts that allow easy cable insertion while reducing wear and tear, enabling repeated cycling without damage. The liquid crystal polymer housing offers robustness and flexibility under demanding conditions.
Rated for 50V AC/DC and supporting a current of 500mA, it reliably operates within temperatures ranging from -40°C to 105°C, making it suitable for harsh industrial and consumer electronic environments. Its right-angle orientation facilitates compact PCB layouts, and the integral locking mechanism secures the connection against vibrations.
Commonly used in optical disc drives, portable gaming consoles, and automotive navigation systems, this connector delivers dependable performance in versatile applications. Phosphor bronze contacts with gold over nickel plating ensure long-lasting conductivity and corrosion resistance.
Zero Insertion Force bottom contact design for ease of assembly and minimal connector wear. Durable liquid crystal polymer housing withstands mechanical stress and temperature extremes. Rated 500mA current and 50V voltage for efficient energy use.
Right-angle male connector with locking mechanism provides secure and space-saving mounting. Wide operating temperature range from -40°C to 105°C supports diverse application environments. Compact 1 mm pitch with 6 contacts in a single row optimizes board space.
Includes solder termination for strong attachment to PCB.
This Molex FPC Connector series is ideal for industrial, laboratory, consumer electronics, automotive, and manufacturing settings requiring robust and precise flexible PCB connections. Its carefully designed construction ensures reliability and ease of use in intricate electronic assemblies. Discover more Molex connectors in the Electronics & Electricals category at EnvMart for comprehensive interconnection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 50V AC/DC, ensuring efficient energy use in various applications.
It supports a current rating of 500mA, making it suitable for energy-efficient operation.
The contacts are made of phosphor bronze with gold over nickel plating, while the housing is constructed from liquid crystal polymer.
The ZIF design allows for easy cable insertion and minimizes wear, enabling repeated cycling without damage.
This connector features a right-angle orientation, which facilitates compact PCB layouts and secure connections.
It has 6 contacts arranged in a single row layout, optimizing board space.
It uses solder termination for a strong attachment to the PCB, ensuring reliable connections.
It is commonly used in optical disc drives, portable gaming consoles, and automotive navigation systems.
This model is designed for surface mounting, which is typical for PCB applications.
The contact position is located at the bottom, which is characteristic of the ZIF design.
The country of origin for this connector is Japan.
