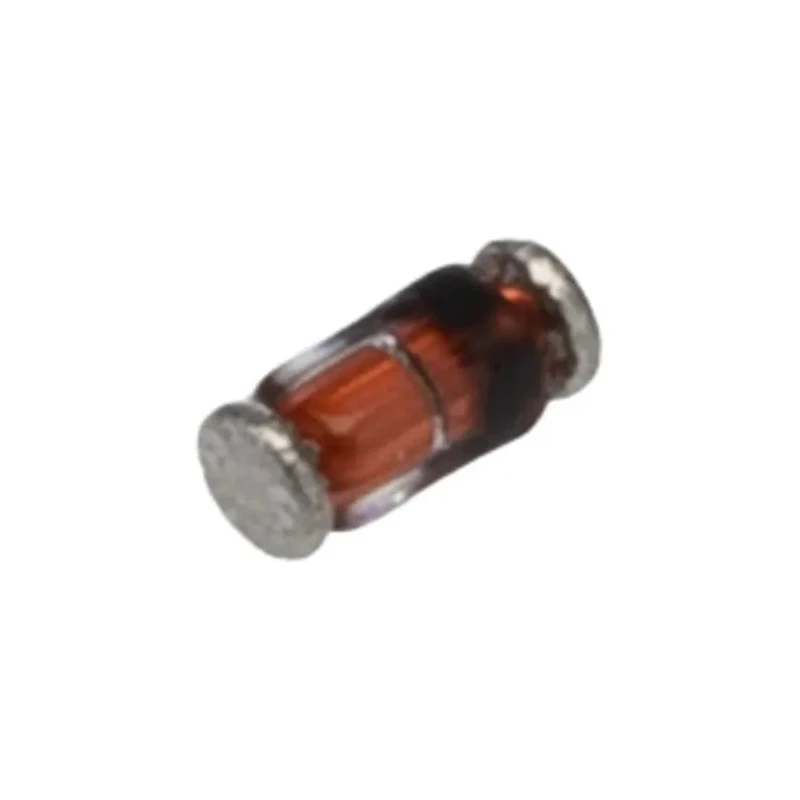

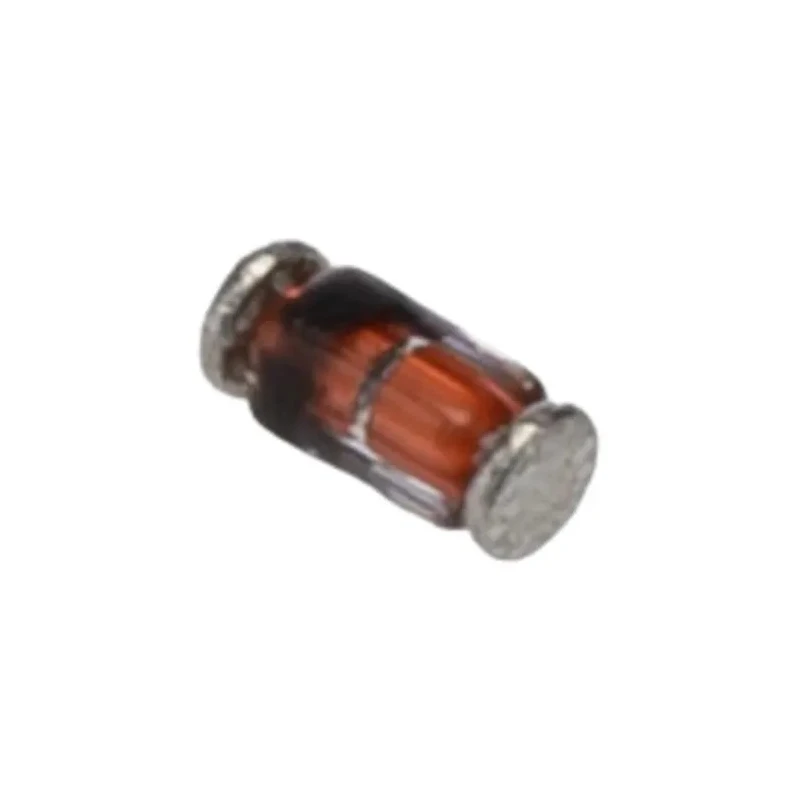

Vishay Silicon Junction Switching Diode, Single, 300 mA, 100 V, 2-Pin Quadro Melf LS4148-GS08

Free Delivery in India | Lowest Global Shipping Charges

Vishay Silicon Junction Switching Diode, Single, 300 mA, 100 V, 2-Pin Quadro Melf LS4148-GS08

Name: Vishay Silicon Junction Switching Diode, Single, 300 mA, 100 V, 2-Pin Quadro Melf LS4148-GS08
Brand: Vishay
SKU: 185853
Price: 0.04 USD
Availability: InStock



Category Discrete Semiconductors Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	1.6mm
Brand	Vishay
Height	1.5mm
Length	3.5mm
Model	LS4148-GS08
Width	1.7mm
Mount Type	Surface
Series	LL4148
Maximum Operating Temperature	175°C
Case	DO-204AL, molded epoxy over glass body
Package Type	Quadro Melf
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Polarity	Color band denotes cathode end
Terminals	Matte tin plated leads, solderable per
Pin Count	2
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	2A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	4ns
Maximum Forward Current If	300mA
Maximum Peak Reverse Repetitive Voltage Vrrm	100V

Key Features

Superectifier structure ensures high reliability under operating conditions.
Glass passivated junction provides cavity-free protection and durability.
Fast switching capability with peak reverse recovery time of 4 ns.
Low leakage current typically less than 0.2 microamps.
High forward surge current capacity up to 2 A peak non-repetitive surge.
Operating temperature range from -65°C to 175°C supports harsh environments.
Compact DO-204AL epoxy molded package with matte tin plated leads.
Color band denotes cathode for correct polarity identification.

Product Description

Vishay LS4148-GS08 is a silicon junction switching diode designed for fast switching applications. This diode features a superectifier structure with a glass passivated junction that ensures high reliability and excellent performance in demanding electrical environments.

The device supports a maximum forward current of 300 mA with a peak reverse voltage of 100 V. It offers fast switching with a peak reverse recovery time of just 4 ns and a low leakage current typically below 0.2 μA.

Designed in a surface mount 2-pin Quadro Melf package, measuring 3.5 mm in length, 1.7 mm width, and 1.5 mm height, it is constructed with a DO-204AL molded epoxy over a glass body. The matte tin plated leads are solderable per J-STD-002 and JESD 22-B102 standards, ensuring ease of assembly and reliability.

This diode withstands a high forward surge current of up to 2 A peak and operates across a wide temperature range from -65°C to 175°C, making it suitable for industrial, electronic manufacturing, instrumentation, and power supply applications.

Typical use cases include high voltage rectification in CRT and TV G2 grids, and as a snubber circuit diode in camera flashes, where fast recovery time and low leakage are critical for efficiency and performance.

Superectifier structure for high reliability condition. Cavity-free glass passivated junction for durability. Fast switching time ensures high efficiency. Low leakage current less than 0.2 microamps. High forward surge capability up to 2 A.

Surface mount Quadro Melf package with epoxy molding. Matte tin plated solderable leads compliant with JESD standards. Wide operating temperature from -65°C to 175°C. Color band indicates cathode end polarity. RoHS-compliant commercial grade component.
