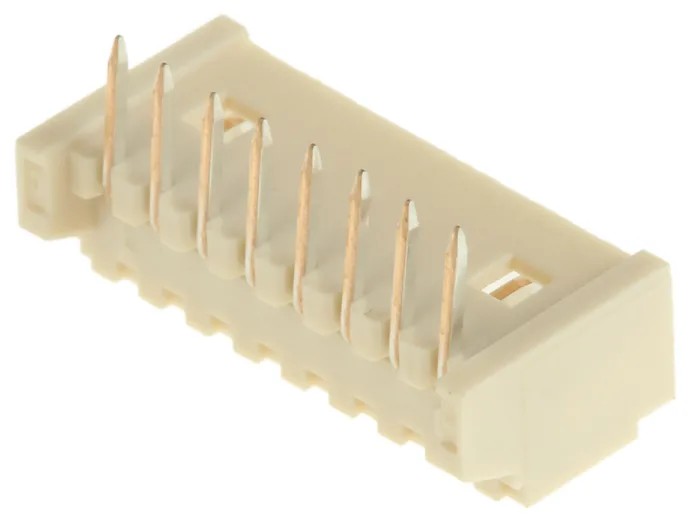

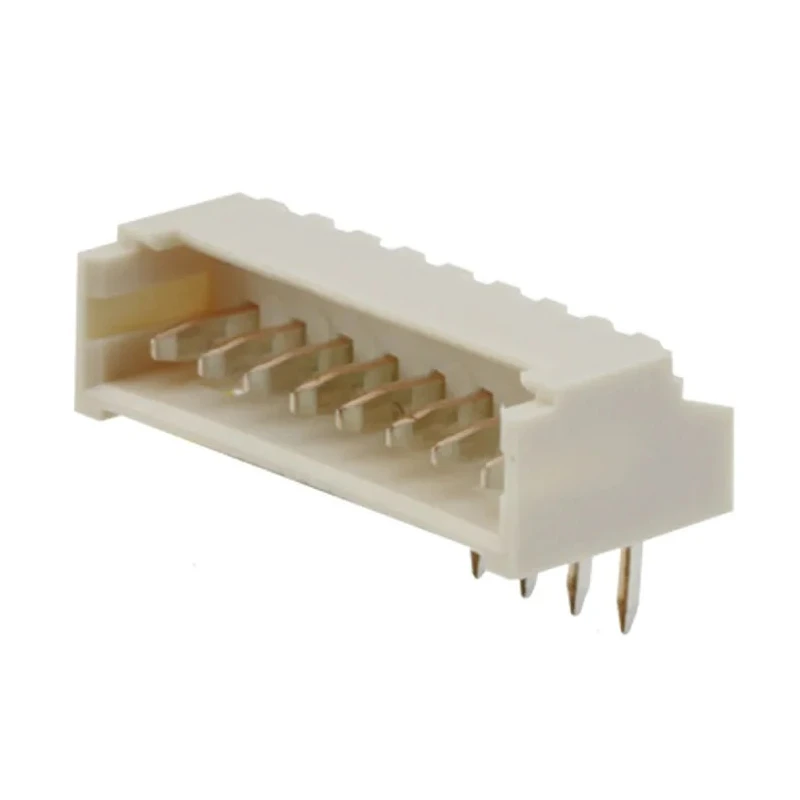

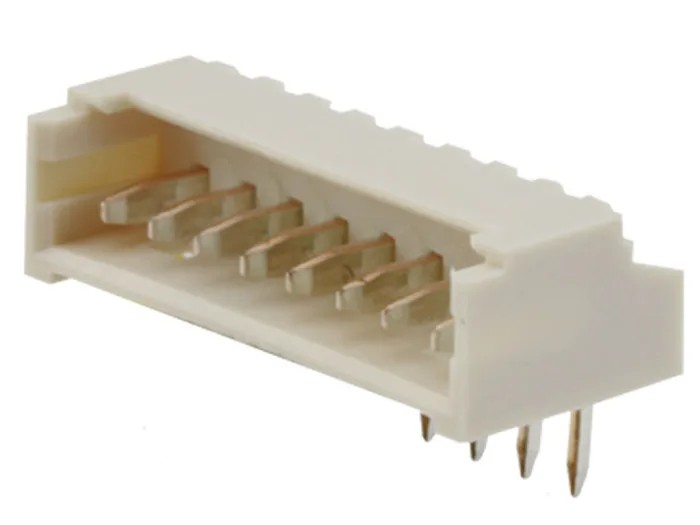

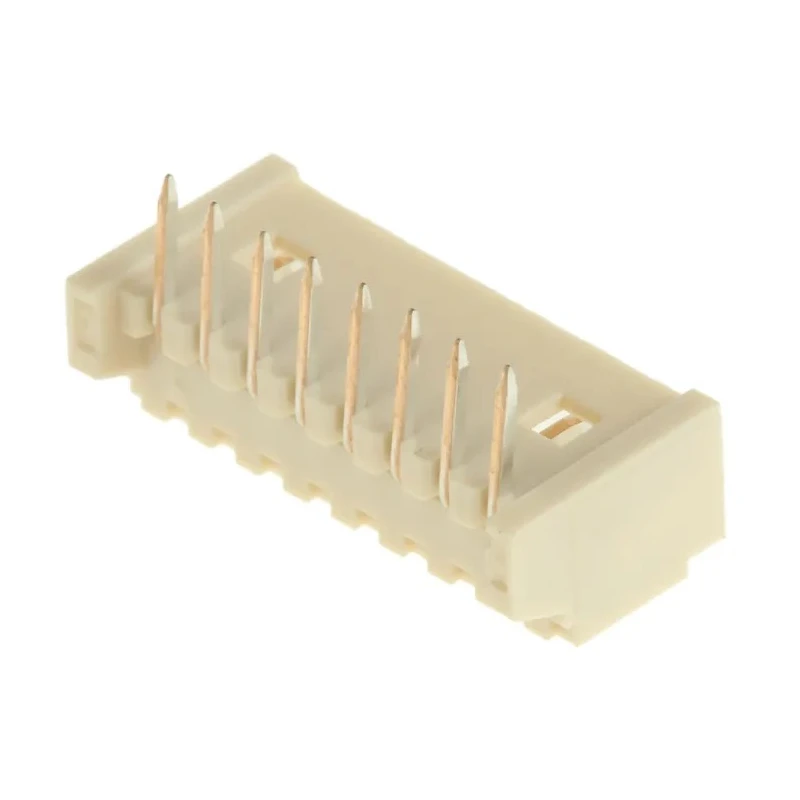

Molex PicoBlade Series Right Angle Through Hole PCB Header, 8 Contacts, 1.25 mm Pitch, 125 V, 1 A Current, Nylon 53048-0810
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.3mm |
Key Features
- Rated for a current of 1 ampere per contact ensuring reliable low power operation.
- Compact right angle design suitable for tight PCB configurations.
- Shrouded connector housing provides secure mating and protection.
- Constructed with phosphor bronze contact material and tin plating for optimal conductivity and corrosion resistance.
- Designed for through-hole solder mounting with 2.3 mm tail pin length for stable installation.
- Operates effectively within a wide temperature range of -40°C to 85°C.
- Wire-to-board connector system optimized for high-density harness assemblies.
- Manufactured in Japan, assuring quality and precision engineering.
Product Description
Molex 53048-0810 PicoBlade Series Right Angle Through Hole PCB Header is an advanced electronic component designed for compact and secure PCB wire-to-board connectivity. It features 8 male contacts arranged in a single row with a fine 1.25 mm pitch, making it ideal for applications requiring dense component placement.
The connector housing is made from durable nylon material and is shrouded to protect the contacts and provide a robust friction locking mechanism that ensures reliable mating retention, reducing accidental unmating caused by vibration or handling.
This model is suitable for through-hole mounting with a tail pin length of 2.3 mm, providing excellent mechanical stability and ease of soldering. The phosphor bronze contacts are plated with tin to guarantee low resistance and long-lasting corrosion protection.
Operating reliably in temperature extremes from -40°C to +85°C, this PCB Header is designed for demanding environments such as automotive alarms, consumer electronics, audiovisual devices, control panels, and industrial process controls.
The 1 A current per contact and 125 V voltage rating support low-power signal and control applications while saving up to 45% of PCB space compared to traditional 2.00 mm pitch connectors.
1 A current capacity in a compact 1.25 mm pitch design. Right Angle orientation for optimized PCB layout in confined spaces. Shrouded housing with locking features for secure connection. Phosphor bronze contacts with tin plating for superior conductivity.
Wide temperature range operation from -40°C to 85°C. Through-hole solder termination for robust mounting. Applications include automotive systems, medical monitors, consumer electronics, and industrial controls.
Manufactured in Japan, this connector assures high quality and durability for industrial and commercial use. Explore more connectors and PCB components in the Electronics & Electricals category at EnvMart for superior system integration solutions.
