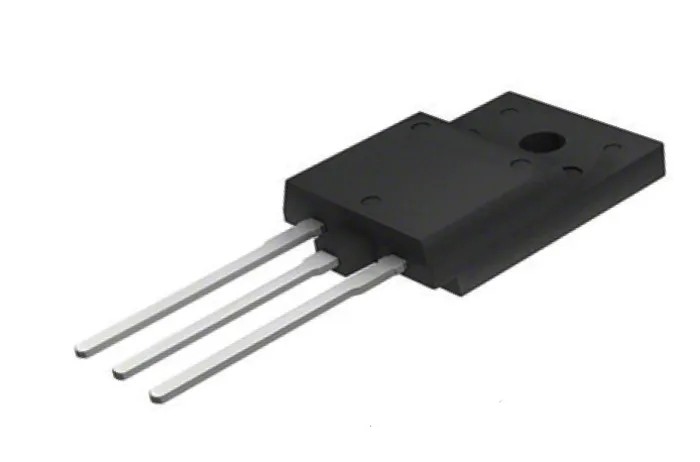

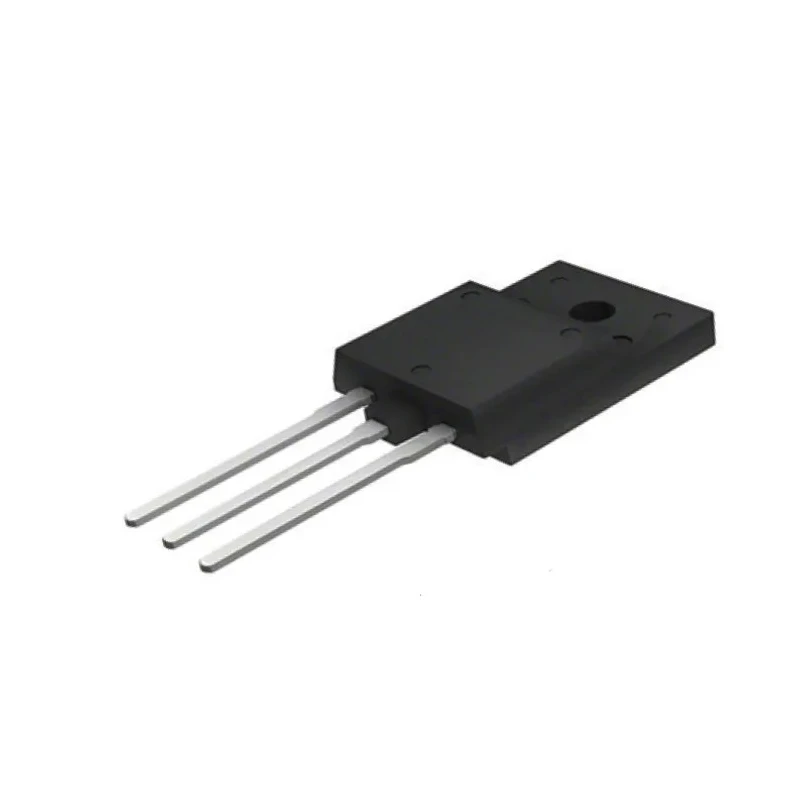

Vishay 600 V 30 A Surface Mount General Purpose Rectifier & Schottky Diode TO-3PF VS-AZH3106FP-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-AZH3106FP-M3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-3PF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Common Anode |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 1.4V |
Key Features
- Maximum continuous forward current rated at 30 A for robust performance.
- Peak reverse repetitive voltage capacity of 600 V ensures voltage tolerance.
- Low forward voltage drop of 1.4 V reduces power losses.
- Supports operating temperatures from -55°C to 175°C for versatility.
- High peak non-repetitive forward surge current of 280 A withstands transient loads.
- Compliance with RoHS and automotive standard AEC-Q101 guarantees quality and reliability.
- Constructed with a fully isolated TO-3PF package to ensure safe operation at 2500 VRMS isolation voltage.
- Engineered with hyperfast soft recovery time to minimize switching losses.
Product Description
Vishay VS-AZH3106FP-M3 Rectifier & Schottky Diode offers 600 V peak reverse voltage and 30 A maximum continuous forward current in a robust surface mount TO-3PF package. Ideal for use in power factor correction (PFC) boost stages, AC/DC sections of switch mode power supplies, inverters such as air conditioning units, high frequency welding equipment, UPS systems, and motor drives.
This device incorporates a hyperfast soft recovery mechanism and low forward voltage drop (1.4 V), which leads to reduced switching losses and increased energy efficiency. Operating junction temperature can reach up to 175 °C, supported by a fully isolated package providing a VINS of 2500 VRMS, ensuring safe and reliable operation under demanding industrial conditions.
The planar structure with platinum doped lifetime control enhances ruggedness, overall performance, and device reliability. It features low leakage current and is qualified under stringent automotive standards (AEC-Q101), making it suitable for automotive and industrial applications.
Maximum continuous forward current: 30 A. Peak reverse repetitive voltage: 600 V. Forward voltage drop: 1.4 V. Operating temperature range: -55°C to 175°C. Peak surge current: 280 A. RoHS compliant and AEC-Q101 certified.
Fully isolated TO-3PF package with 2500 VRMS isolation voltage. Hyperfast recovery diode with optimized stored charge.
This rectifier diode is essential for improving efficiency and longevity in various electrical and industrial applications, including laboratory power supplies, manufacturing equipment, HVAC controls, and renewable energy inverters.
Explore more semiconductor components at EnvMart to enhance your electronic design and build robust systems.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is rated at 30 A.
This rectifier has a peak reverse repetitive voltage capacity of 600 V.
The forward voltage drop for this diode is 1.4 V, which helps reduce power losses.
It supports an operating temperature range from -55°C to 175°C.
The peak non-repetitive forward surge current for this model is 280 A.
This diode is constructed in a fully isolated TO-3PF package.
Yes, it is RoHS compliant and meets the automotive standard AEC-Q101.
The diode configuration for this model is a common anode.
It belongs to the FRED Pt series.
It is suitable for applications such as power factor correction, AC/DC sections of switch mode power supplies, and inverters.
The isolation voltage rating for this diode is 2500 VRMS.
The country of origin for this diode is India.
